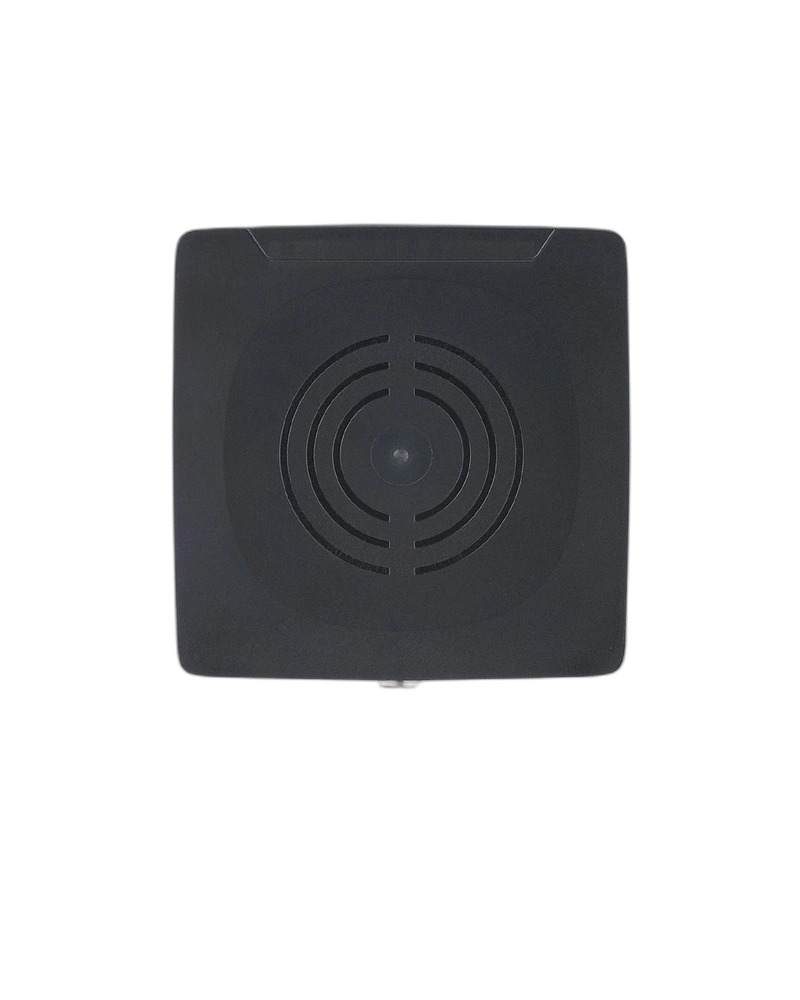

DTI901 is an IFM UHF RFID compact unit designed for reliable long-range identification in industrial automation. It operates in the 902–928 MHz range and supports EPC Class 1 Gen2 / ISO 18000-63 RFID technology. IO-Link communication enables integration with industrial automation systems for tracking, logistics and production identification.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The DTI901 provides UHF RFID identification for automated industrial applications. It is designed to detect tagged objects on transport equipment and can communicate identification information to automation systems. Its compact construction supports flexible installation in machinery and conveyor environments.
The device operates in the 902–928 MHz UHF band and supports EPC Class 1 Gen2 / ISO 18000-63. UHF technology enables long-distance identification of compatible RFID tags. IO-Link COM3 communication provides high-speed data exchange with compatible industrial masters.
The DTI901 is designed for automated object detection on transport systems. It supports transmission power up to 410 mW and provides a compact industrial housing. LED indicators help operators monitor device status and RFID communication during operation.
The DTI901 is suitable for applications requiring long-range UHF identification and industrial connectivity. Its IO-Link interface, compact housing and UHF RFID technology make it useful for production logistics, conveyor tracking and automated material identification.
UHF RFID compact unit
902–928 MHz operating frequency
EPC Class 1 Gen2 support
ISO 18000-63 standard
IO-Link COM3
IO-Link revision 1.1
Up to 410 mW transmission power
M12 connection
LED operating status
Industrial RFID identification
Long-range product identification
Conveyor systems
Production logistics
Material tracking
Automated warehousing
Carrier identification
Product traceability
Industrial automation
Manufacturing logistics
Transport equipment
| Specification | Details |
|---|---|
| Product code | DTI901 |
| Model | DTRUHFA HLRWIOUS04 |
| Operating voltage | 18…30 V DC |
| Current consumption | <250 mA |
| Power consumption | 4.8 W |
| Frequency | 902…928 MHz |
| RFID standard | EPC Class 1 Gen2 / ISO 18000-63 |
| Transmission power | Maximum 410 mW EIRP |
| Communication | IO-Link COM3 |
| IO-Link revision | 1.1 |
| Protection | IP67 |
| Ambient temperature | -20…60 °C |
| Connection | M12 |
