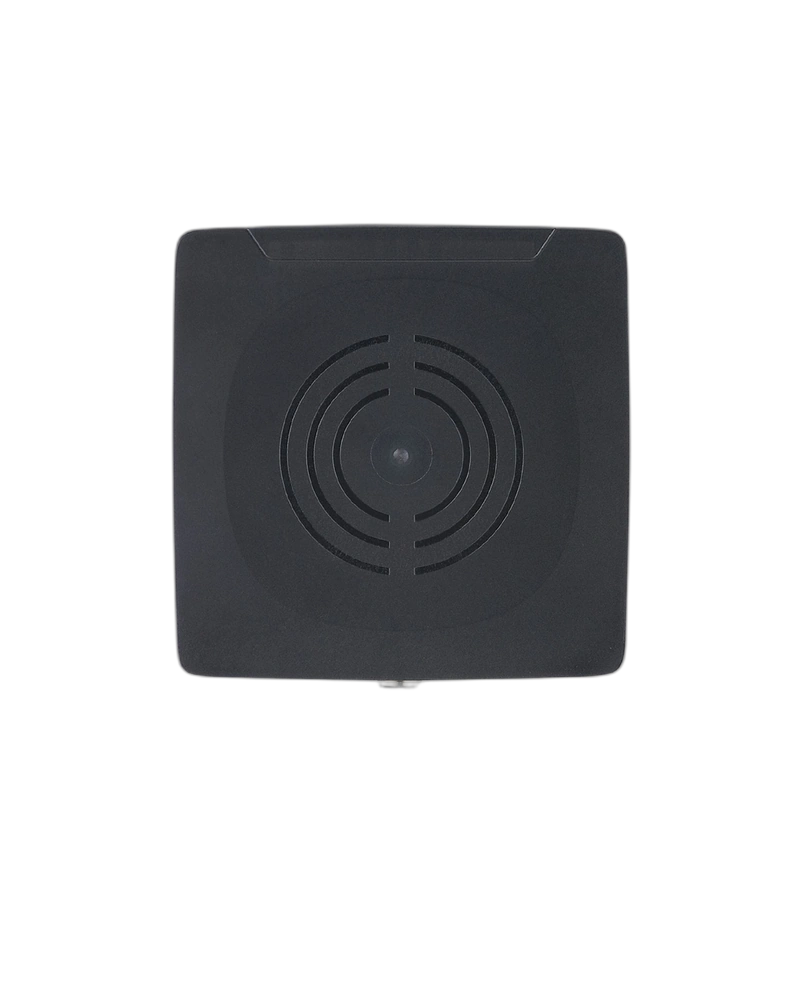

DTI600 is an IFM HF RFID read/write head designed for long-distance object identification on automated transport systems. It operates at 13.56 MHz and supports ISO 15693 RFID technology with IO-Link communication. Its large sensing area and extended read/write distance make it suitable for conveyor, logistics and material-tracking applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The DTI600 is designed for RFID identification where a larger detection area and longer operating distance are beneficial. It can recognize tagged objects on conveyors and transport systems without physical contact. Its robust construction supports integration into industrial automation equipment.
The DTI600 uses 13.56 MHz HF RFID technology and ISO 15693. It provides contactless communication with compatible RFID tags and allows automation systems to identify products and carriers. IO-Link communication supports integration with industrial masters and control systems.
The device provides an extended read/write-head distance compared with compact RFID heads. It is particularly suitable for transport systems where objects may pass at varying positions. The 113 x 120 x 50 mm housing provides a large active area for industrial RFID identification.
The DTI600 is a strong solution for applications requiring larger RFID detection areas. It can simplify identification of objects on conveyors and transport systems while supporting centralized automation communication. Its industrial construction makes it suitable for continuous production and logistics environments.
HF RFID read/write head
13.56 MHz operating frequency
ISO 15693 standard
IO-Link 1.1
Large sensing area
400 mm front distance
600 mm side distance
113 x 120 x 50 mm dimensions
M12 connection
Industrial object identification
Conveyor systems
Transport equipment
Production logistics
Material handling
Workpiece tracking
Product identification
Carrier tracking
Automated warehousing
Manufacturing logistics
Industrial RFID systems
| Specification | Details |
|---|---|
| Product code | DTI600 |
| Model | DTRHF HLRWIOUS03 |
| Operating voltage | 19.2…28.8 V DC |
| Current consumption | <150 mA |
| Frequency | 13.56 MHz |
| RFID standard | ISO 15693 |
| Front distance | 400 mm |
| Side distance | 600 mm |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Housing dimensions | 113 x 120 x 50 mm |
| Connection | M12 |
| Protection | Industrial IP-rated construction |
