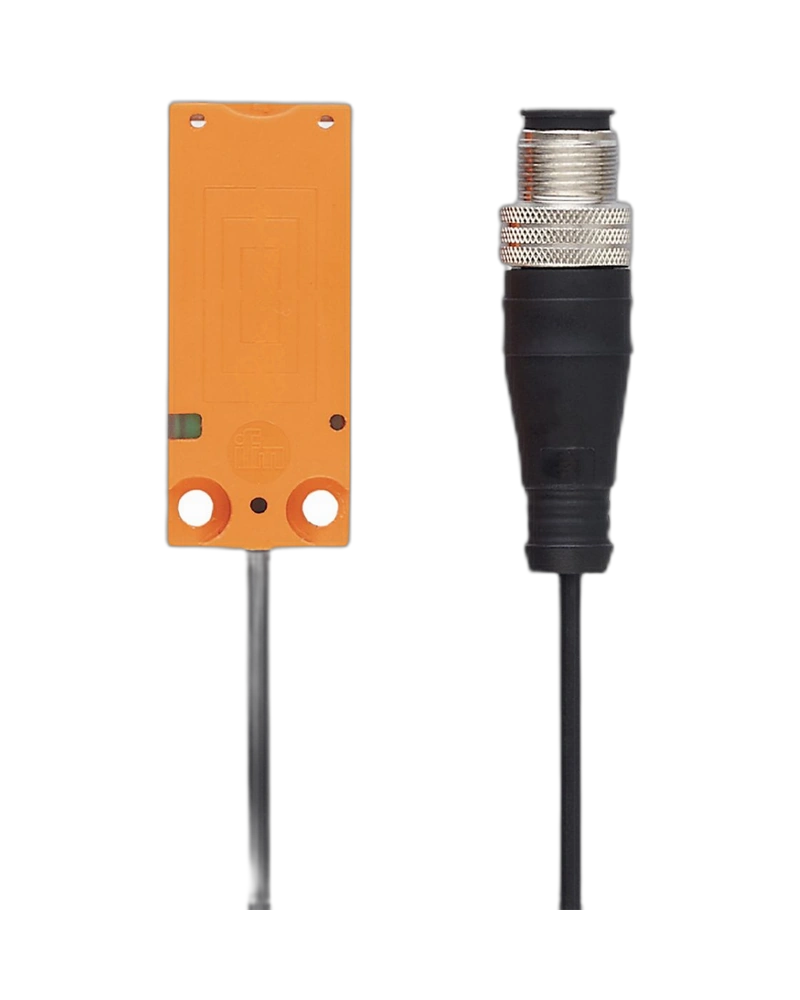

DTI515 is an IFM HF RFID read/write head designed for reliable object identification in industrial transport and automation equipment. It operates at 13.56 MHz using ISO 15693 technology and communicates through IO-Link. Its compact industrial design supports automated product tracking, material handling and traceability applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The DTI515 provides contactless RFID identification for automated production environments. It is designed to recognize tagged products, carriers and components while they move through transport equipment. Its compact construction allows convenient installation in industrial machines and automation systems.
The device supports HF RFID operation at 13.56 MHz and uses ISO 15693 technology. RFID enables automatic identification and data communication without physical contact. The IO-Link interface allows integration with compatible masters and provides standardized access to device information.
The DTI515 is designed for object detection on transport equipment. It provides a 170 mm detection range under specified conditions and supports front and side read/write-head distances. Its IP67/IP69K protection and industrial materials make it suitable for demanding automation applications.
The DTI515 offers a compact and robust RFID solution for automated identification. Its standardized IO-Link communication, industrial protection and clear status indication simplify integration and monitoring. It can help manufacturers improve traceability, process visibility and production efficiency.
HF RFID read/write head
13.56 MHz frequency
ISO 15693 RFID standard
IO-Link 1.1
COM2 communication
170 mm detection range
IP67/IP69K protection
Compact industrial housing
Green and yellow LED indicators
M12 connection
Production tracking
Conveyor systems
Material handling
Workpiece identification
Assembly automation
Carrier identification
Product traceability
Automated logistics
Manufacturing equipment
Transport systems
| Specification | Details |
|---|---|
| Product code | DTI515 |
| Model | DTRHF KQRWIOUS03 |
| Operating voltage | 18…30 V DC |
| Current consumption | <60 mA |
| Frequency | 13.56 MHz |
| RFID standard | ISO 15693 |
| Detection range | 170 mm |
| Front distance | 160 mm |
| Side distance | ≤32 mm |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Process cycle | 22 ms |
| Protection | IP67 / IP69K |
| Dimensions | 20 x 7 x 48 mm |
