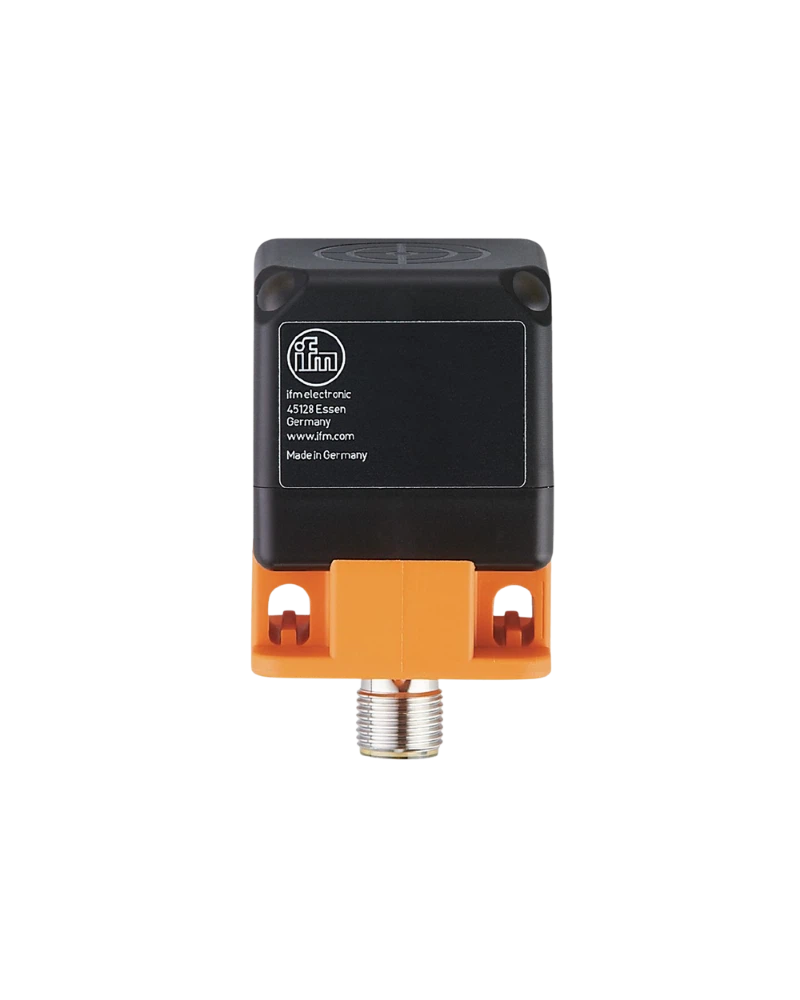

DTI513 is an IFM HF RFID read/write head designed for compact industrial identification applications. It operates at 13.56 MHz with ISO 15693 RFID technology and provides IO-Link communication. Its compact 40 mm housing, M12 connection and IP67/IP69K protection make it suitable for automated transport, production and material-tracking systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The DTI513 is a compact HF RFID read/write head developed for industrial automation. It provides contactless identification of RFID-tagged objects and supports automated data exchange. Its compact housing allows installation in machinery where available mounting space is limited.
The device uses 13.56 MHz HF RFID communication and ISO 15693 technology. It can communicate with suitable RFID tags for object identification and tracking. IO-Link provides a standardized interface for connecting the device to compatible automation masters and control systems.
The DTI513 is intended for detecting objects on transport equipment. Its 40 x 40 x 54 mm housing and M12 connection allow straightforward machine integration. IP67 and IP69K protection make it appropriate for industrial environments where equipment may experience dust, moisture and cleaning conditions.
The DTI513 provides a compact combination of HF RFID identification and IO-Link connectivity. Its robust construction, clear LED indication and industrial protection make it suitable for reliable automated identification. It is a strong choice for production lines requiring compact RFID sensing points.
13.56 MHz operating frequency
ISO 15693 RFID standard
IO-Link 1.1
COM2 communication
40 x 40 x 54 mm dimensions
M12 A-coded connector
IP67 protection
IP69K protection
Green and yellow LED indication
Industrial PA and stainless-steel construction
Object identification
Conveyor systems
Transport equipment
Production automation
Workpiece tracking
Material handling
Product traceability
Assembly automation
Industrial logistics
RFID identification stations
| Specification | Details |
|---|---|
| Product code | DTI513 |
| Model | DTRHF MCRWIOUS03 |
| Operating voltage | 19.2…28.8 V DC |
| Current consumption | <50 mA |
| Frequency | 13.56 MHz |
| RFID standard | ISO 15693 |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Minimum process cycle | 22 ms |
| Dimensions | 40 x 40 x 54 mm |
| Protection | IP67 / IP69K |
| Ambient temperature | -20…60 °C |
| Connection | M12 |
| Weight | Approx. 175.55 g |
