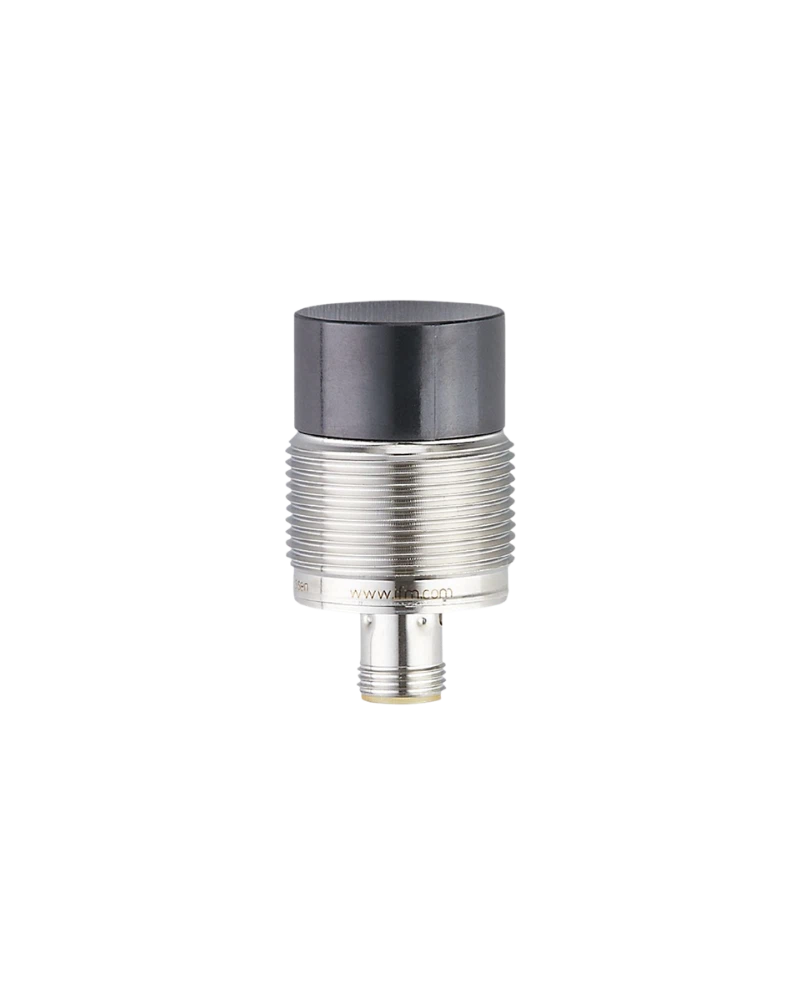

DTI431 is an IFM HF RFID read/write head for automated object identification and traceability. It operates at 13.56 MHz using ISO 15693 RFID technology and provides IO-Link communication for integration with industrial automation systems. Its threaded construction and industrial protection make it suitable for conveyor, transport and production applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The DTI431 is designed for reliable RFID identification in industrial automation environments. It enables contactless communication with compatible RFID tags and can identify products or carriers as they move through automated equipment. The device supports integration into modern sensor and control architectures.
The DTI431 uses 13.56 MHz HF RFID technology and ISO 15693 communication. Its read/write functionality allows RFID tag information to be exchanged without physical contact. This supports automated identification, tracking and data collection while reducing dependence on manual product identification.
The device is intended for object detection on transport equipment and can be installed at defined RFID identification points. IO-Link communication provides standardized connectivity with compatible masters. The robust sensor design, M12 connection and industrial protection make the DTI431 suitable for production and material-handling environments.
The DTI431 provides a compact industrial solution for RFID-based identification. Its threaded mounting design simplifies installation, while the IO-Link interface supports integration into automation systems. The device is suitable for applications requiring consistent tag detection, product traceability and automated process information.
HF RFID read/write head
13.56 MHz operating frequency
ISO 15693 standard
IO-Link 1.1
COM2 communication
M30 x 1.5 threaded design
M12 connection
IP67/IP69K protection
LED status indication
160 mm front read/write-head distance
Conveyor tracking
Production automation
Workpiece identification
Transport equipment
Material handling
Product traceability
Assembly systems
Automated logistics
Carrier identification
Industrial RFID control
| Specification | Details |
|---|---|
| Product code | DTI431 |
| Model | DTRHF INRWIOUS03 |
| Operating voltage | 19.2…28.8 V DC |
| Current consumption | <50 mA |
| Frequency | 13.56 MHz |
| RFID standard | ISO 15693 |
| Front distance | 160 mm |
| Side distance | 120 mm |
| Tag distance | ≤45 mm, specified reference tag |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Process cycle time | 22 ms |
| Protection | IP67 / IP69K |
| Connection | M12 |
| Thread | M30 x 1.5 |
