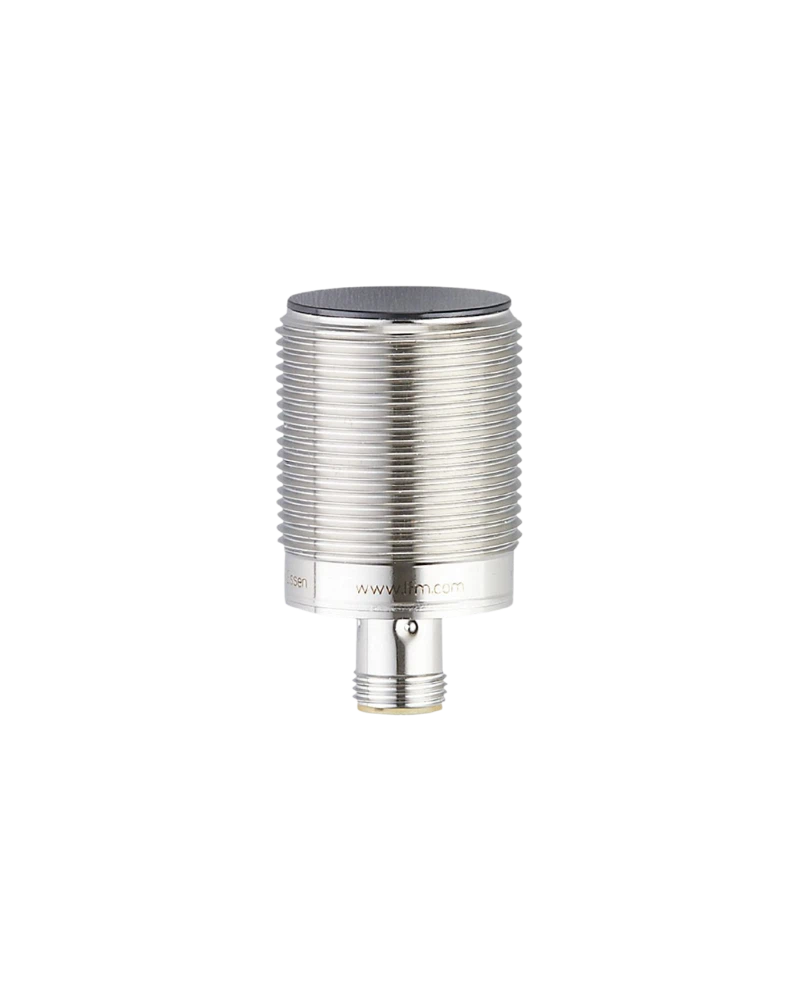

DTI430 is an IFM HF RFID read/write head designed for dependable contactless identification in industrial automation. It supports RFID-based object tracking and product recognition in transport equipment, production systems and material-handling applications. Its rugged construction and industrial communication capability make it suitable for continuous automated identification tasks.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The DTI430 is intended for industrial RFID identification applications where reliable communication with HF tags is required. It provides contactless identification of objects and carriers, allowing automation systems to collect product information without physical contact. The device can be integrated into production and transport equipment.
The device operates using HF RFID technology at 13.56 MHz and supports ISO 15693-based identification. RFID communication enables automated reading and writing of tag information, supporting efficient product tracking and process control. This approach is especially useful where products continuously pass through identification stations.
The DTI430 is designed for use on transport equipment and automated production systems. Its industrial housing supports demanding operating conditions, while the M12 connection simplifies integration into control and sensor networks. The device can provide reliable identification for production logistics, conveyor systems and automated handling.
The DTI430 combines contactless RFID communication with an industrial sensor construction. Its flush-mountable threaded design helps simplify mechanical installation. The device is suitable for manufacturers looking to improve traceability, reduce manual identification and integrate RFID data into automated production processes.
HF RFID read/write technology
13.56 MHz operating frequency
ISO 15693 RFID standard
IO-Link communication
IO-Link 1.1 capability
M30 threaded housing
Flush mounting design
M12 connection
IP67/IP69K protection
LED operating and tag communication indication
Automated transport systems
Conveyor systems
Production tracking
Workpiece identification
Material handling
Assembly automation
Product traceability
Manufacturing logistics
Carrier identification
Industrial RFID installations
| Specification | Details |
|---|---|
| Product code | DTI430 |
| Model | DTRHF IBRWIOUS03 |
| Product type | RFID read/write head HF |
| Brand | IFM |
| Operating frequency | 13.56 MHz |
| RFID standard | ISO 15693 |
| Operating voltage | 19.2…28.8 V DC |
| Protection | IP67 / IP69K |
| Housing | Stainless steel |
| Mounting | Flush mountable |
| Thread | M30 x 1.5 |
| Connection | M12, A-coded |
| Communication | IO-Link 1.1 |
