The IFM ANT515 is a compact HF RFID read/write head designed for reliable tag identification in industrial automation. Its rectangular 20 × 7 × 48 mm housing, M12 A-coded connector and integrated LED indicators support practical machine integration. The unit is suitable for automated product identification, workpiece tracking and traceability applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The ANT515 is an HF RFID read/write head designed for compact industrial identification applications. It enables automated communication with compatible RFID tags and can be integrated into production and material handling equipment.

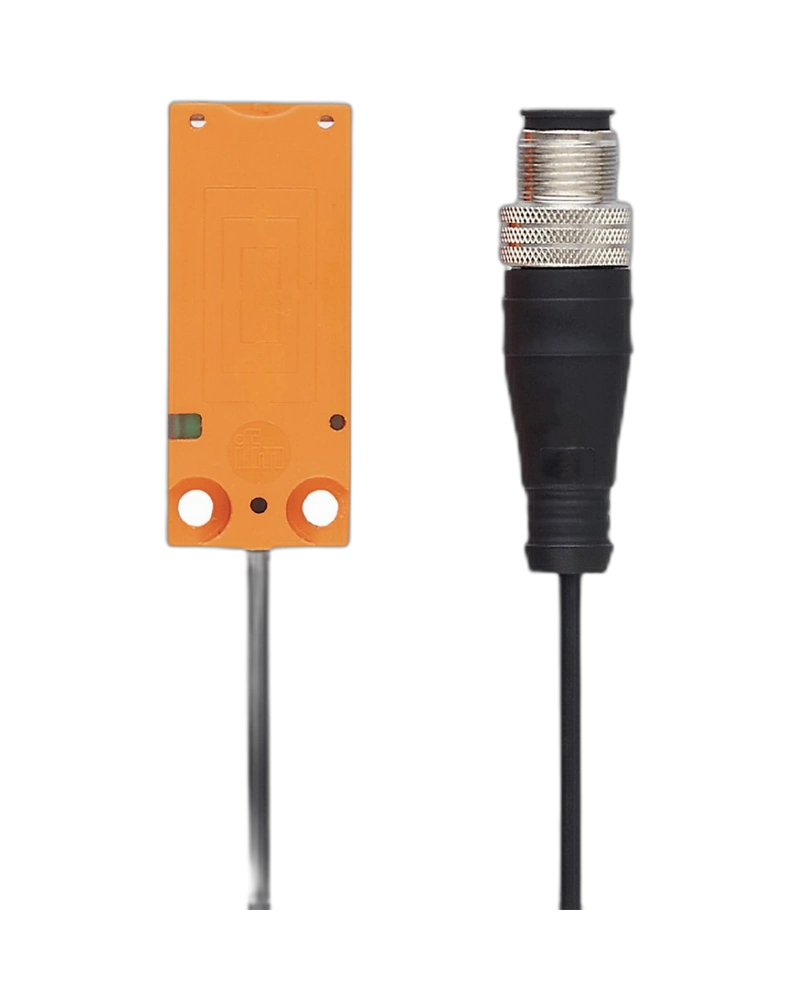

The ANT515 features a compact rectangular housing and a 1 m PUR cable terminated with an M12 A-coded connector. Green and yellow LEDs provide operating and tag-communication indication. Its compact dimensions make it useful where installation space is limited.
HF RFID read/write technology
Compact rectangular housing
20 × 7 × 48 mm dimensions
M12 A-coded connector
1 m PUR cable
Green operating LED
Yellow tag communication LED
PBT, TPE-U and stainless-steel materials
Suitable for compact machine integration
Industrial RFID identification
Compact RFID identification stations
Product tracking
Workpiece identification
Assembly automation
Material handling
Production traceability
Machine-integrated RFID
Automated logistics
| Specification | Details |
|---|---|
| Product code | ANT515 |
| Product type | RFID read/write head HF |
| Model | DTRHF KQRWIDUS03- |
| Housing | Rectangular |
| Mounting | Non-flush mountable |
| Dimensions | 20 × 7 × 48 mm |
| Weight | 80 g |
| Materials | PBT; TPE-U; stainless steel |
| Cable | 1 m PUR, 3 × 0.14 mm² |
| Connector | 1 × M12, A-coded |
| Indicators | Green operation LED; yellow tag LED |
| Ambient temperature | -20...60 °C |
| Brand | IFM |
