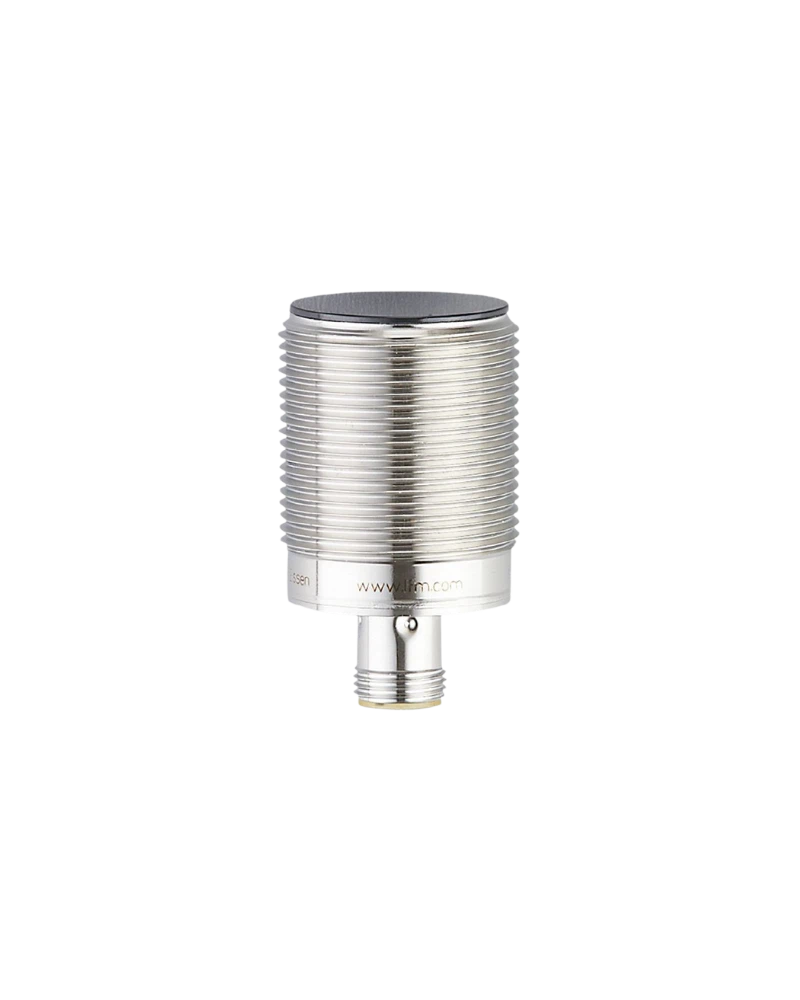

The IFM ANT430 is an HF RFID read/write head with a robust M30 stainless-steel housing for industrial identification. It is designed for flush mounting and provides reliable communication with RFID tags through an M12 connection to compatible evaluation units. The unit is suitable for production, handling and traceability applications in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The ANT430 provides reliable HF RFID identification for automated industrial applications. Its robust stainless-steel construction and M30 threaded format make it suitable for direct integration into machinery used for production, handling and identification.
The ANT430 operates at HF RFID frequency and communicates with compatible RFID tags through the associated evaluation unit. It features a flush-mountable M30 x 1.5 housing, green operating LED and yellow tag-communication LED. The M12 A-coded connector provides the electrical interface.
HF RFID read/write head
M30 x 1.5 threaded housing
Flush-mountable design
Stainless-steel housing
PPS protective cover
M12 A-coded connection
Green operation LED
Yellow tag communication LED
Compact 50 mm length
Designed for industrial identification
Automated product identification
Workpiece carrier tracking
Assembly technology
Feeding technology
Handling systems
Production traceability
Machine-integrated RFID
Industrial logistics
| Specification | Details |
|---|---|
| Product code | ANT430 |
| Product type | RFID read/write head HF |
| Model | DTRHF IBRWIDUS03 |
| Operating frequency | 13.56 MHz |
| RFID standard | ISO 15693 |
| Housing | Stainless steel |
| Dimensions | M30 x 1.5 / L = 50 mm |
| Mounting | Flush mountable |
| Connection | 1 x M12, A-coded |
| Indicators | Green operation LED, yellow tag LED |
| Brand | IFM |
