The operating voltage is 15 - 30 VDC, with load current of ≤ 10 mA. No-load supply current is ≤ 12 mA.
Maximum ripple is ≤20%. Short-circuit protection is Yes. Reverse polarity protection is Yes.
Ingress protection is rated IP 67.
Dimensions are M12 x 1 / L = 60 mm and the connection is M12 Connector. Weight is 33 g.
Tightening torque is 10 nm.
The operating temperature range is -25 °C…+70 °C.

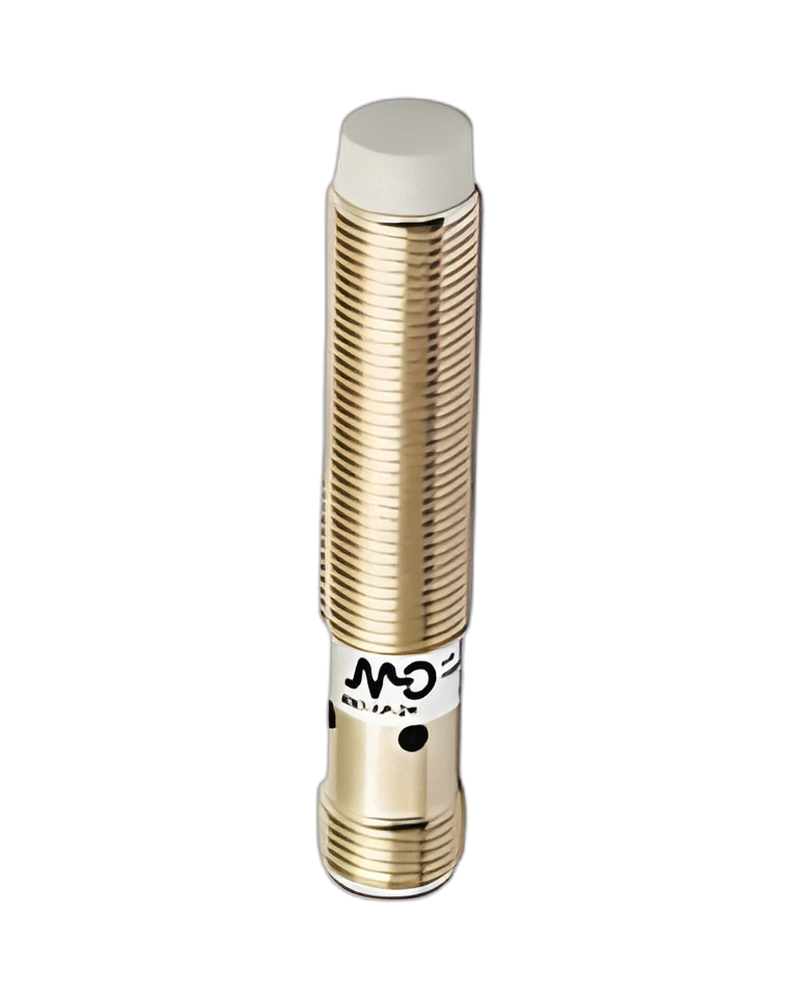

The manufacturer part number is AM1/D2-5H. This model is manufactured by M.D. Micro Detectors. Time to availability is ≤50 ms.
For electrical integration, it provides operating voltage 15 - 30 VDC. The physical configuration includes dimensions M12 x 1 / L = 60 mm, M12 Connector connection. It is rated IP 67 for an operating temperature range of -25 °C…+70 °C.
| Specification | Details |
|---|---|
| Model | AM1/D2-5H |
| Manufacturer part number | AM1/D2-5H |
| Manufacturer | M.D. Micro Detectors |
| Weight | 33 g |
| Active head material | PBT |
| Tightening torque | 10 nm |
| Operating temperature | -25 °C…+70 °C |
| Dimensions | M12 x 1 / L = 60 mm |
| Connection | M12 Connector |
| Operating distance | 0…6 mm |
| Standard target | 18x18 mm FE360 |
| Thermal drift Sr | ±5% (0…+70 ° |
| Degree of protection | IP 67 |
| Time to availability | ≤50 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | ≤20% |
| Operating voltage | 15 - 30 VDC |
| Load current | ≤ 10 mA |
| No-load supply current | ≤ 12 mA |
