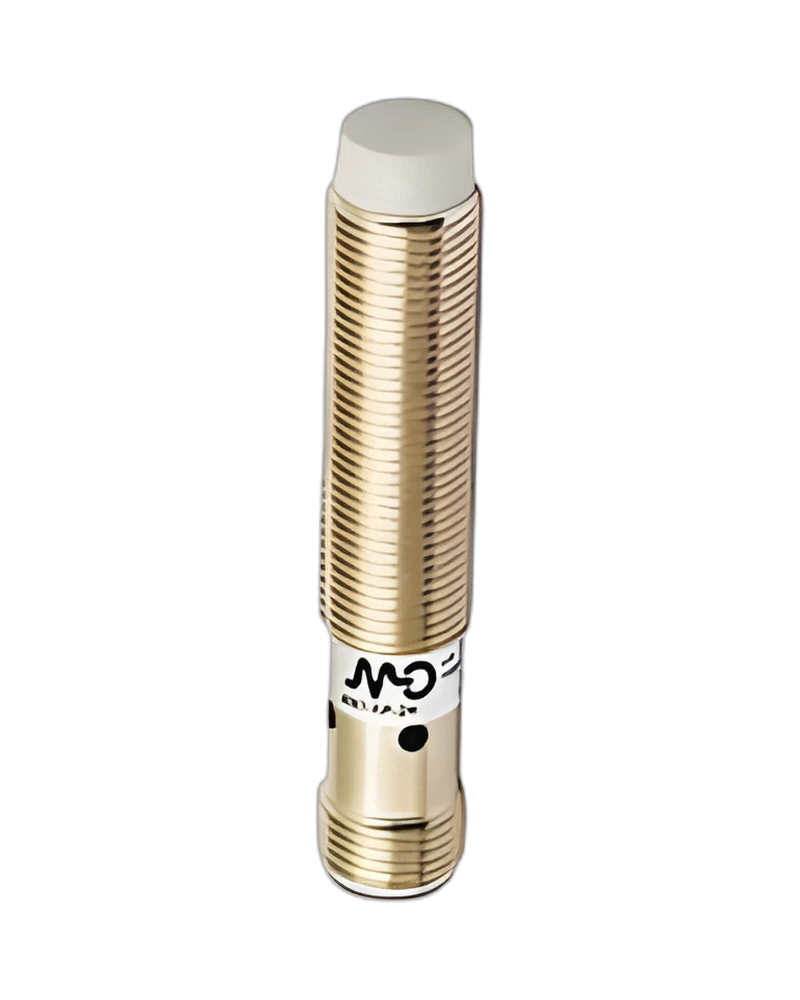

AK6/D2-5H is an m18 analogue inductive sensor for metal-target detection. The specified operating range or reference distance is 0…10 mm. The supply is 10…30 VDC. The connection is M12 plug. The housing is Nickel-plated brass, partially shielded.
The operating range is 0…10 mm. The resolution is ≤2 µm.
The specified value of 0…10 mm gives the reference distance or measurement envelope for the device.
The supply is 10…30 VDC.
The supply of 10…30 VDC defines the required operating voltage.
The housing is Nickel-plated brass, partially shielded. The connection is M12 plug. Protection is rated IP67. The operating temperature range is -25…+70 °C.
The Nickel-plated brass, partially shielded housing provides the specified mechanical format. The M12 plug connection provides the stated physical interface. Protection is rated IP67.
The sensor type is M18 analogue inductive sensor. The operating range is 0…10 mm. The target is FE360, 30 x 30 mm. The output is 0…10 V + 4…20 mA. The repeatability is 0.3 mm. The resolution is ≤2 µm. The supply is 10…30 VDC. The load is 10 mA max. Protection is rated IP67. The connection is M12 plug.
AK6/D2-5H combines the m18 analogue inductive sensor characteristics given in the product specification. The sensor type is M18 analogue inductive sensor. The operating range is 0…10 mm. The supply is 10…30 VDC. The connection is M12 plug. The housing is Nickel-plated brass, partially shielded. Protection is rated IP67. These technical values describe the sensing, electrical and mechanical properties of AK6/D2-5H.
| Specification | Value |
|---|---|
| Model | AK6/D2-5H |
| Sensor type | M18 analogue inductive sensor |
| Sensing range | 0…10 mm |
| Operating range | 0…10 mm |
| Target | FE360, 30 x 30 mm |
| Outputs | 0…10 V + 4…20 mA |
| Repeatability | 0.3 mm |
| Resolution | ≤2 µm |
| Supply | 10…30 VDC |
| Load | 10 mA max. |
| Protection | IP67 |
| Connection | M12 plug |
| Housing | Nickel-plated brass, partially shielded |
| Temperature | -25…+70 °C |
