The operating voltage is 15 - 30 VDC, with load current of ≤ 10 mA. No-load supply current is ≤ 12 mA.
Maximum ripple is ≤20%. Short-circuit protection is Yes. Reverse polarity protection is Yes.
Ingress protection is rated IP 67.
Dimensions are M18 x 1 / L = 36 mm. Weight is 116 g.
Tightening torque is 25 nm.
The operating temperature range is -25 °C…+70 °C.

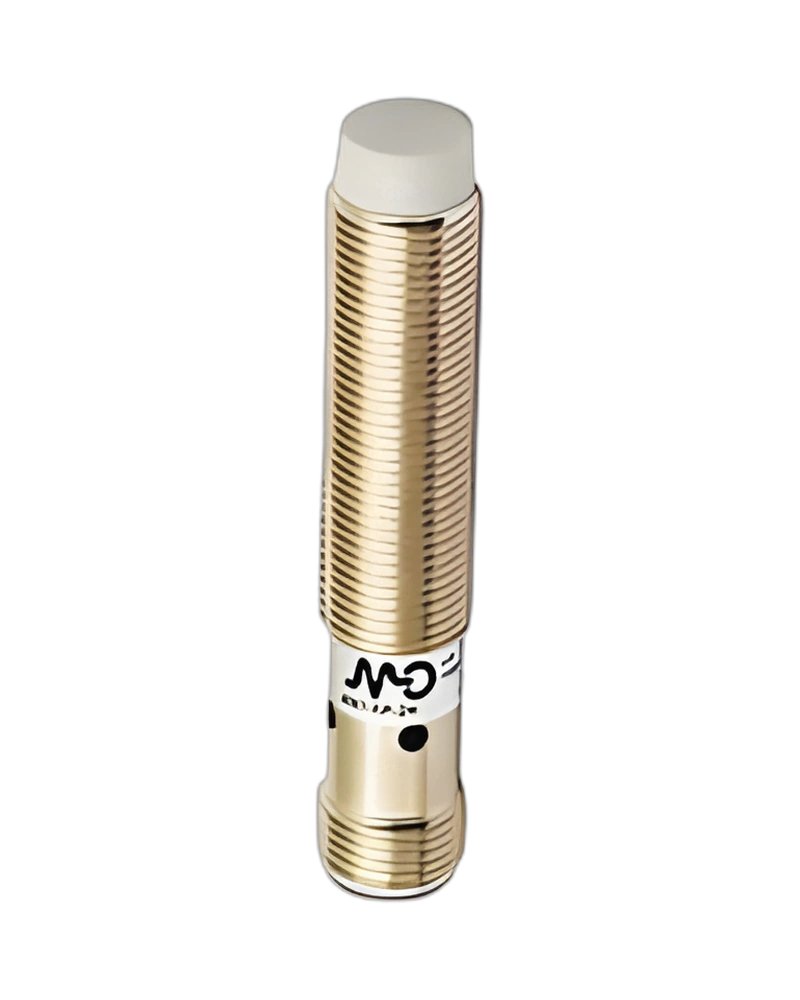

The manufacturer part number is AK6/D2-5A. This model is manufactured by M.D. Micro Detectors. Time to availability is ≤50 ms.
| Specification | Details |
|---|---|
| Model | AK6/D2-5A |
| Manufacturer part number | AK6/D2-5A |
| Manufacturer | M.D. Micro Detectors |
| Weight | 116 g |
| Active head material | PBT |
| Tightening torque | 25 nm |
| Operating temperature | -25 °C…+70 °C |
| Dimensions | M18 x 1 / L = 36 mm |
| Operating distance | 0…10 mm |
| Standard target | 30x30 mm FE360 |
| Thermal drift Sr | ≤ 10% |
| Degree of protection | IP 67 |
| Time to availability | ≤50 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | ≤20% |
| Operating voltage | 15 - 30 VDC |
| Load current | ≤ 10 mA |
| No-load supply current | ≤ 12 mA |
