The operating voltage is 15 - 30 VDC, with load current of ≤ 10 mA. No-load supply current is ≤ 10 mA.
Maximum ripple is ≤20%. Short-circuit protection is Yes. Reverse polarity protection is Yes.
Ingress protection is rated IP 67.
Dimensions are M8 x 1 / L = 45 mm. Weight is 50 g.
Tightening torque is 3 nm.
The operating temperature range is -25 °C…+70 °C.

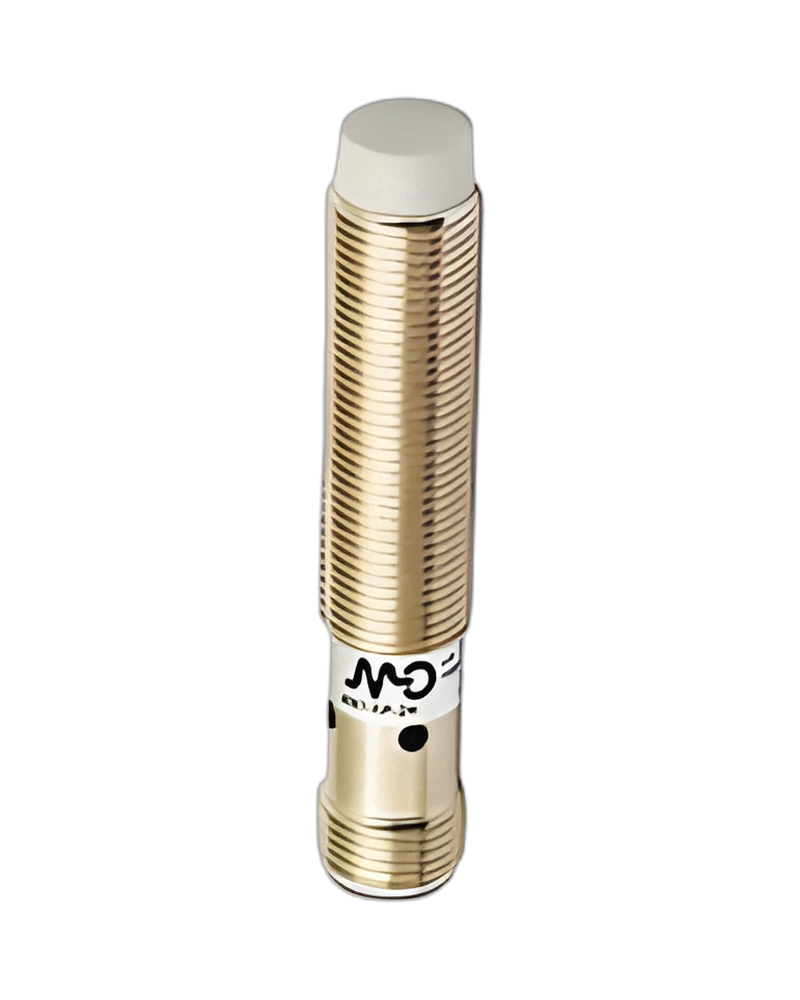

The manufacturer part number is AE1/D1-7A. This model is manufactured by M.D. Micro Detectors. Time to availability is ≤50 ms.
| Specification | Details |
|---|---|
| Model | AE1/D1-7A |
| Manufacturer part number | AE1/D1-7A |
| Manufacturer | M.D. Micro Detectors |
| Weight | 50 g |
| Active head material | PBT |
| Tightening torque | 3 nm |
| Operating temperature | -25 °C…+70 °C |
| Dimensions | M8 x 1 / L = 45 mm |
| Operating distance | 0…4 mm |
| Standard target | 12x12 mm FE360 |
| Thermal drift Sr | ±5% (0…+70 ° |
| Degree of protection | IP 67 |
| Time to availability | ≤50 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | ≤20% |
| Operating voltage | 15 - 30 VDC |
| Load current | ≤ 10 mA |
| No-load supply current | ≤ 10 mA |
