The nominal sensing distance is 1 mm.
The nominal sensing distance is 1 mm. A switching frequency of 3,5 kHz.
The thermal drift Sr is < 10%, with repeat accuracy of 5% (UB 24V Ta=23 °C ±5 °C).
The output type is PNP. The output function is No.
The operating voltage is 10 - 30 VDC, with load current of ≤ 100 mA. No-load supply current is ≤ 10 mA and leakage current is limited to ≤ 10 µA.
Maximum ripple is ≤10%. Inductive load protection is Yes. Short-circuit protection is Yes (Automatic reset). Reverse polarity protection is Yes.
Ingress protection is rated IP 67.

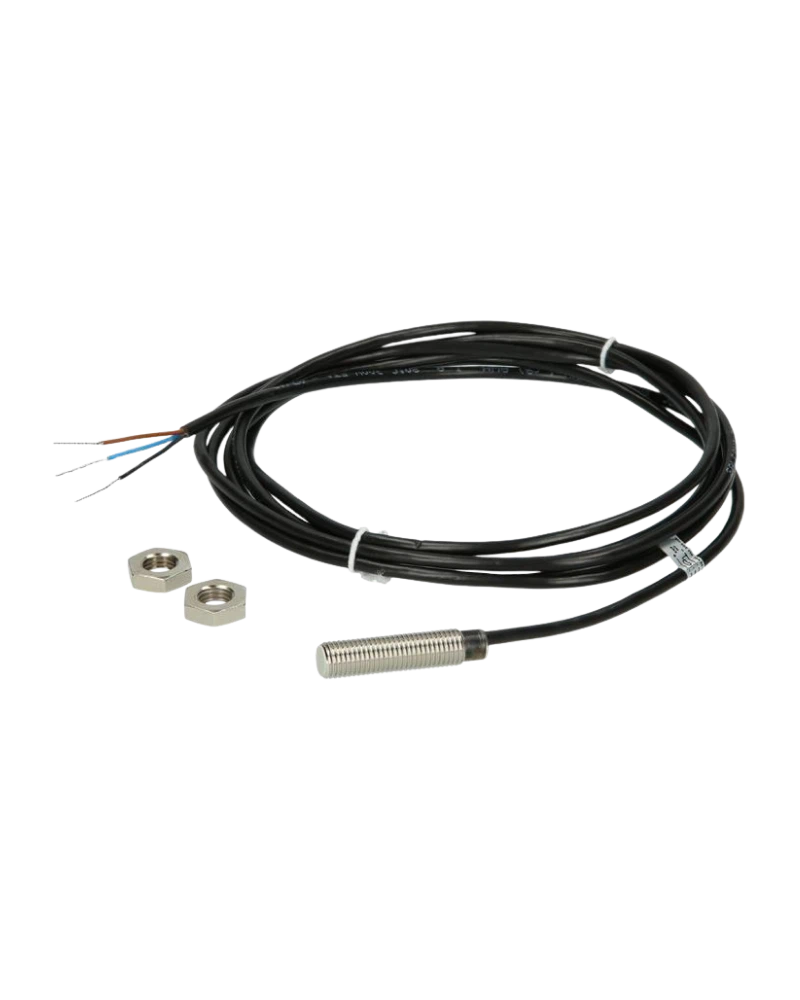

The housing is AISI303 Stainless steel, while the active head uses PBT. Dimensions are Ø3 / L = 22 mm and the connection is 2 m PUR Cable.
Weight is 30 g.
The operating temperature range is -25 °C…+70 °C.
The manufacturer part number is AA1/AP-3A. This model is manufactured by M.D. Micro Detectors. Installation is Shielded.
Shielded is Operating temperature:. Time to availability is ≤ 50 ms.
For electrical integration, it provides output type PNP, operating voltage 10 - 30 VDC, switching frequency 3,5 kHz. The physical configuration includes AISI303 Stainless steel housing, dimensions Ø3 / L = 22 mm, 2 m PUR Cable connection. It is rated IP 67 for an operating temperature range of -25 °C…+70 °C.
| Specification | Details |
|---|---|
| Model | AA1/AP-3A |
| Manufacturer part number | AA1/AP-3A |
| Manufacturer | M.D. Micro Detectors |
| Output type | PNP |
| Output function | No |
| Switching frequency | 3,5 kHz |
| Weight | 30 g |
| Active head material | PBT |
| Housing material | AISI303 Stainless steel |
| Installation | Shielded |
| Operating temperature | -25 °C…+70 °C |
| Dimensions | Ø3 / L = 22 mm |
| Connection | 2 m PUR Cable |
| Hysteresis | 1 … 20% |
| Nominal sensing distance | 1 mm |
| Operating distance | 0…0,81 mm |
| Standard target | 4x4 mm FE360 |
| Thermal drift Sr | < 10% |
| Repeat accuracy | 5% (UB 24V Ta=23 °C ±5 °C) |
| Degree of protection | IP 67 |
| Time to availability | ≤ 50 ms |
| Inductive load protection | Yes |
| Short-circuit protection | Yes (Automatic reset) |
| Reverse polarity protection | Yes |
| Maximum ripple | ≤10% |
| Operating voltage | 10 - 30 VDC |
| Load current | ≤ 100 mA |
| No-load supply current | ≤ 10 mA |
| Leakage current | ≤ 10 µA |
