Explore performance details, construction highlights, applications, and technical information in one clear overview.

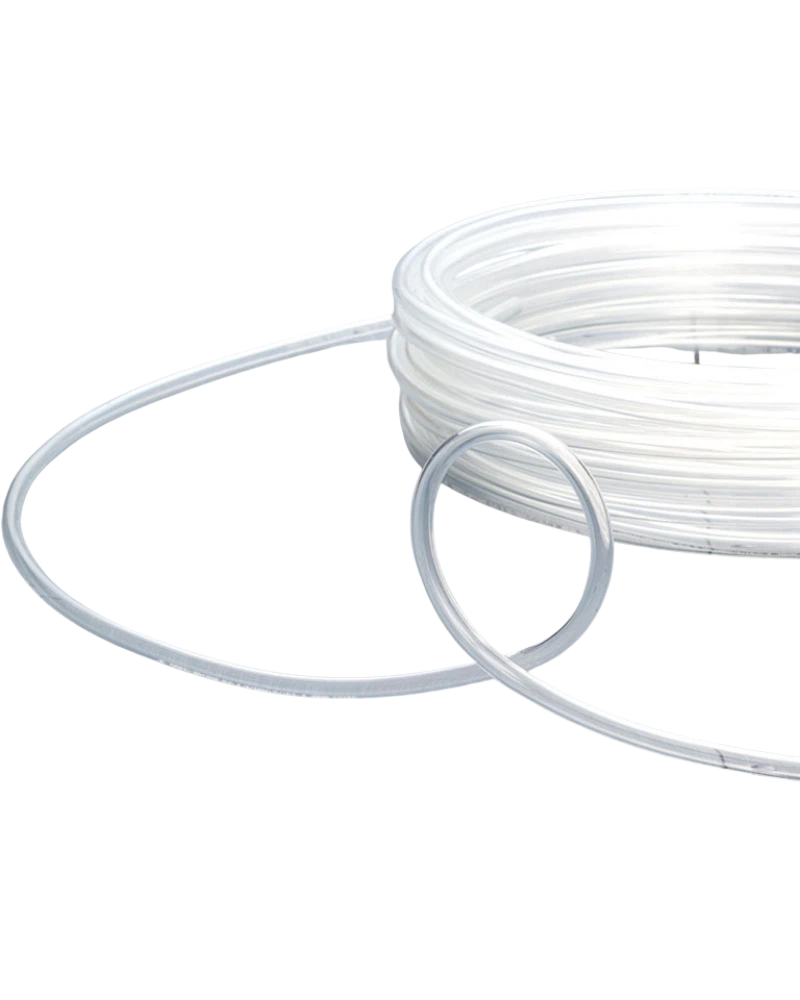

This vacuum tube is specifically designed for use in vacuum suction conveyance systems where components are subject to movement. Its primary purpose is to provide flexible, reliable piping between moving parts, ensuring smooth operation without introducing mechanical stress or resistance to motion.
The tube is constructed from ultra soft polyurethane material, offering exceptional flexibility and durability under dynamic conditions. This construction ensures minimal friction and wear during repeated bending and movement, making it well-suited for environments with high mobility in vacuum piping systems.
The tube features cut marks printed at 500 mm intervals along its length to serve as a visual guide during installation or alignment. These markings are intended solely for reference and do not guarantee precise positioning or accuracy.
The tube is rated for operation with air as the fluid medium, capable of handling a maximum operating pressure of 0.3MPa at 20°C and 65% relative humidity, and a maximum vacuum level of -100kPa. It operates within a temperature range of -15 to 50ºC, ensuring performance under typical ambient conditions without freezing.
Available in one color and five size options, this tube offers flexibility in system design while maintaining consistent performance across different application scales. The exact sizes are not specified in the product data but are available as part of the standard range.
The tube is designed to integrate directly into moving parts of vacuum systems where sliding connections are required. Its low reaction force ensures minimal impact on pneumatic actuators, enabling compact and efficient piping layouts without compromising system performance.
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Max. operating pressure (65%RH at 20ºC) | 0.4MPa *1 |
| Max. vacuum | -100kPa |
| Operating temperature range | -15 to 50ºC (No freezing) |
| Fluid media | Air |
| Max. operating pressure (at 20ºC 65%RH) | 0.3MPa (*1) |
| Available options | Excellent flexibility, ideal for moving parts of vacuum piping. Made of ultra soft polyurethane tubing. Low reaction force on pneumatic equipment at sliding parts, making it ideal for compact piping. Available in 1 color and 5 sizes |
