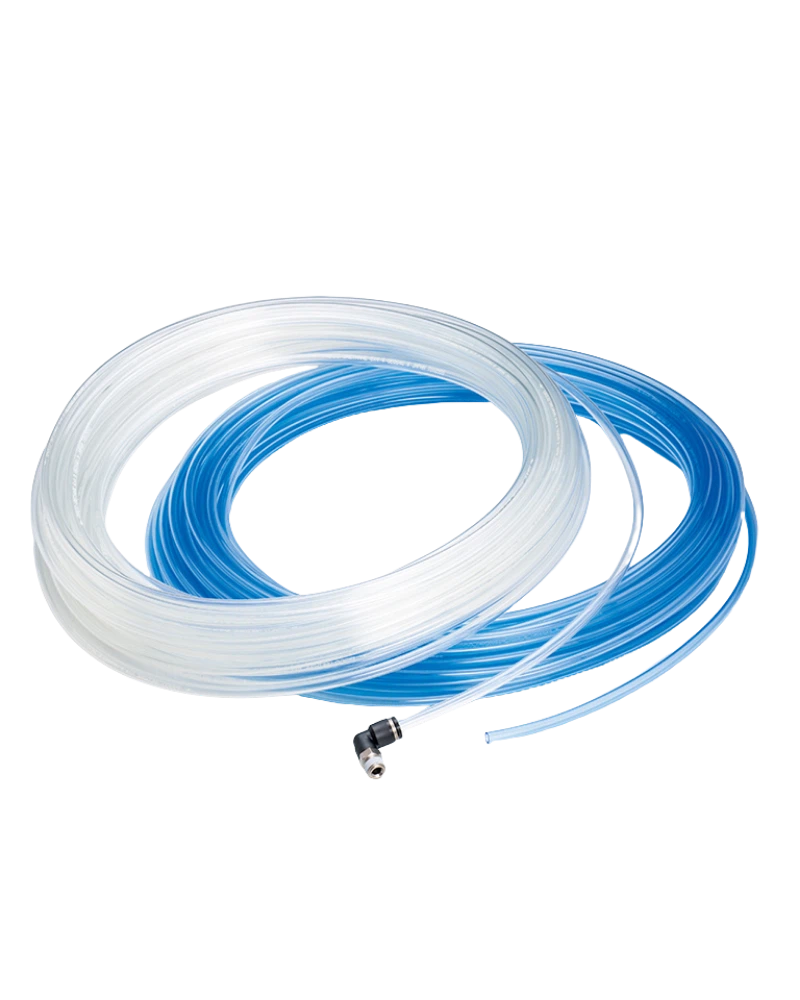

The Anti-static (ESD) Tube, available in transparent and clear blue, is designed to provide static dissipation and antistatic protection in environments where electrostatic discharge could damage sensitive electronic components. Ideal for use in manufacturing and assembly lines, as well as electronic component assembly and inspection processes, this tube ensures safe handling of static-prone materials by preventing the buildup of harmful electrical charges.
Constructed from a polyurethane-based conductive resin, the tube delivers reliable antistatic performance while maintaining durability under operational conditions. The material is specifically engineered to dissipate static electricity effectively without compromising mechanical integrity or flexibility during installation and use.
The tube features cut marks printed at approximately 500 mm intervals as a guide when cutting. These markings are intended solely for reference and do not guarantee precise cutting accuracy. Users should exercise caution and verify measurements based on their specific application requirements.
This ESD tube operates within an ambient temperature range of -15°C to 40°C, with no freezing risk. It is rated for a maximum operating pressure of 0.6MPa at 65% relative humidity and 20°C, and can withstand a maximum vacuum of -100kPa. The fluid medium supported by the tube is air only.
Available in one color option—transparent or clear blue—the product comes in six different sizes to suit various piping needs. For orders of 500 meters or more, transparent and clear blue variants are offered as special options, providing flexibility for large-scale installations requiring specific visual identification.
The tube is designed for direct integration into piping systems on manufacturing and assembly lines where static dissipation is required. No additional fittings or connectors are specified in the product data, but it can be cut to length and joined using standard pipe joining methods as needed.
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Max. operating pressure (65%RH at 20ºC) | 0.6MPa *1 |
| Max. vacuum | -100kPa |
| Operating temperature range | -15 to 40ºC (No freezing) |
| Available options | Ideal for piping on manufacturing and assembly lines requiring static dissipation and antistatic performance. Available in 1 color and 6 sizes |
| Available options / configurations | Transparent and Clear blue are available as a special option for orders of 500 m or more |
