The Polyolefin Tube is a specialized piping solution designed for applications where consistent flow rate and clean environment compatibility are essential. It delivers reliable performance in systems requiring precise fluid transport, such as in cleanroom environments or controlled industrial processes where contamination must be minimized.
Constructed from a polyolefin-based resin specifically formulated for clean environments, the tube ensures chemical resistance and long-term durability under typical operating conditions. The material complies with Japan Food Sanitation Act standards, making it suitable for food-related applications when required.
The tube features a standard configuration with threaded connections available in inch sizes. It is designed to maintain sufficient flow rate across various system requirements, ensuring efficient fluid movement without pressure loss or flow disruption.
Operating characteristics include a maximum operating pressure of 1.0MPa (at 65% RH and 20°C), with an alternative rating of 0.7MPa under the same conditions. The tube can withstand a maximum vacuum of -100kPa, operates within a temperature range of -15ºC to 80ºC, and is suitable for air, water (conditional), or other chemicals (conditional).

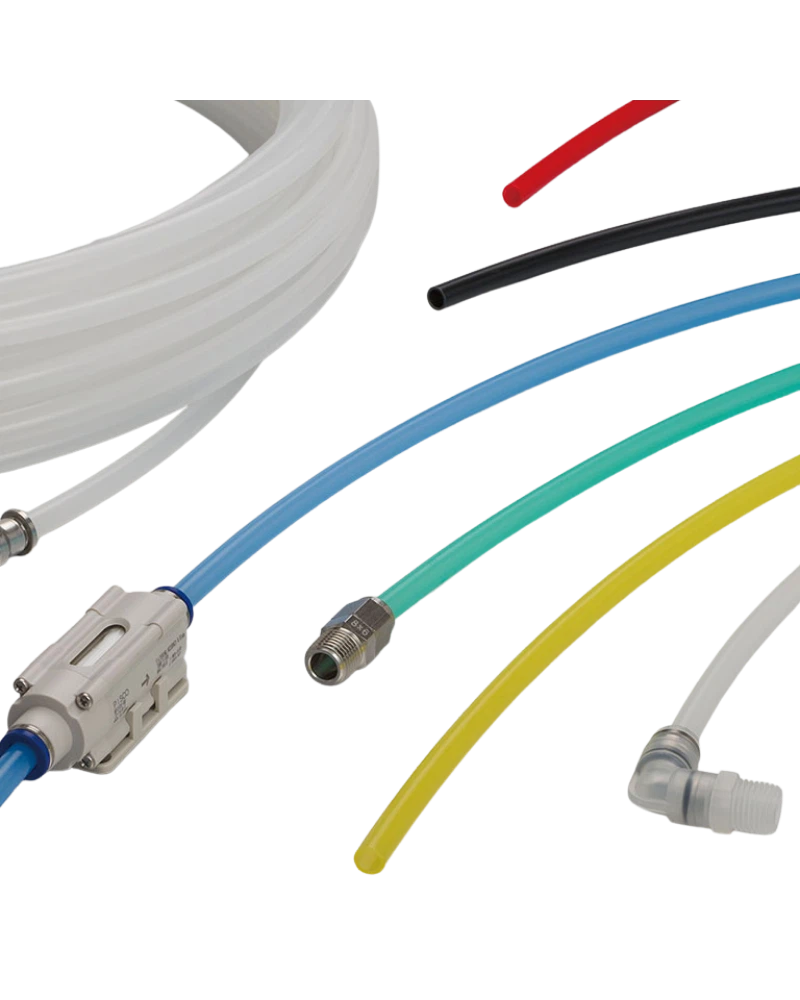

Available in 12 sizes, with dimensions up to φ16 × φ13 (inch sizes), and offered in six distinct colors. Five of the colors are available in clear versions, providing flexibility for visibility and application-specific needs. Cleanroom packaging is an optional configuration.
The tube integrates seamlessly into existing systems through standard threaded interfaces designed for inch-sized fittings. Installation requires alignment with compatible threading standards, ensuring secure connection and leak-free performance.
| Specification | Details |
|---|---|
| Fluid medium | Air, Water (Conditional *1), Other chemicals (Conditional *1) |
| Max. operating pressure (65%RH at 20º) | 1.0MPa *2 | 0.7MPa (*2) |
| Max. vacuum | -100kPa |
| Operating temperature range | -15 to 80ºC (No freezing) |
| Material | Made of polyolefin-based resin suitable for clean environments. A polyolefin tube series designed to secure sufficient flow rate. Available in 6 colors and 12 sizes. (Inch sizes available) | Made of materials compliant with Japan Food Sanitation Act |
| Available options | Tube sizes are available up to φ16 × φ13 | Tube colors: 6 colors. Available in 12 sizes. (Inch sizes available) |
