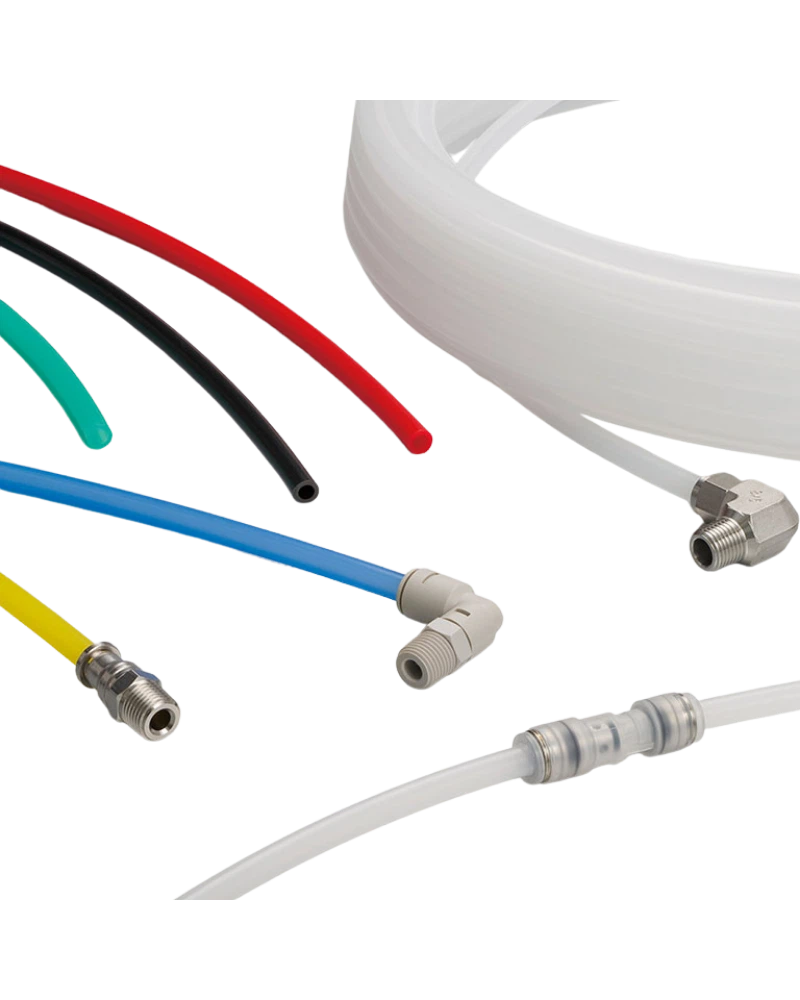

The Soft Polyolefin Tube is a flexible piping solution designed for use in clean environments where compact, reliable fluid transport is required. Ideal for applications involving air or water flow in controlled settings, this tube offers superior flexibility to accommodate tight spaces and complex routing without compromising performance or integrity.
Constructed from a polyolefin-based resin specifically suited for clean environments, the tube provides excellent chemical resistance and durability under normal operating conditions. The material is compliant with Japan Food Sanitation Act standards, making it suitable for food-related applications where hygiene is critical.
The tube features a small bending radius, enabling compact piping configurations that save space in tight installations. It connects directly to compatible fittings or systems through standard threaded or flanged interfaces—though specific connection types are not detailed in the product data.
Operating performance is optimized within a temperature range of -15°C to 80°C (no freezing), with a maximum operating pressure of 0.8MPa at 65% relative humidity and 20°C. The tube can also handle a maximum vacuum of -100kPa, making it suitable for both pressurized and suction applications under controlled conditions.
Available in eight sizes (in inch dimensions), the product offers flexibility to match various system requirements. Six distinct colors are offered, including five clear versions in addition to black—providing options for identification and visual tracking within cleanroom or industrial environments. Cleanroom packaging is available upon request.
Installation can be integrated into systems requiring flexible, compact piping solutions where space efficiency and ease of routing are key. The tube’s inherent flexibility supports direct integration with existing piping networks without the need for complex fittings or modifications.
| Specification | Details |
|---|---|
| Fluid medium | Air, Water (Conditional *1), Other chemicals (Conditional *1) |
| Max. operating pressure (65%RH at 20º) | 0.8MPa *2 |
| Max. vacuum | -100kPa |
| Operating temperature range | -15 to 80ºC (No freezing) |
| Material | Made of polyolefin-based resin suitable for clean environments. A polyolefin tube series offering superior flexibility. Available in 6 colors and 8 sizes. (Inch sizes available) | Made of materials compliant with Japan Food Sanitation Act |
| Available options | Tube colors: 6 colors. Available in 8 sizes. (Inch sizes available) |
