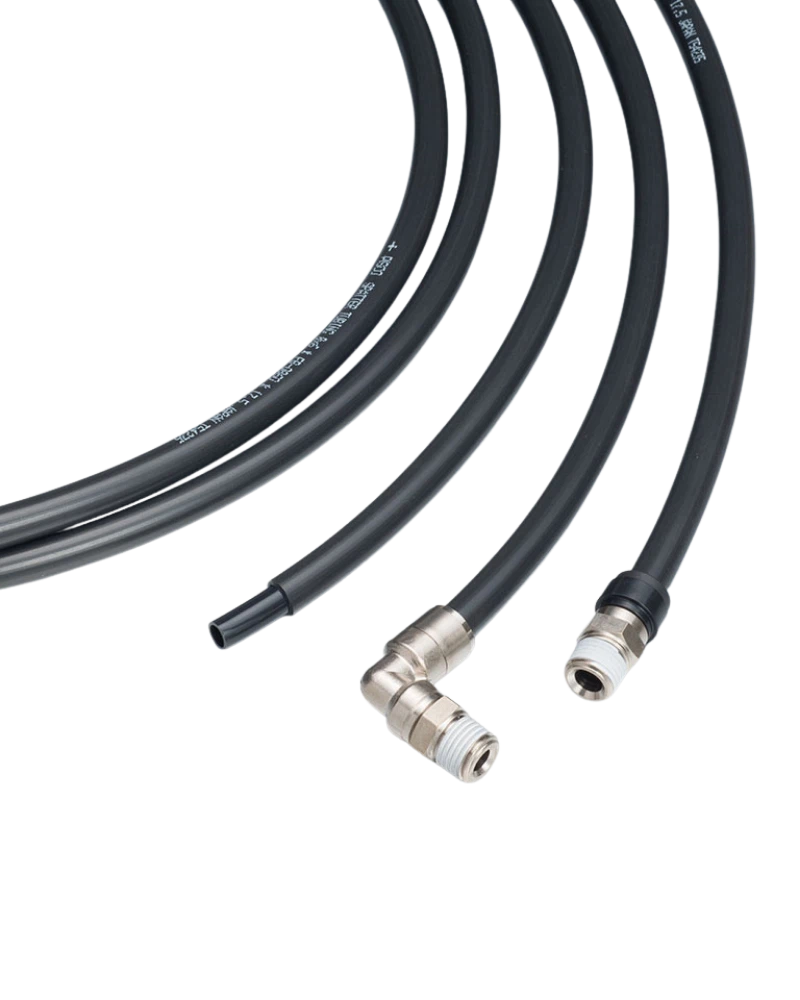

The Anti-static (ESD) Tube is designed to provide static dissipation and antistatic protection in environments where electrostatic discharge could damage sensitive electronic components. It is ideal for use in manufacturing and assembly lines, particularly during electronic component assembly and inspection processes, where maintaining a safe electrostatic environment is critical.
The tube is constructed using a polyurethane-based conductive resin that ensures effective static dissipation. This material provides both mechanical durability and reliable antistatic performance while remaining flexible for easy installation in various piping applications.
The tube features cut marks printed at approximately 500 mm intervals to serve as a guide when cutting. These markings are intended only as an aid and the accuracy of the cuts is not guaranteed. Users should exercise caution when using these marks for precise measurements or cutting operations.
Operating characteristics include a maximum operating pressure of 0.6MPa at 65% relative humidity and 20°C, a maximum vacuum capacity of -100kPa, and an operating temperature range from -15ºC to 40ºC. The tube is not suitable for use in conditions where freezing occurs due to the lower temperature limit.
Available in one color option with six different sizes, the tube offers flexibility for various system configurations. Transparent and clear blue variants are available as special options for orders of 500 meters or more, providing visual identification benefits in high-visibility environments.
The tube is designed to be integrated directly into piping systems where static dissipation is required. It can be connected using standard tubing fittings or joints, making it compatible with existing industrial piping setups without requiring additional hardware.
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Max. operating pressure (65%RH at 20ºC) | 0.6MPa *1 |
| Max. vacuum | -100kPa |
| Operating temperature range | -15 to 40ºC (No freezing) |
| Available options | Ideal for piping on manufacturing and assembly lines requiring static dissipation and antistatic performance. Available in 1 color and 6 sizes |
| Available options / configurations | Transparent and Clear blue are available as a special option for orders of 500 m or more |
