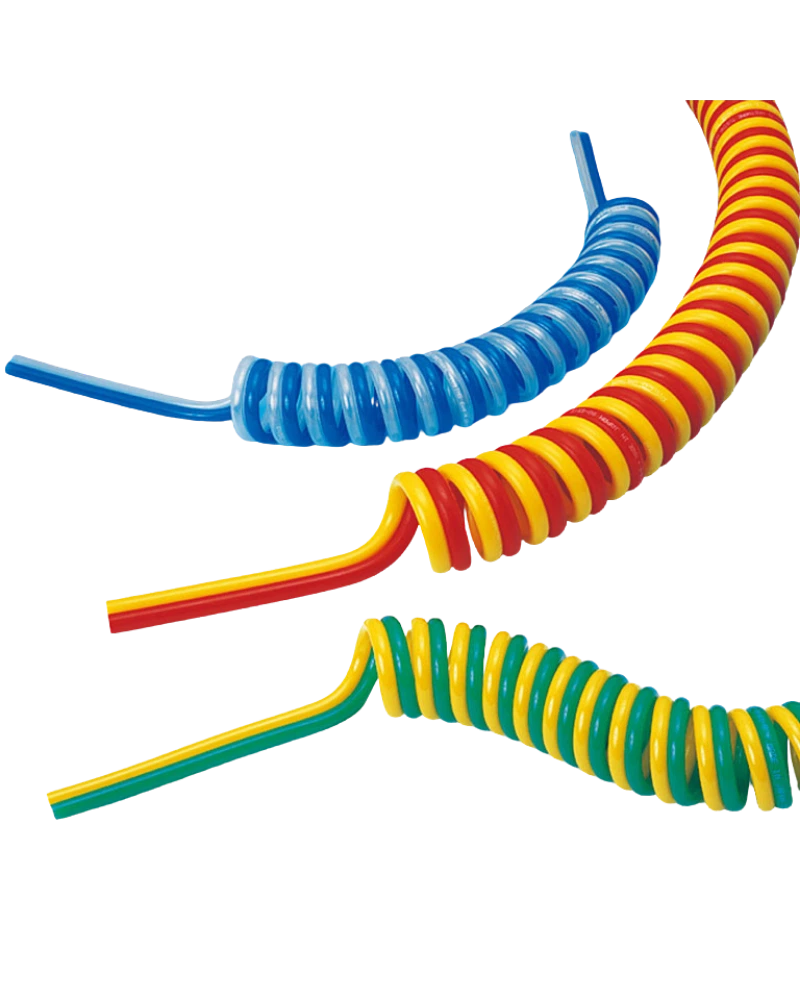

The Twin Spiral Coiled Tube is a specialized solution designed to provide compact, flexible piping around moving mechanical components. Its unique spiral design allows for efficient space utilization, making it ideal for applications where traditional straight piping would be impractical due to motion or spatial constraints.
Constructed from a 2-core multi-colored ribbon tube, the product features two concentric layers of colored ribbons that are coiled into a spiral configuration. The material is engineered to maintain structural integrity while offering visual distinction between core layers, enabling easy identification and maintenance in complex systems.
The tube offers customizable color combinations drawn from a selection of 10 available colors, allowing users to freely pair colors based on application needs or system identification requirements. These combinations are available as make-to-order items, ensuring alignment with specific equipment or operational standards.
The Twin Spiral Coiled Tube is rated for operation under a maximum pressure of 1.0MPa at 65% relative humidity and 20°C, and can withstand a maximum vacuum of -100kPa. It operates within an air temperature range of -20 to 60°C and water temperature range of -15 to 60°C, with no freezing conditions allowed.
Available in six standard sizes and ten color options, the product can be configured to match specific equipment dimensions through specified lengths. Custom color combinations are also available as make-to-order items, enabling precise alignment with design or operational requirements.
The coiled tube is designed for direct integration into mechanical systems where space constraints exist due to moving parts. It can be installed in locations requiring compact piping solutions and is compatible with standard connection points on equipment that require fluid conveyance via air or water.
| Specification | Details |
|---|---|
| Fluid medium | Air, Water (Conditional *1) |
| Max. operating pressure (65%RH at 20ºC) | 1.0MPa *2 |
| Max. vacuum | -100kPa |
| Operating temperature range | Air: -20 to 60ºC (No freezing)/ Water: -15 to 60ºC (No freezing) |
| Available options | Coiled tubing made from 2-core Multi-colored Ribbon Tube. Enables compact piping for moving parts of equipment. Available in combinations of 10 colors and 6 sizes. Available in specified lengths as make-to-order items |
