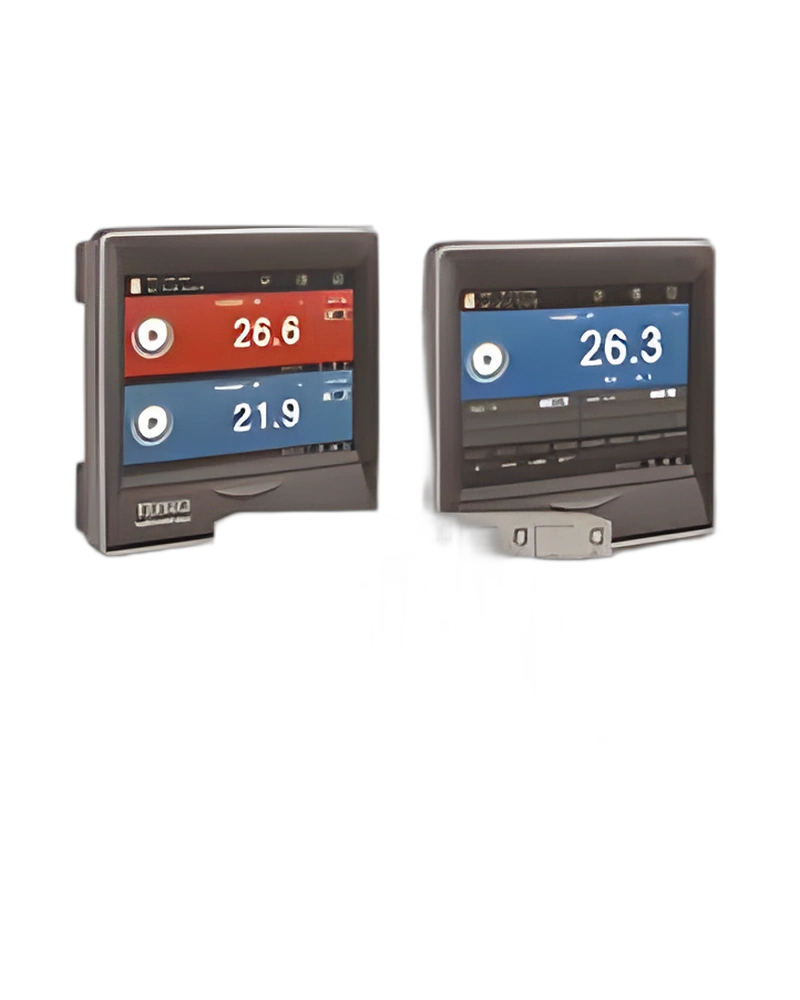

TD510 / TD511 Programmable temperature controller is a Hanyoung NUX temperature controller for monitoring and regulating process temperature. The available configuration is built around the listed sensor inputs, control method and output arrangement, with model information of Code | Description. Input type: Measuring range (℃) | Leve; Input type: 2 types of thermoresistor (Pt-100, KPt-100), 11 types of thermocouple (K, J, E, T, R, B, S, L, N, U, Wire 5-26) 4 types of DC voltage (-10 - 20 mV, 0 - 100 mV, 1 - 5 V, 0 - 30 V); Allowable input voltage: Thermocouple : ±10 V d.c. or less, DC voltage : ±33 V d.c. or less; Input type: No-voltage contact input.
For panel and process selection, the important characteristics are the input sensor type, control response, power requirements and display or communication options. Display: TFT color LCD (115.2 x 86.4 mm); Display: 1 | Display(5.7" TFT LCD); Communication type: 2-wire; Synchronization: Asynchronous.
Key strengths of the TD510 / TD511 Programmable temperature controller come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.
Input type: Measuring range (℃) | Leve; Control output: SSR output | ON : 18 V d.c. Pulse voltage (800 Ω or more load resistance); Power voltage: 100 - 240 V a.c. Voltage regulation ±10 %; Sampling cycle: 250 ms; Display: TFT color LCD (115.2 x 86.4 mm).
The TD510 / TD511 Programmable temperature controller is specified by its sensor input, control output, electrical supply, sampling behaviour and accuracy. These values determine how the controller measures temperature and applies its selected control response. ON/OFF sensing resistor: Recognizes as ON for min 1㏀ or less and OFF for max. 10㏀ or more.; Min. sensing time: 0.25 S; Hysteresis: EUS (0 ~ 100 %); Contact output (DO): Up to 32 relay | A Contact | 30 V d.c. 3 A max, 250 V a.c. 3 A.
Additional technical characteristics include Control output: SSR output | ON : 18 V d.c. Pulse voltage (800 Ω or more load resistance); SCR output: 4 - 20 mA d.c. (600 Ω or less load resistance); Transmission output: Current output | 4 - 20 ㎃ d.c.
The physical design of TD510 / TD511 Programmable temperature controller should be considered together with the installation environment and the available mounting or display arrangement. Weight: Approx. 1.32 kg; Dielectric strength: Between 1st and 2nd terminals : Min. 1500 V a.c for 1 min Between 1st and FG terminals : Min. 1500 V a.c for 1 min Between 2nd and FG terminals : Min. 1500 V a.c for 1 min; Insulation resistance: 20 ㏁ or 500 V d.c. between power and FG terminals; Ambient temperature: 0 ~ 50 ℃.
Further construction and environmental details include Ambient humidity: 20 - 90 % RH (Without condensation); Ambient temperature: -20 ~ 70 ℃; Ambient humidity: 5 - 95 % RH (Without condensation).
Integration of TD510 / TD511 Programmable temperature controller requires the correct sensor input, control output, supply voltage and configuration settings for the application. Communication distance: Approx. 1.2 km or less; Communication speed: 9600, 19200, 38400, 57600, 115200 bps; Data length: 7/8 bits; Protocol: PC-Link / PC-Link + SUM / MODBUS ASC / MODBUS RTU.
Additional operating and interface details include Language: Korean/English/Chinese(Simplified); Language: S | Korean, English, and Chinese(Simplified); Output limit: -5.00 ~ 105.00 %. These values provide a practical reference for wiring, setup and normal operation within the selected configuration.
Choose TD510 / TD511 Programmable temperature controller by confirming the exact model or configuration against the required operating conditions. The available model information is Code | Description. Scaling: DC voltage(VDC) : Input scaling according to conversion range; Scaling: Auto scaling for defined upper/lower limit range(4 - 20 mA d.c.); Model: Code | Description; Sampling cycle: 250 ms.
Before installation, confirm Output type: Specific value(PV), Setting value(SV), Output(MV), and random; Response time: 0 ~ 100 ㎳; Control output: Temperature control output | SSR output or SCR (4 - 20 mA d.c.) output. Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
| Specification | Details |
|---|---|
| Input type | Measuring range (℃) | Leve |
| Thermoresistor (RTD) | Pt100 Ω | Pt-1 | -200.0 ~ 640.0 | ±0.1 % of FS ±1 Digit |
| KPt100 Ω | KPt-1 | -200.0 ~ 500.0 |
| Thermocouple (TC) | K | K-0 | -200 ~ 1370 | ±0.15 % of FS ±1 digit |
| K-1 | -200.0 ~ 1370.0 | ±0.15 % of FS ±1 digit(*2) |
| J | -200.0 ~ 1200.0 | ±0.15 % of FS ±1 digit(*2) |
| E | -200.0 ~ 1000.0 | ±0.15 % of FS ±1 digit(*2) |
| T | -200.0 ~ 400.0 | ±0.15 % of FS ±1 digit(*3) |
| R | 0.0 ~ 1700.0 | ±0.15 % of FS ±1 digit(*4) |
| B | 0.0 ~ 1800.0 | ±0.15 % of FS ±1 digit(*1) |
| S | 0.0 ~ 1700.0 | ±0.15 % of FS ±1 digit(*4) |
| L | -200.0 ~ 900.0 | ±0.15 % of FS ±1 digit(*2) |
| N | -200.0 ~ 1300.0 | ±0.15 % of FS ±1 digit(*3) |
| U | -200.0 ~ 400.0 | ±0.15 % of FS ±1 digit(*3) |
| Wre 5-26 | 0.0 ~ 2300.0 | ±0.15 % of FS ±1 digit(*4) |
| DC voltage (VDC) | -10 - 20 mV | -10.00 ~ 20.00 | ±0.1 % of FS ±1 Digit |
| 0 - 100 mV | 0.00 ~ 100.00 |
| 1 - 5 V | 1.00 ~ 5.00 |
| 0 - 30 V | 0.00 ~ 30.00 |
| Power voltage | 100 - 240 V a.c. Voltage regulation ±10 % |
| Power frequency | 50/60 ㎐ |
| Power consumption | 30 VA max |
| Max. rating of internal fuse | 250 V a.c. |
| Dielectric strength | Between 1st and 2nd terminals : Min. 1500 V a.c for 1 min Between 1st and FG terminals : Min. 1500 V a.c for 1 min Between 2nd and FG terminals : Min. 1500 V a.c for 1 min |
| Insulation resistance | 20 ㏁ or 500 V d.c. between power and FG terminals |
| Input type | 2 types of thermoresistor (Pt-100, KPt-100), 11 types of thermocouple (K, J, E, T, R, B, S, L, N, U, Wire 5-26) 4 types of DC voltage (-10 - 20 mV, 0 - 100 mV, 1 - 5 V, 0 - 30 V) |
| Sampling cycle | 250 ms |
| Measured current of thermoresistor(RTD) | Approx. 0.21 mA |
| Input resistance | Thermocouple : 1 ㏁ or more; DC voltage : 1 ㏁ or more |
| Allowable wire resistance | Thermoresistor : Max. 100 Ω/wire (For RTD between -100.00 and 150.00, max. 10 Ω/wire) Thermocouple : 200 Ω or less DC voltage : 2 ㏀ or less |
| Influence of wire resistance | Thermoresistor : ±0.3 ℃/10 Ω (3 wires must have the same wire resistance) |
| Allowable input voltage | Thermocouple : ±10 V d.c. or less, DC voltage : ±33 V d.c. or less |
| Error of reference junction contact (RJC) temperature | ±1.5 ℃ (0 ~ 50 ℃) |
| Detection of sensor disconnection (Burn-out) | UP-Scale for disconnection |
| Contact output (DO) | Up to 32 relay | A Contact | 30 V d.c. 3 A max, 250 V a.c. 3 A |
| B Contact | NO : 30 V d.c. 5 A max, 250 V a.c. 5 A |
| Control output | SSR output | ON : 18 V d.c. Pulse voltage (800 Ω or more load resistance) |
| SCR output | 4 - 20 mA d.c. (600 Ω or less load resistance) |
| Transmission output | Current output | 4 - 20 ㎃ d.c |
| Load resistance | 600 Ω or less load resistance |
| Output limit | -5.00 ~ 105.00 % |
| Output type | Specific value(PV), Setting value(SV), Output(MV), and random |
| Refresh interval | 250 ㎳ |
| Max. number of input | 32 points |
| Input type | No-voltage contact input |
| ON/OFF sensing resistor | Recognizes as ON for min 1㏀ or less and OFF for max. 10㏀ or more. |
| Min. sensing time | 0.25 S |
| Operational conditions | During operation/Always |
| Contact function | Operation and stop/hold/step by DI; User can define error screen. |
| Applied standard | RS485 |
| Max. connection number | 1:32 (address 1 - 99) |
| Communication type | 2-wire |
| Synchronization | Asynchronous |
| Communication distance | Approx. 1.2 km or less |
| Communication speed | 9600, 19200, 38400, 57600, 115200 bps |
| Data length | 7/8 bits |
| Parity bit | NONE / EVEN / ODD |
| Stop bit | 1 / 2 bit(s) |
| Protocol | PC-Link / PC-Link + SUM / MODBUS ASC / MODBUS RTU |
| Response time | 0 ~ 100 ㎳ |
| Input | Input calibration (Sensor bias) | 2 temperature points : EUS(0 - 100 %) |
| Scaling | DC voltage(VDC) : Input scaling according to conversion range |
| Input filter (LPF) | 0 - 120 S |
| Control mode | Operation type | Constant-value / Program control |
| Control output | Temperature control output | SSR output or SCR (4 - 20 mA d.c.) output |
| Control operation | Pattern | 100 patterns (1 pattern/100 segments) |
| Segment | 2000 segments |
| PID group | 4 groups |
| Auto tuning | Auto tuning according to target setting value |
| Proportional band | 0.00 - 100.00 % (For 0.00 %, ON/OFF control) |
| Integral time | 0.0 - 3,000 S (OFF when 0 S) |
| ON/OFF control | Set 0.0 to proportional band(PB) |
| Normal Open/ Normal Close | According to selection of Normal Open/Normal Close for control output |
| Hysteresis | EUS (0 ~ 100 %) |
| Transmission output | Temperature (Ch.1 and 2) | 4 - 20 mA d.c. Specific value(PV), Setting value(SV) and Output(MV) |
| Scaling | Auto scaling for defined upper/lower limit range(4 - 20 mA d.c.) |
| Alarm setting | Alarm setting | System alarm : 8 points Assign 4 of 8 pattern alarms to a pattern |
| Alarm type | Absolute upper/lower limit, Offset upper/lower limit, and Within/Out of range |
| Absolute alarm setting range | EU (0 ~ 100 %) |
| Offset information setting range | EUS (-100 ~ 100 %) |
| Display | TFT color LCD (115.2 x 86.4 mm) |
| Number of pixels | 640 X 480 pixel |
| Back light | LED Back light |
| Life cycle of back light | Approx. 40,000 h |
| Touch type | Resistive type (4 Wires) |
| Language | Korean/English/Chinese(Simplified) |
| Internal memory | Non-volatile memory : 80 MB - Saving of 15 days at 1 S interval |
| External memory | SD card(8 GB) : Saving of 4 years at 1 S interval |
| Saving interval | 1 - 360 S |
| Memory information | Program information, setting value, recovery, and temperature setting/specific/output value |
| Ambient temperature | 0 ~ 50 ℃ |
| Temperature fluctuation | 10 ℃/h or less |
| Ambient humidity | 20 - 90 % RH (Without condensation) |
| Magnetic field | 400 A/m or less |
| Altitude | 2,000 m or less from the sea |
| Weight | Approx. 1.32 kg |
| Ambient temperature | -20 ~ 70 ℃ |
| Temperature fluctuation | 20 ℃/h or less |
| Ambient humidity | 5 - 95 % RH (Without condensation) |
| DC voltage, thermocouple sensor | ±0.003 % / ℃ of max. range |
| Thermoresistor sensor | ±0.03 ℃/℃ |
| Model | Code | Description |
| TD51 | - | Programmable temperature controller |
| Control unit | 0 | 2 channels |
| 1 | 1 channels |
| Display | 1 | Display(5.7" TFT LCD) |
| N | None |
| Input/output | 1 | 8 input points / 6 output points (1 module)+Power module+Control module |
| 2 | 8 input points / 14 output points (2 modules)+Power module+Control module |
| 3 | 16 input points / 16 output points (3 modules)+Power module+Control module |
| N | No input/output |
| Language | S | Korean, English, and Chinese(Simplified) |
| No | Type | Category | Title | File |
| 1 | Manual > Instruction Manual | Temperature Controllers | TD510 User manual |
| 1 | CAD > 2D | Temperature Controllers | TD510 (2D) |
| 2 | CAD > 3D | Temperature Controllers | TD510 (3D) |
| 1 | Software > Program | ALL | Communication Protocol Examples |
| No | Mark | Category | Title | File |
| 1 | Certification > CE | Temperature Controllers | TD510 / TH510 / TS510 (EMC) |
| Between 1st and 2nd terminals | Min. 1500 V a.c for 1 min |
| Between 1st and FG terminals | Min. 1500 V a.c for 1 min |
| Between 2nd and FG terminals | Min. 1500 V a.c for 1 min |
| DC voltage | 2 ㏀ or less |
| 2 temperature points | EUS(0 - 100 %) |
| DC voltage(VDC) | Input scaling according to |
| System alarm | 8 points |
| Non-volatile memory | 80 MB - Saving of 15 days at 1 S interval |
