Product Overview

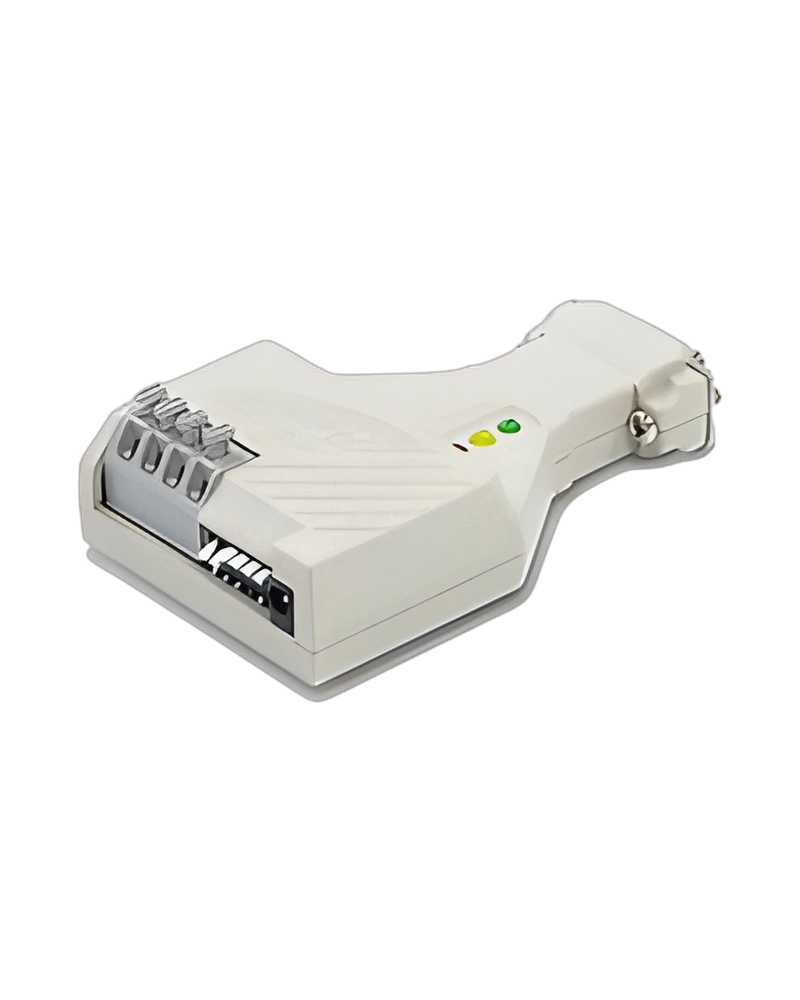

CV300 is a Hanyoung NUX network converter for connecting industrial communication interfaces and converting between supported communication methods. The model configuration is CV300. Communication Speed: 2400 ~ 115200 bps; Communication Distance: Maximum 1.5 Km, 256 nodes; Function Setting: Two-wire / Four-wire communication system Built-in termination resistor(100 Ω) ON/OFF Full Duplex / Half Duplex; Connection Method: RS232 -> DB-9 Female (Connect to COM port of PC) RS422/485 -> 4 pin terminal block (Insert RS422/485 communication cable).

Communication speed, distance, connector arrangement, protection functions and setup options are central to selecting and integrating the converter into the existing network. Setting Switch: 6 Pin Piano Type Dip-Switch; Case materials: Plastic; Weight: Converter : 60g, Adaptor : 300g; Size: 52 x 90 x 20 mm.

Key Features

Key strengths of the CV300 come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.

Power: 9 V, 300 mA d.c. Adapter (1.3 Ø DC Jack); Communication Speed: 2400 ~ 115200 bps; Communication Distance: Maximum 1.5 Km, 256 nodes; Connection Method: RS232 -> DB-9 Female (Connect to COM port of PC) RS422/485 -> 4 pin terminal block (Insert RS422/485 communication cable); Function Setting: Two-wire / Four-wire communication system Built-in termination resistor(100 Ω) ON/OFF Full Duplex / Half Duplex.

• Power: 9 V, 300 mA d.c. Adapter (1.3 Ø DC Jack)
• Communication Speed: 2400 ~ 115200 bps
• Communication Distance: Maximum 1.5 Km, 256 nodes
• Connection Method: RS232 -> DB-9 Female (Connect to COM port of PC) RS422/485 -> 4 pin terminal block (Insert RS422/485 communication cable)
• Function Setting: Two-wire / Four-wire communication system Built-in termination resistor(100 Ω) ON/OFF Full Duplex / Half Duplex
• Safety: 1/2 circuit insulation, Built-in surge protection, Automatically generates ±15 kV ESD protection line drive signals
• Setting Switch: 6 Pin Piano Type Dip-Switch
• Case materials: Plastic
• Weight: Converter : 60g, Adaptor : 300g
• Size: 52 x 90 x 20 mm

Technical Characteristics

The CV300 communication performance is determined by supported interfaces, communication speed, maximum communication distance, configuration settings and electrical supply. These specifications should be matched to the connected network equipment. Power: 9 V, 300 mA d.c. Adapter (1.3 Ø DC Jack); Communication Speed: 2400 ~ 115200 bps; Communication Distance: Maximum 1.5 Km, 256 nodes; Connection Method: RS232 -> DB-9 Female (Connect to COM port of PC) RS422/485 -> 4 pin terminal block (Insert RS422/485 communication cable).

Additional technical characteristics include Function Setting: Two-wire / Four-wire communication system Built-in termination resistor(100 Ω) ON/OFF Full Duplex / Half Duplex; Safety: 1/2 circuit insulation, Built-in surge protection, Automatically generates ±15 kV ESD protection line drive signals; Setting Switch: 6 Pin Piano Type Dip-Switch.

Design and Construction

The physical design of CV300 should be considered together with the installation environment and the available mounting or display arrangement. Power: 9 V, 300 mA d.c. Adapter (1.3 Ø DC Jack); Communication Speed: 2400 ~ 115200 bps; Communication Distance: Maximum 1.5 Km, 256 nodes; Connection Method: RS232 -> DB-9 Female (Connect to COM port of PC) RS422/485 -> 4 pin terminal block (Insert RS422/485 communication cable).

Further construction and environmental details include Function Setting: Two-wire / Four-wire communication system Built-in termination resistor(100 Ω) ON/OFF Full Duplex / Half Duplex; Safety: 1/2 circuit insulation, Built-in surge protection, Automatically generates ±15 kV ESD protection line drive signals; Setting Switch: 6 Pin Piano Type Dip-Switch.

Integration and Operation

Integration of CV300 depends on matching the communication ports, wiring method and network settings to the connected equipment. Power: 9 V, 300 mA d.c. Adapter (1.3 Ø DC Jack); Communication Speed: 2400 ~ 115200 bps; Communication Distance: Maximum 1.5 Km, 256 nodes; Connection Method: RS232 -> DB-9 Female (Connect to COM port of PC) RS422/485 -> 4 pin terminal block (Insert RS422/485 communication cable).

Additional operating and interface details include Function Setting: Two-wire / Four-wire communication system Built-in termination resistor(100 Ω) ON/OFF Full Duplex / Half Duplex; Safety: 1/2 circuit insulation, Built-in surge protection, Automatically generates ±15 kV ESD protection line drive signals; Setting Switch: 6 Pin Piano Type Dip-Switch. These values provide a practical reference for wiring, setup and normal operation within the selected configuration.

Selection and Use

Choose CV300 by confirming the exact model or configuration against the required operating conditions. The available model information is CV300. Model: CV300; Power: 9 V, 300 mA d.c. Adapter (1.3 Ø DC Jack); Communication Speed: 2400 ~ 115200 bps; Communication Distance: Maximum 1.5 Km, 256 nodes.

Before installation, confirm Connection Method: RS232 -> DB-9 Female (Connect to COM port of PC) RS422/485 -> 4 pin terminal block (Insert RS422/485 communication cable); Function Setting: Two-wire / Four-wire communication system Built-in termination resistor(100 Ω) ON/OFF Full Duplex / Half Duplex; Safety: 1/2 circuit insulation, Built-in surge protection, Automatically generates ±15 kV ESD protection line drive signals. Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
