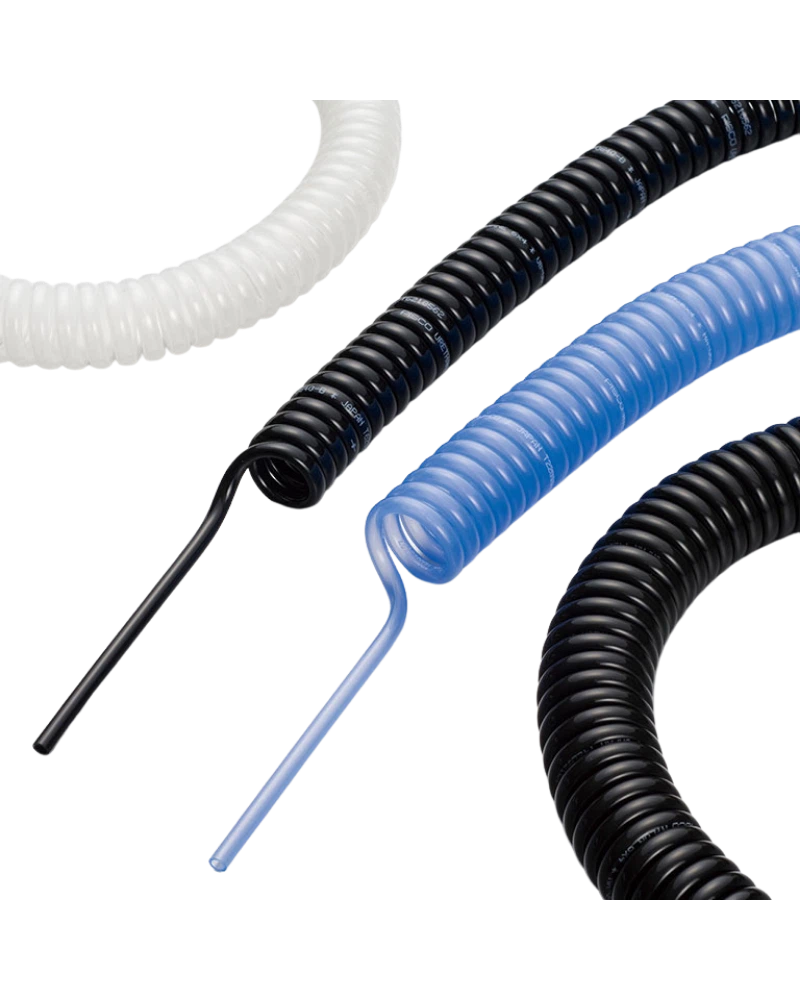

The Spiral Coiled Polyurethane Tube (UB) is designed for efficient, space-saving piping in equipment with moving parts. It is ideal for applications such as air blow guns, air-powered screwdrivers, and other air tools where flexible, compact tubing is required to maintain performance while minimizing physical footprint.
Constructed from flexible polyurethane, this tube offers durable resistance to abrasion and impact. The spiral-coiled design enhances flexibility and reduces stress on fittings during movement or vibration, making it suitable for dynamic environments where traditional straight tubing would fail.
The tube features a standardized spiral coiling configuration that allows for seamless integration into moving components of machinery. Connection points are designed to interface directly with standard tool or equipment fittings without requiring additional adapters or modifications.
This polyurethane tube is rated for maximum operating pressure of 1.0MPa at 65% relative humidity and 20°C, and can handle a maximum vacuum of -100kPa. It operates reliably within an air temperature range of -20 to 60°C (no freezing) and water temperature range of -15 to 60°C (no freezing).
Available in six standard sizes and a wide range of ten distinct tube colors, the product offers both functional flexibility and visual identification options. Custom lengths can be specified as make-to-order items to match exact installation requirements.
The spiral-coiled design supports direct integration into equipment where space is limited or motion is present. Installation requires no special tools or fittings; it connects directly to standard air tool or pneumatic system interfaces, ensuring a secure and reliable fit.
| Specification | Details |
|---|---|
| Fluid medium | Air, Water (Conditional *1) |
| Max. operating pressure (65%RH at 20ºC) | 1.0MPa *2 |
| Max. vacuum | -100kPa |
| Operating temperature range | Air: -20 to 60ºC (No freezing)/ Water: -15 to 60ºC (No freezing) |
| Available options | Ideal for piping air tools, etc. Made of flexible polyurethane tubing. Available in 10 colors and 6 sizes. Available in specified lengths as make-to-order items | Available in a wide range of 10 tube colors |
