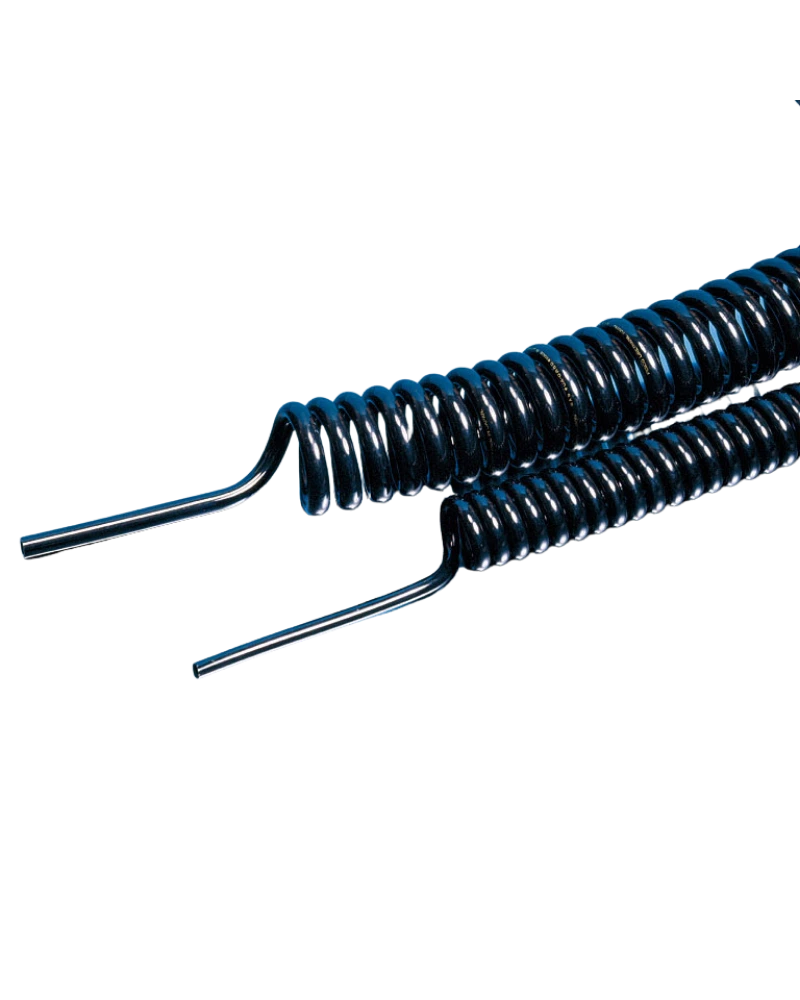

The Spiral Coiled Nylon Tube is a flexible, space-saving solution designed for piping air tools, air blow guns, and air-powered screwdrivers. Its unique spiral-coil design allows it to fit into tight or moving spaces within equipment, reducing the physical load on fittings and minimizing strain during operation.
Constructed from flexible polyurethane tubing (UB), this tube offers durable performance while maintaining flexibility. The material is resistant to abrasion and provides reliable flow under dynamic conditions, making it suitable for both air and water applications under specified conditions.
The spiral coiling configuration enables compact installation in moving or confined areas of machinery. This design reduces the need for straight runs and helps prevent kinking or bending stress on connections, improving overall system stability and longevity.
The tube is rated for a maximum operating pressure of 1.0MPa at 65% relative humidity and 20°C, and can handle a maximum vacuum of -100kPa. It operates within an air temperature range of -20 to 60°C (no freezing) and water temperature range of -15 to 60°C (no freezing).
Available in six sizes and ten distinct tube colors, this product offers flexibility in both appearance and fit. Custom lengths are available as make-to-order items to match specific installation requirements.
The spiral-coiled design integrates directly into equipment where space is limited or motion is present. It connects seamlessly with standard fittings used in air tool systems, allowing for straightforward integration without requiring additional support structures.
| Specification | Details |
|---|---|
| Fluid medium | Air, Water (Conditional *1) |
| Max. operating pressure (65%RH at 20ºC) | 1.0MPa *2 |
| Max. vacuum | -100kPa |
| Operating temperature range | Air: -20 to 60ºC (No freezing)/ Water: -15 to 60ºC (No freezing) |
| Available options | Ideal for piping air tools, etc. Made of flexible polyurethane tubing. Available in 10 colors and 6 sizes. Available in specified lengths as make-to-order items | Available in a wide range of 10 tube colors |
