The Anti-spatter tube is designed to protect against sparks and splatter in high-risk environments where flame-retardant protection is essential. Its flame-retardant outer cover meets V-0 equivalence standards, providing excellent spatter resistance when used in applications involving open flames or spark generation. This makes it ideal for use in industrial settings such as welding, cutting, or other processes where material debris or fire hazards are present.

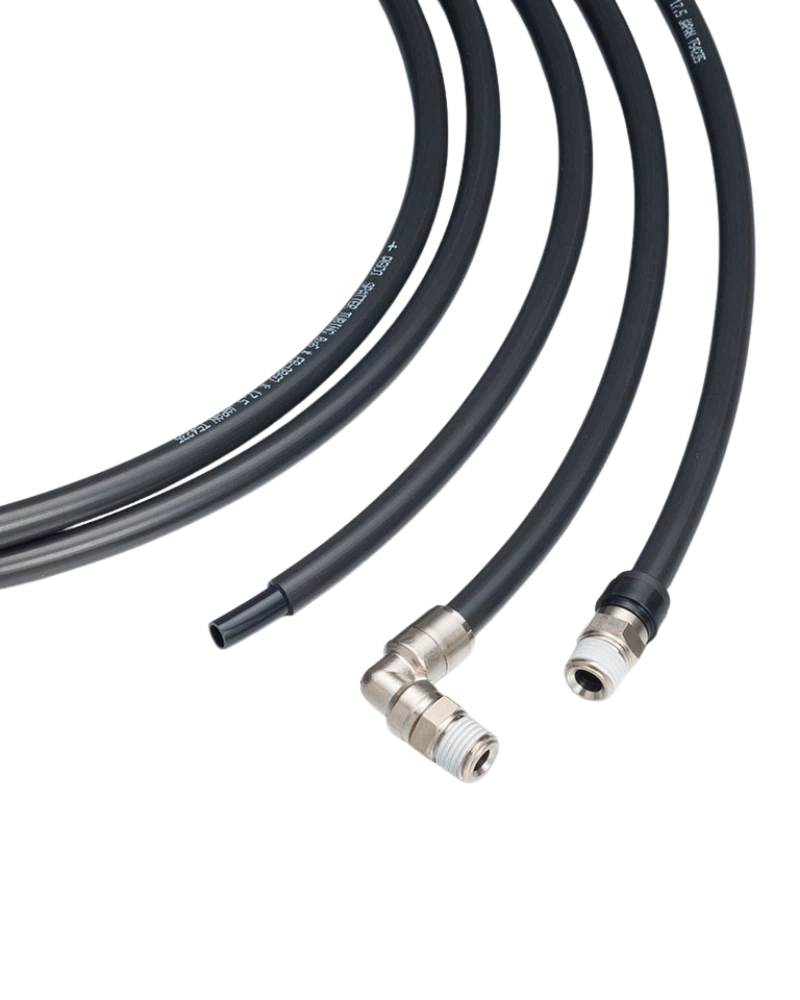

The tube is constructed with a self-extinguishing PVC outer cover and an inner Soft Nylon Tube (NB) layer. This dual-material design ensures durability while maintaining resistance to heat and mechanical stress. The combination of materials provides both safety and performance in demanding operational conditions.
Each Anti-spatter tube features a printed stripping length on the outer cover, indicating where the flame-retardant cover can be safely peeled off using the Tube Stripper for Anti-spatter Tube (TSC). This marking serves as a guide only and does not guarantee precise dimensions. The inner tube remains intact during removal to prevent damage.
The Anti-spatter tube is rated for maximum operating pressure of 1.0MPa at 65% relative humidity and 20°C, with a maximum vacuum capacity of -100kPa. It operates effectively within a temperature range of -15 to 90°C, ensuring performance in both cold and hot environments without freezing. It is suitable for use with air, thermal oil, or water under conditional conditions.
Available in one standard color and eight sizes, the Anti-spatter tube offers flexibility in fit and application. Special-order color changes to red, blue, green, yellow, or white are available for orders of 500 meters or more, providing customization options for specific site requirements.
The anti-spatter tube integrates seamlessly with systems requiring spark-resistant protection. It can be used directly in applications involving hot water or heat medium oil, and is compatible with standard fittings in the PISCO Tube Fitting series and Brass series. The stripping length printed on the cover allows for easy identification and safe removal during maintenance or installation.
| Specification | Details |
|---|---|
| Fluid medium | Air, Thermal oil, (Conditional *1), Water (Conditional *1) |
| Max. operating pressure (65%RH at 20ºC) | 1.0MPa *2 |
| Max. vacuum | -100kPa |
| Operating temperature range | -15 to 90ºC (No freezing) |
| Available options | Best suitable for environments where sparks are generated as the tube is covered with flame-retardant cover (V-0 equivalent) and has excellent spatter resistance. Available in 1 color and 8 sizes |
| Material | Made of self-extinguishing PVC for the outer cover and Soft Nylon Tube (NB) for the inner tube |
