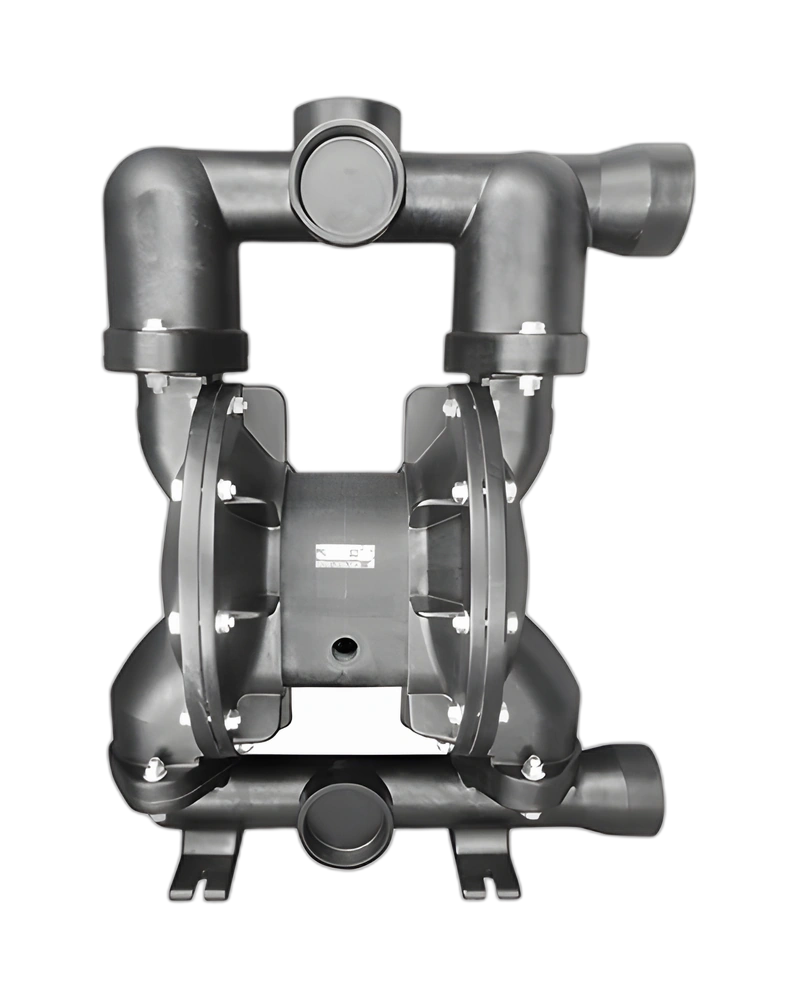

The ALPHA DYNAMIC Ruby 180-3 is a high-performance air-operated pump designed for demanding industrial applications. With a maximum flow rate of 850 L/min and operating pressure range of 2-8 bar, this pump handles solids up to 8.0 mm in size and operates reliably in harsh environments. Its robust construction from aluminum AL-233 or AISI 316 ensures durability and compliance with stringent Atex certifications for explosive atmospheres.
The ALPHA DYNAMIC Ruby 180-3 is a high-capacity air-operated pump engineered for critical industrial processes requiring reliable fluid handling in explosive or high-temperature environments. This pump delivers exceptional performance with a maximum flow rate of 850 L/min and operates within a pressure range of 2-8 bar, making it ideal for applications involving abrasive or particulate-laden fluids. Its dual construction options—aluminum AL-233 for cost-effective installations and AISI 316 for corrosion resistance—coupled with Atex certifications for explosive atmospheres, ensure compliance and safety in hazardous conditions. The pump’s ability to handle solids up to 8.0 mm in diameter and operate at temperatures up to 95°C further enhances its versatility across diverse industrial sectors.
The Ruby 180-3 meets stringent Atex standards for use in explosive environments, including II 3G Ex h IIB T4 Gc and II 3D Ex h IIIB 135°C Dc for standard applications, and II 2/2 G/D Ex h IIC T4 Gb/Db for conductive environments. This certification ensures safe operation in hazardous areas without compromising performance, making it suitable for chemical processing, oil and gas, and pharmaceutical industries where explosive risks are present.
Engineered with two construction options to balance cost and performance: Aluminum AL-233 (50.0 kg) for lightweight, cost-effective installations in non-corrosive environments, and AISI 316 (88.0 kg) for superior corrosion resistance in aggressive chemical or marine applications. Both materials maintain structural integrity under high temperatures up to 95°C and handle solids up to 8.0 mm in size.
Designed to operate efficiently in demanding conditions, the Ruby 180-3 delivers a maximum flow rate of 850 L/min and handles suction heads up to 5 meters. Its ability to manage solids as large as 8.0 mm ensures consistent performance in applications involving slurry transport, wastewater treatment, and industrial cleaning processes without requiring frequent maintenance.
The pump features standard G3" (DN 80) intake and delivery connections, with a 3/4" air connection for seamless integration into existing pneumatic systems. Its compact design and robust construction allow for straightforward installation in confined spaces while maintaining compliance with safety standards for explosive atmospheres.
The ALPHA DYNAMICRuby 180-3 is an industrial Air Operated Pumps. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Atex Certification | STANDARD : II 3G Ex h IIB T4 Gc – II 3D Ex h IIIB 135°C Dc CONDUCT : II 2/2 G/D Ex h IIC T4 Gb/Db – I M2 Ex h Mb |
| Max. flow rate | 850 L/min |
| Max. flow pressure | 8 bar |
| Operating pressure | Min. 2 bar – Max.8 bar |
| Max. suction head | 5 m |
| Max. size of solids | 8.0 mm |
| Construction Material | ALUMINUM AL-233, AISI316 |
| Intake/delivery connections | G3” – DN 80 (on request) |
| Air connection | 3/4” |
| Max. operating Temperature | 95⁰C |
| Weight Aluminum | 50.0 Kg |
| Weight AISI316 | 88.0 Kg |
| Entrada / Salida | G3” – DN 80 (a petición) |
