Explore performance details, construction highlights, applications, and technical information in one clear overview.

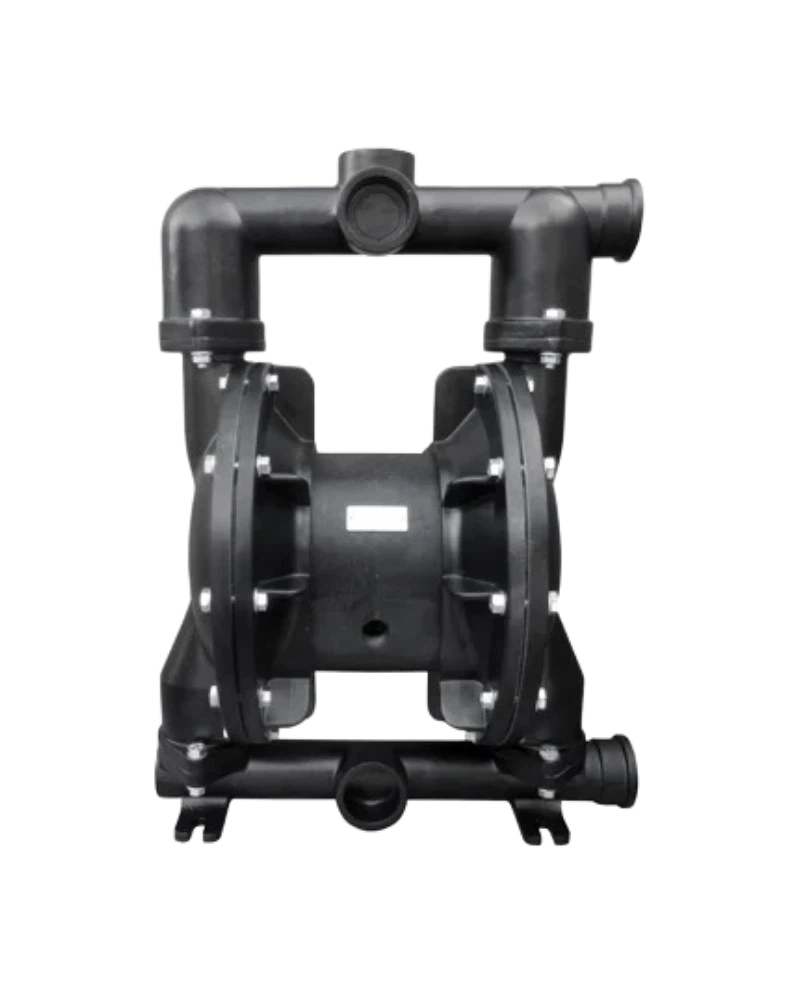

The ALPHA DYNAMIC Ruby 150 - 2 is a high-performance air-operated pump designed for demanding industrial applications. With a maximum flow rate of 696 L/min and operating pressure range of 2-8 bar, this aluminum and AISI 316 construction pump handles solids up to 8.0 mm in size and operates reliably at temperatures up to 95°C. Ideal for critical fluid transfer in hazardous environments with ATEX certifications for both gas and dust protection.
The ALPHA DYNAMIC Ruby 150 - 2 is a robust air-operated pump engineered for high-flow industrial processes requiring reliable performance in hazardous environments. Constructed from corrosion-resistant aluminum (AISI 316) to withstand aggressive media and extreme conditions, this pump delivers a maximum flow rate of 696 L/min at 8 bar pressure while maintaining operational integrity across a wide temperature range up to 95°C. Its ATEX certification ensures compliance with stringent safety standards for both gas and dust environments, making it suitable for critical applications where safety and efficiency are paramount.
The Ruby 150 - 2 meets rigorous ATEX standards for both gas and dust environments. It is certified for II 3G Ex h IIB T4 Gc (gas) and II 3D Ex h IIIB 135°C Dc (dust) protection, ensuring safe operation in explosive atmospheres. This certification allows the pump to be used in critical industrial settings where traditional electrical components would pose a fire or explosion risk.
Engineered with corrosion-resistant AISI 316 stainless steel and aluminum construction, the Ruby 150 - 2 withstands aggressive media and extreme temperatures. The aluminum body (35.0 kg) and AISI 316 body (64.0 kg) provide a balance of strength and lightweight design, while maintaining structural integrity at temperatures up to 95°C.
Delivering a maximum flow rate of 696 L/min at 8 bar pressure, the Ruby 150 - 2 is optimized for high-volume applications. Its ability to handle solids up to 8.0 mm in size ensures reliable operation without frequent maintenance, while the 5-meter dry suction head allows for flexible installation in various industrial layouts.
Ideal for industries requiring precise fluid transfer in hazardous environments, such as chemical processing, oil and gas, and pharmaceutical manufacturing. The pump's 3/4" air connection and G2" (DN 50) fluid connections facilitate seamless integration into existing pneumatic systems, ensuring compatibility with standard industrial piping and control systems.
The ALPHA DYNAMICRuby 150 - 2 is an industrial Air Operated Pumps. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Atex Certification | STANDARD : II 3G Ex h IIB T4 Gc – II 3D Ex h IIIB 135°C Dc CONDUCT : II 2/2 G/D Ex h IIC T4 Gb/Db – I M2 Ex h Mb |
| Max. flow rate | 696 L/min |
| Max. flow pressure | 8 bar |
| Operating pressure | Min. 2 bar – Max.8 bar |
| Max. suction head | 5 m |
| Max. size of solids | 8.0 mm |
| Construction Material | ALUMINUM, AISI 316 |
| Intake/delivery connections | G2” – DN 50 (on request) |
| Air connection | 3/4” |
| Max. operating Temperature | Aluminum 95⁰C , AISI316 95⁰C |
| Weight Aluminum | 35.0 Kg |
| Weight AISI316 | 64.0 Kg |
| Atex Cerification | II 2 G h IIB T4 Gb & II 2 D h IIIB 135° C Db |
