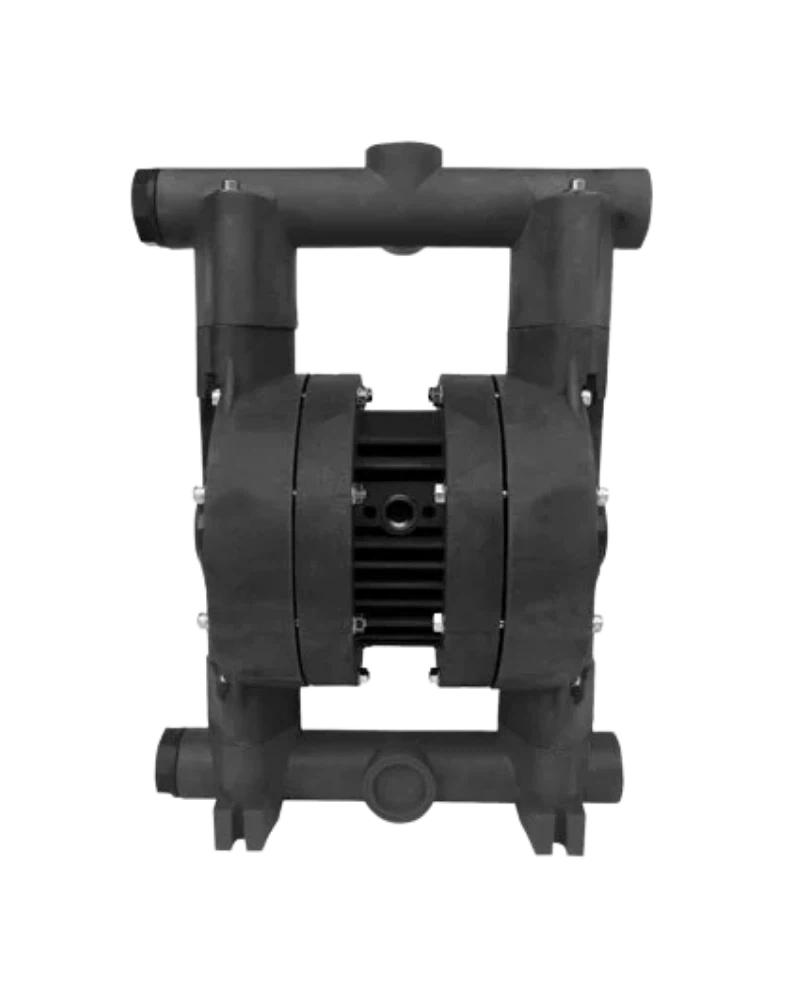

The ALPHA DYNAMIC Ruby 040 - 1 1/2 is an industrial Air Operated Pumps intended for professional equipment and system applications, with product-specific technical characteristics available for selection and integration. Key characteristics include Max. Flow rate :: 360 L/min; Max. flow pressure :: 7 bar; Operating pressure :: Min. 2 bar – Max.7 bar.
The Ruby 040 - 1 1/2 is a Air Operated Pumps intended for professional industrial applications.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
The Ruby 040 - 1 1/2 can be considered for industrial systems and equipment requiring a Air Operated Pumps. Final suitability should be evaluated against the complete system requirements.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
The ALPHA DYNAMICRuby 040 - 1 1/2 is an industrial Air Operated Pumps. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Intake/delivery connections | G 1 1/2” – DN 40 (on request) |
| Max. flow pressure | 7 bar |
| Operating pressure | Min. 2 bar – Max.7 bar |
| Max. suction head | 4 m |
| Max.size of solids | 5.0 mm |
| Atex Certification | STANDARD : II 3G Ex h IIB T4 Gc – II 3D Ex h IIIB 135°C Dc CONDUCT : II 2/2 G/D Ex h IIC T4 Gb/Db – I M2 Ex h Mb |
| Max. flow rate | 360 L/min |
| Construction Material | PP , PP+CF , PVDF+CF , AISI 316 |
| Air connection | 1/2” |
| Max. operating Temperature | PP 60⁰C , PVDF 95⁰C , AISI316 95⁰C |
| Atex Cerification | STANDARD : II 3G Ex h IIB T4 Gc – II 3D Ex h IIIB 135°C Dc CONDUCT : II 2G Ex h IIB T4 Gb – II 2D Ex h IIIB 135°C Db |
| Max. low rate | 360 L/min |
| Weight PP | 14 Kg |
| Weight PVDF+CF | 22 Kg |
| Weight AISI 316 | 30 Kg |
| Intake/delivery connections | G 1 1/2” – DN 40 (on request) |
| Tamaño maximo de sólidos | 5.0 mm |
