Explore performance details, construction highlights, applications, and technical information in one clear overview.

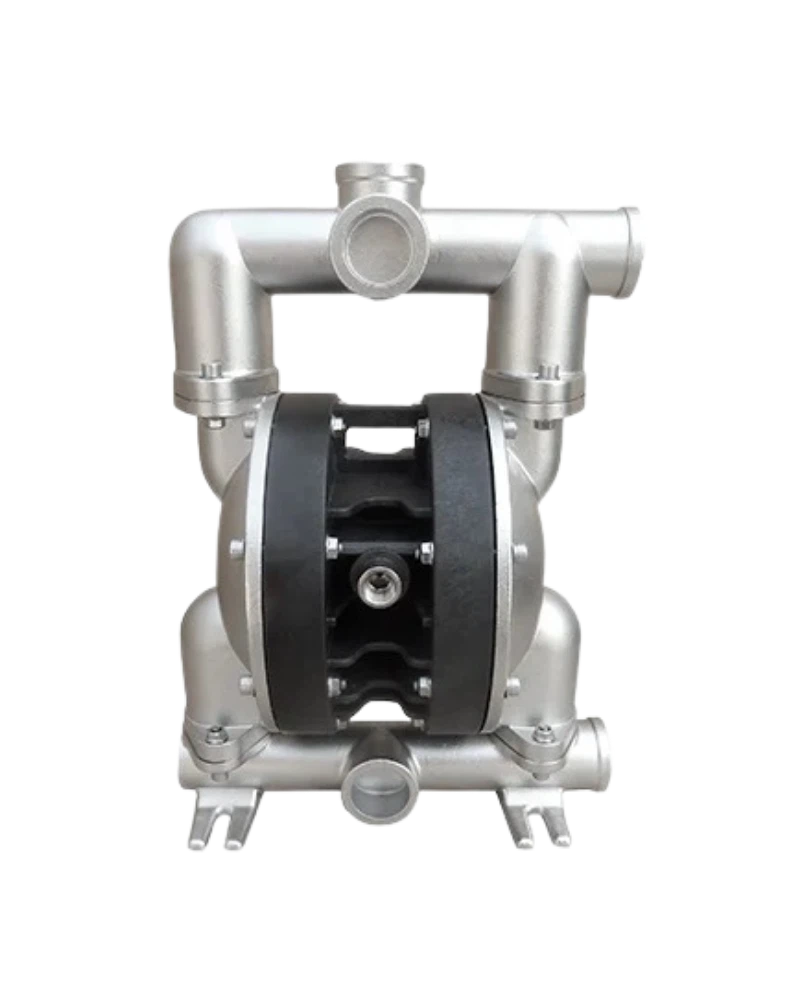

The ALPHA DYNAMIC Ruby 140 - 1 1/2 is an industrial Air Operated Pumps intended for professional equipment and system applications, with product-specific technical characteristics available for selection and integration. Key characteristics include Max. flow rate :: 380 L/min; Max. flow pressure :: 8 bar; Operating pressure :: Min. 2 bar – Max.8 bar.
The Ruby 140 - 1 1/2 is a Air Operated Pumps intended for professional industrial applications.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
The Ruby 140 - 1 1/2 can be considered for industrial systems and equipment requiring a Air Operated Pumps. Final suitability should be evaluated against the complete system requirements.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
The ALPHA DYNAMICRuby 140 - 1 1/2 is an industrial Air Operated Pumps. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Atex Certification | STANDARD : II 3G Ex h IIB T4 Gc – II 3D Ex h IIIB 135°C Dc CONDUCT : II 2/2 G/D Ex h IIC T4 Gb/Db – I M2 Ex h Mb |
| Max. flow rate | 380 L/min |
| Max. flow pressure | 8 bar |
| Operating pressure | Min. 2 bar – Max.8 bar |
| Max. suction head | 5 m |
| Max. size of solids | 5.0 mm |
| Max. operating Temperature | PP: 60°C, PP+CF: 60°C, PVDF: 95°C, ALU: 95°C, with metallic center block 130°C |
| Weight | PP: 14 Kg, PVDF: 22 Kg, ALU: 14 Kg, AISI 316: 26 Kg |
| Construction Material | PP, PVDF+CF, PP+CF, Aluminum – 233, Aisi 316 |
| Intake/delivery connections | 1 ½ ” BSP F |
| Air connection | 1/2” |
