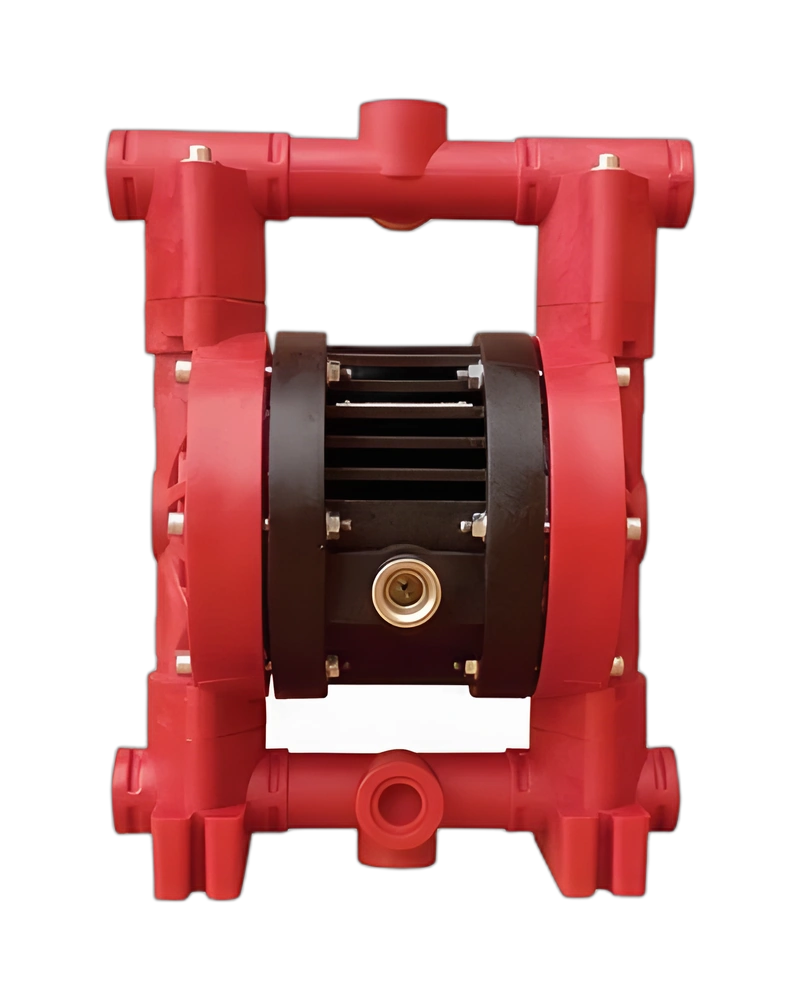

The Ruby 020 – 3/4” from ALPHA DYNAMIC is an industrial Air Operated Pumps intended for professional equipment and system applications. The available product-specific technical information provides a practical basis for evaluation, selection and integration.
The documented technical characteristics for this model include Atex Certification :: STANDARD : II 3G Ex h IIB T4 Gc – II 3D Ex h IIIB 135°C Dc CONDUCT : II 2/2 G/D Ex h IIC T4 Gb/Db – I M2 Ex h Mb; Intake/delivery connections :: G 3/4” – DN 20 (on request); Max. flow rate :: 115 L/min; Max. flow pressure :: 8 bar; Operating pressure :: Min. 2 bar – Max.8 bar; Max. suction head :: 3 m; Max. size of solids :: 3.0 mm; Air connection :: 1/2”. These values should be considered together with the process, equipment configuration and operating requirements of the intended application.
The available product information identifies Atex Certification :: STANDARD : II 3G Ex h IIB T4 Gc – II 3D Ex h IIIB 135°C Dc CONDUCT : II 2/2 G/D Ex h IIC T4 Gb/Db – I M2 Ex h Mb; Intake/delivery connections :: G 3/4” – DN 20 (on request); Max. flow rate :: 115 L/min.
The Ruby 020 – 3/4” can be evaluated for industrial systems and equipment requiring a Air Operated Pumps. Final application suitability depends on the process conditions, system configuration and the verified characteristics required for the installation.
When integrating the product, verify the applicable connections, mounting arrangement, operating conditions and compatibility requirements against the manufacturer's technical documentation.
For engineering and procurement decisions, compare the documented characteristics with the requirements of the intended application. Particular attention should be given to performance, connections, operating conditions, construction and other model-specific values.
The ALPHA DYNAMICRuby 020 – 3/4” is an industrial Air Operated Pumps for application-specific evaluation and selection. The verified technical information should be reviewed alongside the actual system requirements before purchase or installation.
| Feature | Specification |
|---|---|
| Atex Certification | STANDARD : II 3G Ex h IIB T4 Gc – II 3D Ex h IIIB 135°C Dc CONDUCT : II 2/2 G/D Ex h IIC T4 Gb/Db – I M2 Ex h Mb |
| Intake/delivery connections | G 3/4” – DN 20 (on request) |
| Max. flow rate | 115 L/min |
| Max. flow pressure | 8 bar |
| Operating pressure | Min. 2 bar – Max.8 bar |
| Max. suction head | 3 m |
| Max. size of solids | 3.0 mm |
| Air connection | 1/2” |
| Max. operating Temperature | PP 60⁰C , PVDF 95⁰C |
| Weight PP | 4.0 Kg |
| Weight PVDF+CF | 5.5 Kg |
