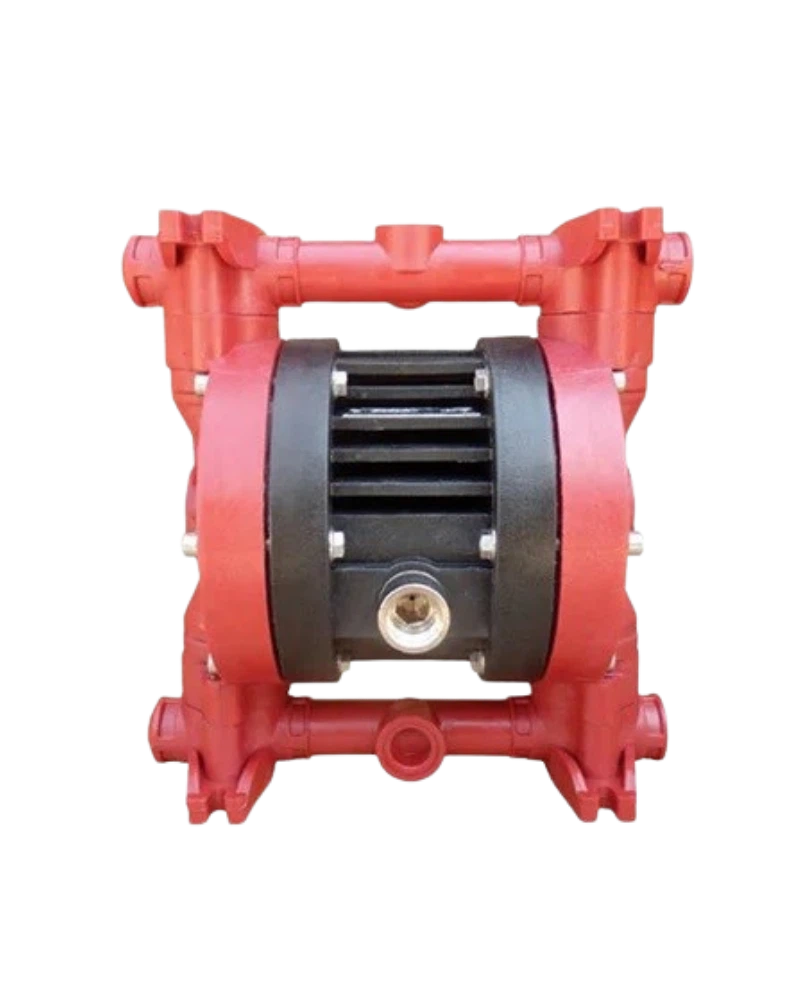

The ALPHA DYNAMIC Ruby 115 – 1/2" Air Operated Pump delivers reliable performance with a max flow rate of 72 L/min and operates within 2-8 bar pressure. Featuring ATEX certification for hazardous environments, this pump handles solids up to 3.0 mm and is available in multiple materials including PP, PVDF, aluminum, and AISI316 for diverse industrial applications.
The ALPHA DYNAMIC Ruby 115 – 1/2" Air Operated Pump is a robust, certified solution designed for demanding industrial environments. Engineered to handle high flow rates up to 72 L/min and operate within a pressure range of 2-8 bar, this pump excels in applications requiring precise fluid movement under varying conditions. Its ATEX certification ensures compliance with stringent safety standards for explosive atmospheres, while the ability to manage solids as small as 3.0 mm makes it ideal for handling abrasive or particulate-laden fluids. With material options ranging from PP to AISI316, the Ruby 115 adapts to a wide spectrum of operational needs without compromising on safety or efficiency.
The ALPHA DYNAMIC Ruby 115 – 1/2" pump is engineered with flexibility in material selection to match specific environmental and operational demands. Options include: Polypropylene (PP) for cost-effective use in non-corrosive applications, PP reinforced with carbon fiber (PP+CF) for enhanced strength, PVDF reinforced with carbon fiber (PVDF+CF) for chemical resistance, aluminum for high-temperature environments, and AISI316 stainless steel for corrosion resistance in aggressive conditions. Each material variant ensures optimal performance while maintaining ATEX compliance.
Designed for reliability in hazardous settings, the Ruby 115 meets strict ATEX standards for explosive atmospheres. It operates within a pressure range of 2-8 bar, delivering a maximum flow rate of 72 L/min. The pump handles solids up to 3.0 mm, making it suitable for applications involving particulate matter.
The pump's temperature tolerance varies by material: PP and PP+CF withstand up to 60°C, while aluminum, PVDF+CF, and AISI316 handle temperatures up to 95°C. This adaptability allows the Ruby 15 to function effectively in both high-temperature and low-temperature environments, ensuring longevity and safety across diverse industrial conditions.
The Ruby 115 features a standard 1/2" air connection and fluid connections (G 1/2" – DN 15 on request), simplifying integration into existing pneumatic systems. Its compact design and robust construction ensure seamless installation without requiring extensive modifications to existing infrastructure.
The ALPHA DYNAMICRuby 115 – 1/2” is an industrial Air Operated Pumps. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Atex Certification | STANDARD : II 3G Ex h IIB T4 Gc – II 3D Ex h IIIB 135°C Dc CONDUCT : II 2/2 G/D Ex h IIC T4 Gb/Db – I M2 Ex h Mb |
| Intake/delivery connections | G 1/2” – DN 15 (on request) |
| Max. flow rate | 72 L/min |
| Max. flow pressure | 8 bar |
| Operating pressure | Min. 2 bar – Max.8 bar |
| Max. suction head | 3 m |
| Max. size of solids | 3.0 mm |
| Construction Material | PP , PP+CF , PVDF+CF , ALUMINUM , AISI316 |
| Air connection | 1/2” |
| Max. operating Temperature | PP 60⁰C , PVDF 95⁰C , Aluminum 95⁰C , AISI316 95⁰C |
| Weight PP | 4.0 Kg |
| Weight PVDF+CF | 5.5 Kg |
| Weight AISI316 | 9.0 Kg |
| Caudal maximo | 74 L/min |
| Altura de elevación máx. | 80 m |
| Tamaño maximo de sólidos | 3 mm |
