Explore performance details, construction highlights, applications, and technical information in one clear overview.

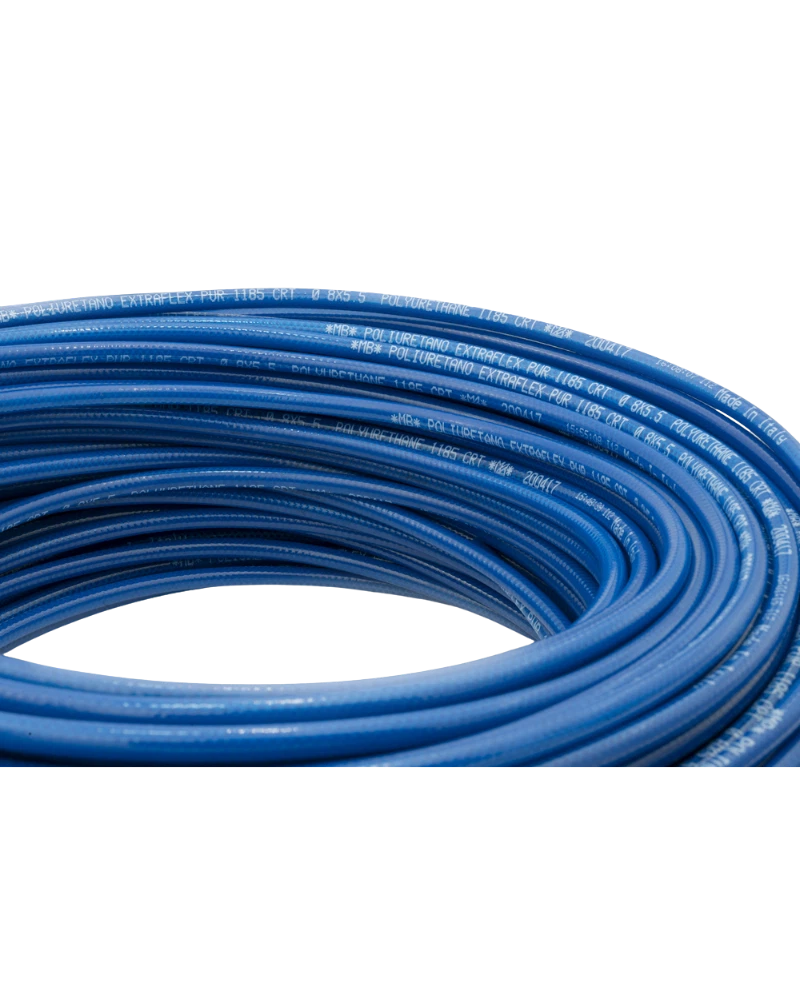

POLYURETHANE 1185 CRT is a Mebra Tubes solution based on Ether polyurethane + PET reinforcement, selected for demanding tube-routing, pneumatic, fluid-transfer or specialist industrial requirements. The product profile combines the material, construction and application characteristics documented for this exact Mebra product family.
Multilayer polyurethane tube with inner and outer ether-polyurethane layers and a high-modulus PET textile reinforcement woven with scissor mesh. The outer layer is antistatic and lubricated for improved sliding between coils. Flexibility 8.3, lightness 6, chemical resistance 5, low-temperature resistance 10, high-temperature resistance 3, hardness 5, dimensional stability 10, abrasion resistance 10. Optional dissipative/antistatic version has electrical resistivity 10^6. Recommended fit fittings or elbow and strap ties. Standard lengths 25/50/100 m. Operating temperature -40°C to 60°C; safety factor 3:1. Example 185CRT5.5X8: 5.5/8 mm, 1.25 mm wall; 185CRT13X19: 13/19 mm, 3 mm wall.
The documented technical profile is intended to support correct selection by considering pressure, temperature, dimensional, flexibility, chemical, abrasion, electrical and environmental requirements as applicable to the product. Where the product page provides numerical ratings, those values are retained rather than replaced with generic estimates.
The Mebra product information includes exact dimensional variants, tubing geometry, wall thickness, bending requirements, working-pressure information and/or configuration data where applicable. These values should be selected according to the required tube size and application conditions.
Temperature and pressure limits are application-dependent and must be selected from the documented product range. The technical information above preserves the published operating ranges, safety factor information and size-specific values available for POLYURETHANE 1185 CRT.
POLYURETHANE 1185 CRT is suited to the application areas documented for this product, including industrial automation, pneumatic equipment, vacuum systems, machine tools, robotics, fluid handling, automotive, food-contact, welding, cable-carrier or specialist environments where applicable to the selected construction.
Connection and installation should follow the product-specific fitting recommendations and dimensional requirements. Correct tube cutting, support, bending radius and fitting selection are important for maintaining sealing, pressure performance and service life.
Depending on the product, available options include color, diameter, length, packaging, marking/stamp, straight-cut pieces, preformed designs, tube-in-bar formats, multi-tube configurations and other documented customizations.
POLYURETHANE 1185 CRT provides a product-specific combination of material characteristics, dimensions, operating limits and application suitability. Use the exact size, configuration and operating conditions shown in the technical information for final selection.
| Specification | Technical value / content |
|---|---|
| Product family | POLYURETHANE 1185 CRT |
| Material | Ether polyurethane + PET reinforcement |
| Technical data | Multilayer polyurethane tube with inner and outer ether-polyurethane layers and a high-modulus PET textile reinforcement woven with scissor mesh. |
| Technical data | The outer layer is antistatic and lubricated for improved sliding between coils. |
| Operating temperature | Flexibility 8.3, lightness 6, chemical resistance 5, low-temperature resistance 10, high-temperature resistance 3, hardness 5, dimensional stability 10, abrasion resistance 10. |
| Technical data | Optional dissipative/antistatic version has electrical resistivity 10^6. |
| Applications / recommendations | Recommended fit fittings or elbow and strap ties. |
| Standard lengths | Standard lengths 25/50/100 m. |
| Operating temperature | Operating temperature -40°C to 60°C; safety factor 3:1. |
| Technical data | Example 185CRT5.5X8: 5.5/8 mm, 1.25 mm wall; 185CRT13X19: 13/19 mm, 3 mm wall. |
