Explore performance details, construction highlights, applications, and technical information in one clear overview.

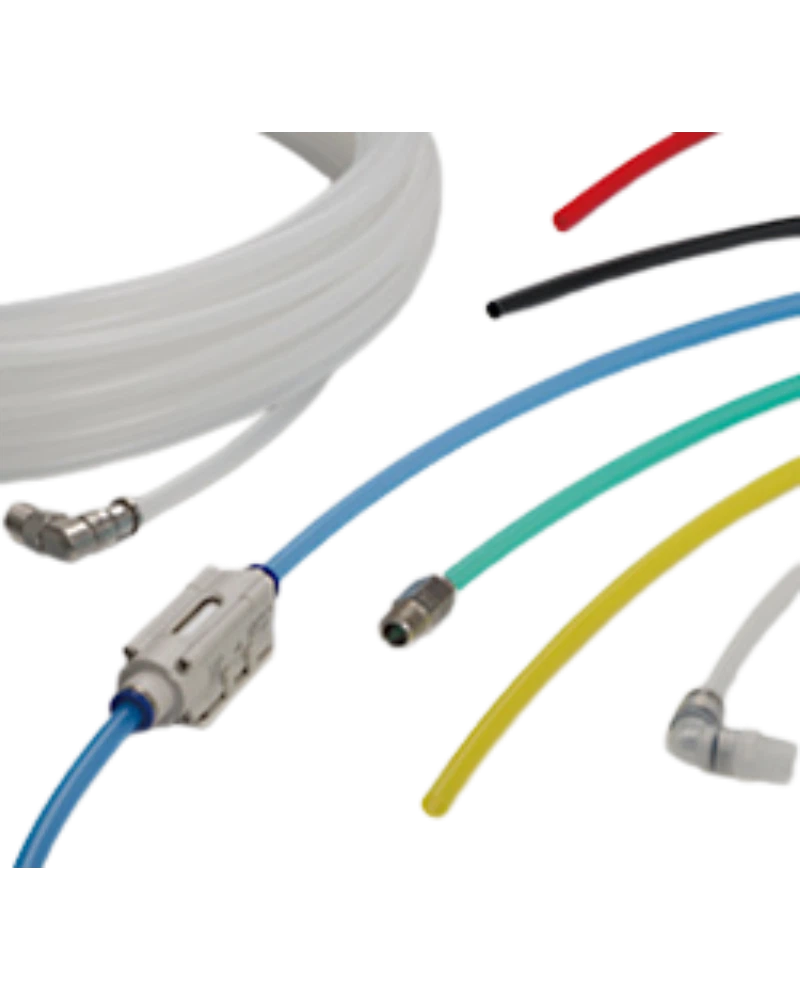

This polyolefin tube series is specifically engineered for applications requiring reliable flow performance in clean environments. Designed to maintain consistent fluid movement, it ensures efficient transport of air, water, or other compatible chemicals under controlled conditions, making it ideal for use in sensitive industrial and cleanroom settings where flow integrity is critical.
The product is constructed from a polyolefin-based resin that meets the requirements for clean environments. It is formulated to provide sufficient flow rate while maintaining chemical resistance and durability. The material complies with Japan Food Sanitation Act standards, ensuring suitability for food-related applications when appropriate hygiene conditions are met.
The tube features a standard configuration with threaded or flanged connections as applicable—though specific connection types are not detailed in the product data. All tubes are available in a range of sizes, with dimensions up to φ16 × φ13 (inches), offering flexibility for integration into various piping systems.
Operating characteristics include a maximum operating pressure of 1.0MPa at 65% relative humidity and 20°C, or 0.7MPa under the same conditions depending on application requirements. The maximum vacuum capacity is -100kPa. The system operates within a temperature range of -15ºC to 80ºC, with no freezing risk in use.
Available in 12 sizes (in inch dimensions), this product offers precise sizing options up to φ16 × φ13. Six distinct colors are offered, including five clear variants in addition to black—providing visual identification and flexibility for system design and compliance with cleanroom standards. Cleanroom packaging is available upon request.
Integration points include standard tube-to-tube or tube-to-fitting connections suitable for use in piping systems where flow rate consistency is essential. The product supports direct installation into clean environments, with no specific fittings or adapters mentioned in the technical data.
| Specification | Details |
|---|---|
| Fluid medium | Air, Water (Conditional *1), Other chemicals (Conditional *1) |
| Max. operating pressure (65%RH at 20º) | 1.0MPa *2 | 0.7MPa (*2) |
| Max. vacuum | -100kPa |
| Operating temperature range | -15 to 80ºC (No freezing) |
| Material | Made of polyolefin-based resin suitable for clean environments. A polyolefin tube series designed to secure sufficient flow rate. Available in 6 colors and 12 sizes. (Inch sizes available) | Made of materials compliant with Japan Food Sanitation Act |
| Available options | Tube sizes are available up to φ16 × φ13 | Tube colors: 6 colors. Available in 12 sizes. (Inch sizes available) |
