RILSAN® PA 11 PHL SPIRAL HOSE Overview

POLYAMIDE TUBING - RILSAN® PA 11 PHL SPIRAL HOSE is a Mebra Tubes solution based on PA 11, selected for demanding tube-routing, pneumatic, fluid-transfer or specialist industrial requirements. The product profile combines the material, construction and application characteristics documented for this exact Mebra product family.

Product Construction and Material

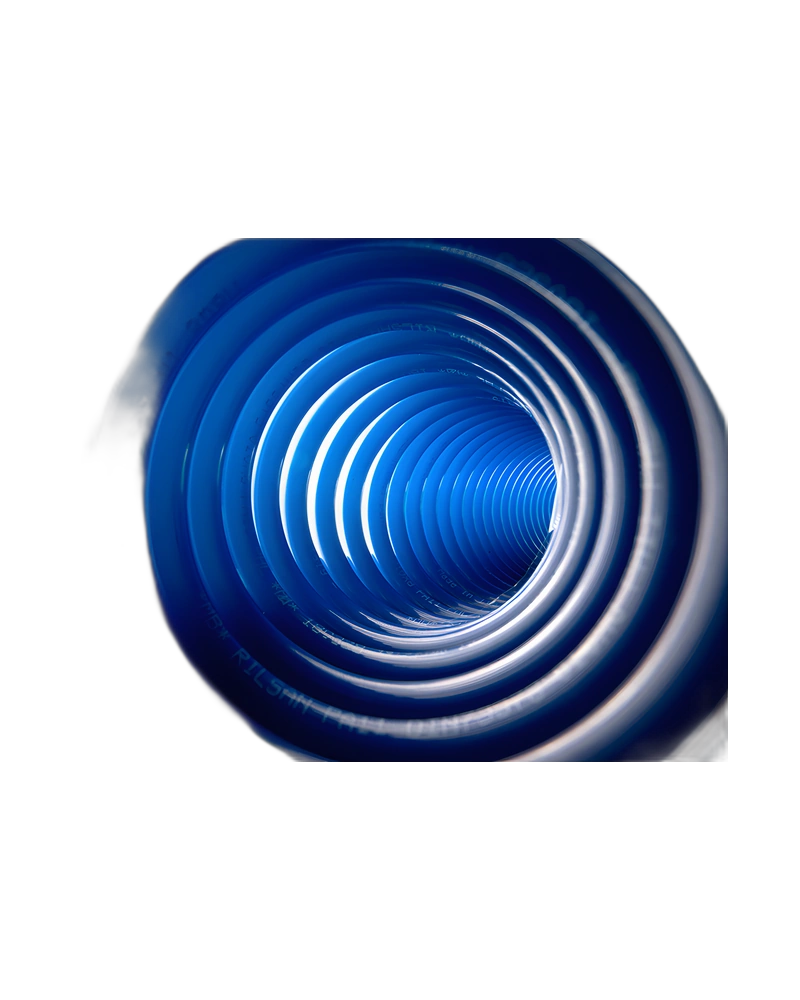

Flexible spiral hose in vegetable-origin Rilsan® PA 11 PHL. Flexibility 8.5, lightness 8.5, chemical resistance 8, low-temperature resistance 8, high-temperature resistance 6.5, hardness 4.3. Designed for excellent elastic working memory, flexibility, abrasion resistance and longevity. Industrial automation, robotics, machine tools, vacuum and chemical-resistance applications. Standard examples: SR2X4X2.5C is 2 mm ID, 4 mm OD, 1 mm wall, 44 BAR, 2.5 m material length, 1.5 m working length, 92 mm retracted length, 22 turns/load value, 100/100 mm tails, 30 mm winding diameter and 38 mm outer diameter; SR2X4X10 and SR2X4X20 are also listed. Custom spirals and preformed designs, including electrical cables, are available on request.

Technical Performance

The documented technical profile is intended to support correct selection by considering pressure, temperature, dimensional, flexibility, chemical, abrasion, electrical and environmental requirements as applicable to the product. Where the product page provides numerical ratings, those values are retained rather than replaced with generic estimates.

Dimensions and Product Range

The Mebra product information includes exact dimensional variants, tubing geometry, wall thickness, bending requirements, working-pressure information and/or configuration data where applicable. These values should be selected according to the required tube size and application conditions.

Operating Conditions

Temperature and pressure limits are application-dependent and must be selected from the documented product range. The technical information above preserves the published operating ranges, safety factor information and size-specific values available for RILSAN® PA 11 PHL SPIRAL HOSE.

Applications

POLYAMIDE TUBING - RILSAN® PA 11 PHL SPIRAL HOSE is suited to the application areas documented for this product, including industrial automation, pneumatic equipment, vacuum systems, machine tools, robotics, fluid handling, automotive, food-contact, welding, cable-carrier or specialist environments where applicable to the selected construction.

Installation and Compatibility

Connection and installation should follow the product-specific fitting recommendations and dimensional requirements. Correct tube cutting, support, bending radius and fitting selection are important for maintaining sealing, pressure performance and service life.

Customization and Supply Options

Depending on the product, available options include color, diameter, length, packaging, marking/stamp, straight-cut pieces, preformed designs, tube-in-bar formats, multi-tube configurations and other documented customizations.

Technical Selection Summary

RILSAN® PA 11 PHL SPIRAL HOSE provides a product-specific combination of material characteristics, dimensions, operating limits and application suitability. Use the exact size, configuration and operating conditions shown in the technical information for final selection.
