RILSAN® PA 11 PHL Overview

POLYAMIDE TUBING - RILSAN® PA 11 PHL is a Mebra Tubes solution based on PA 11, selected for demanding tube-routing, pneumatic, fluid-transfer or specialist industrial requirements. The product profile combines the material, construction and application characteristics documented for this exact Mebra product family.

Product Construction and Material

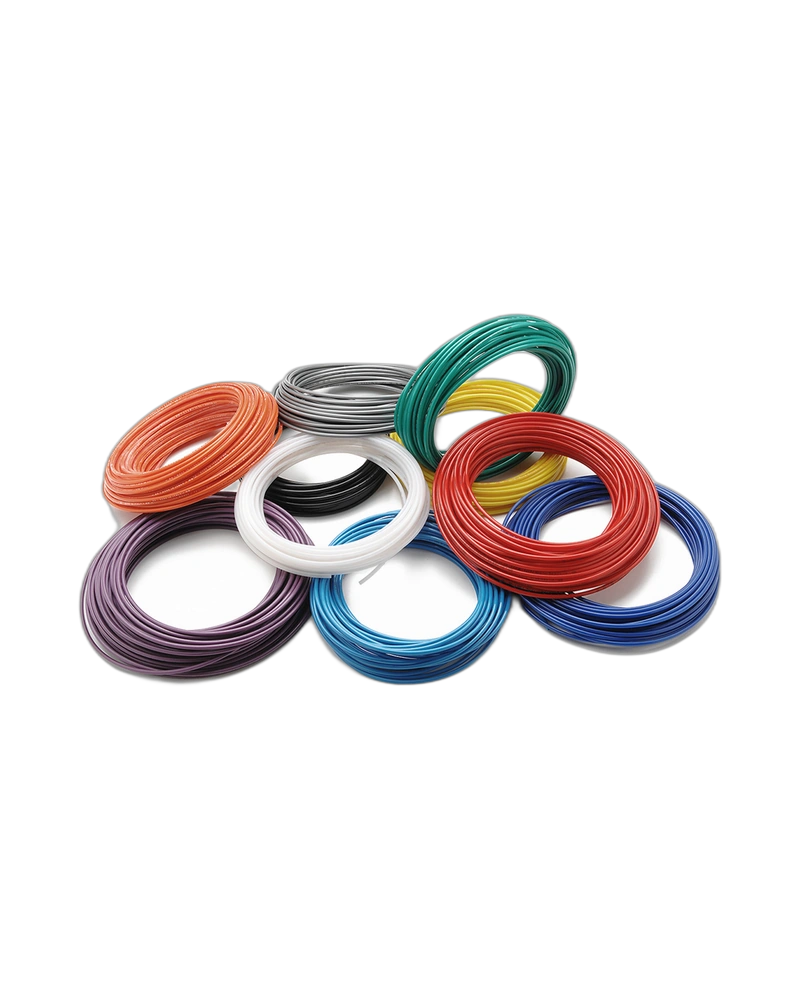

Flexible linear bio-polyamide 11 tubing produced from renewable sources derived from castor oil. Flexibility 8.5, lightness 8.5, chemical resistance 8, low-temperature resistance 8, high-temperature resistance 6.5, hardness 4.3. DIN 73378, DIN 74324 and ISO 7628:2010 references. Standard lengths depend on diameter: 100 m for Øe/oØ ≤3 mm; 25/50/100 m for 4–24 mm; 25/50 m for ≥25 mm. Operating temperature -40°C to 80°C; safety factor 3:1. Applications include industrial automation, vacuum, machine tools, robotics, chemical resistance, disinfestation, petroleum derivatives transfer, clutch and air-brake systems. Example code TR1X2: 1 mm ID, 2 mm OD, 0.5 mm wall, 10 mm minimum bend radius, 44 BAR at 23°C.

Technical Performance

The documented technical profile is intended to support correct selection by considering pressure, temperature, dimensional, flexibility, chemical, abrasion, electrical and environmental requirements as applicable to the product. Where the product page provides numerical ratings, those values are retained rather than replaced with generic estimates.

Dimensions and Product Range

The Mebra product information includes exact dimensional variants, tubing geometry, wall thickness, bending requirements, working-pressure information and/or configuration data where applicable. These values should be selected according to the required tube size and application conditions.

Operating Conditions

Temperature and pressure limits are application-dependent and must be selected from the documented product range. The technical information above preserves the published operating ranges, safety factor information and size-specific values available for RILSAN® PA 11 PHL.

Applications

POLYAMIDE TUBING - RILSAN® PA 11 PHL is suited to the application areas documented for this product, including industrial automation, pneumatic equipment, vacuum systems, machine tools, robotics, fluid handling, automotive, food-contact, welding, cable-carrier or specialist environments where applicable to the selected construction.

Installation and Compatibility

Connection and installation should follow the product-specific fitting recommendations and dimensional requirements. Correct tube cutting, support, bending radius and fitting selection are important for maintaining sealing, pressure performance and service life.

Customization and Supply Options

Depending on the product, available options include color, diameter, length, packaging, marking/stamp, straight-cut pieces, preformed designs, tube-in-bar formats, multi-tube configurations and other documented customizations.

Technical Selection Summary

RILSAN® PA 11 PHL provides a product-specific combination of material characteristics, dimensions, operating limits and application suitability. Use the exact size, configuration and operating conditions shown in the technical information for final selection.
