PA 12 HL RIGID LINEAR HOSE HIGH RESISTANCE Overview

POLYAMIDE TUBING - PA 12 HL RIGID LINEAR HOSE HIGH RESISTANCE is a Mebra Tubes solution based on PA 12 HL, selected for demanding tube-routing, pneumatic, fluid-transfer or specialist industrial requirements. The product profile combines the material, construction and application characteristics documented for this exact Mebra product family.

Product Construction and Material

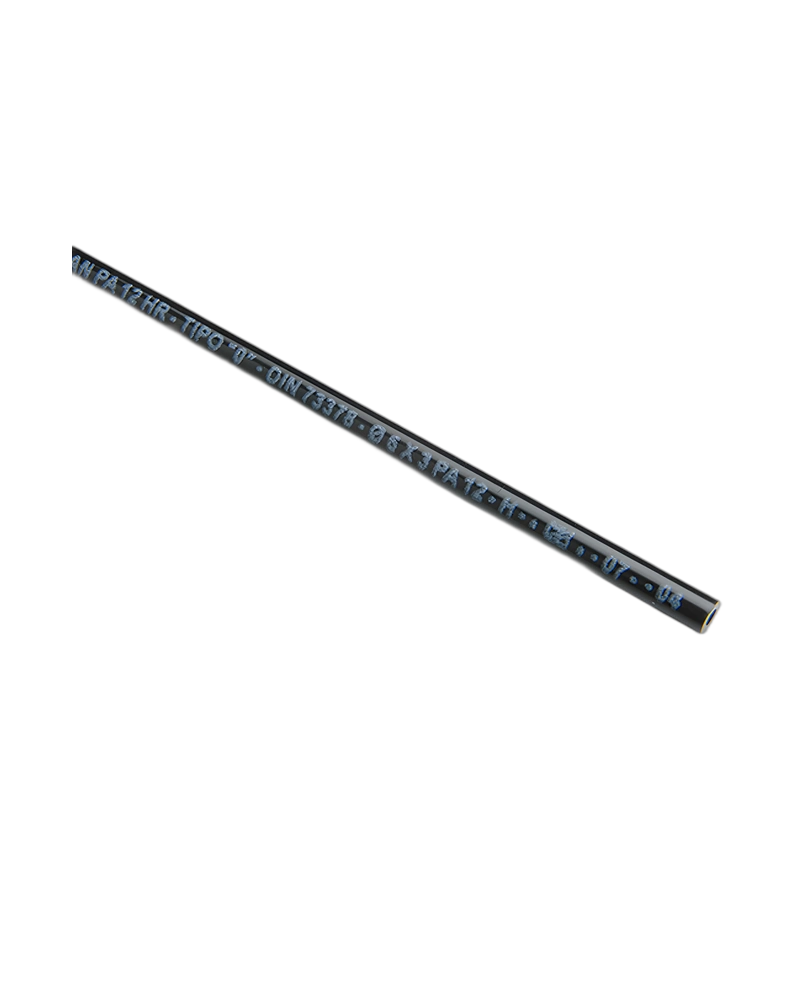

Semi-rigid non-plasticized PA 12 PHL tubing stabilized to light and heat for higher-than-standard compressed-air pressures. Flexibility 3, lightness 9, chemical resistance 7.5, low-temperature resistance 6, high-temperature resistance 6.5, hardness 7.1. DIN 73378/74324 raw-material requirements. Operating temperature -40°C to 80°C; safety factor 3:1. Standard lengths include 100 m for OD ≤3 mm and 25/50/100 m for larger diameters. Example 12R0-2.5X4: 2.5 mm ID, 4 mm OD, 0.75 mm wall, 20 mm bend radius, 64 BAR at 23°C; 12R0-4X6 is 56 BAR; 12R0-6X10 is 70 BAR. Applications include automation, vacuum, lubrication, nebulization, machine tools, chemical and hydrolysis resistance.

Technical Performance

The documented technical profile is intended to support correct selection by considering pressure, temperature, dimensional, flexibility, chemical, abrasion, electrical and environmental requirements as applicable to the product. Where the product page provides numerical ratings, those values are retained rather than replaced with generic estimates.

Dimensions and Product Range

The Mebra product information includes exact dimensional variants, tubing geometry, wall thickness, bending requirements, working-pressure information and/or configuration data where applicable. These values should be selected according to the required tube size and application conditions.

Operating Conditions

Temperature and pressure limits are application-dependent and must be selected from the documented product range. The technical information above preserves the published operating ranges, safety factor information and size-specific values available for PA 12 HL RIGID LINEAR HOSE HIGH RESISTANCE.

Applications

POLYAMIDE TUBING - PA 12 HL RIGID LINEAR HOSE HIGH RESISTANCE is suited to the application areas documented for this product, including industrial automation, pneumatic equipment, vacuum systems, machine tools, robotics, fluid handling, automotive, food-contact, welding, cable-carrier or specialist environments where applicable to the selected construction.

Installation and Compatibility

Connection and installation should follow the product-specific fitting recommendations and dimensional requirements. Correct tube cutting, support, bending radius and fitting selection are important for maintaining sealing, pressure performance and service life.

Customization and Supply Options

Depending on the product, available options include color, diameter, length, packaging, marking/stamp, straight-cut pieces, preformed designs, tube-in-bar formats, multi-tube configurations and other documented customizations.

Technical Selection Summary

PA 12 HL RIGID LINEAR HOSE HIGH RESISTANCE provides a product-specific combination of material characteristics, dimensions, operating limits and application suitability. Use the exact size, configuration and operating conditions shown in the technical information for final selection.
