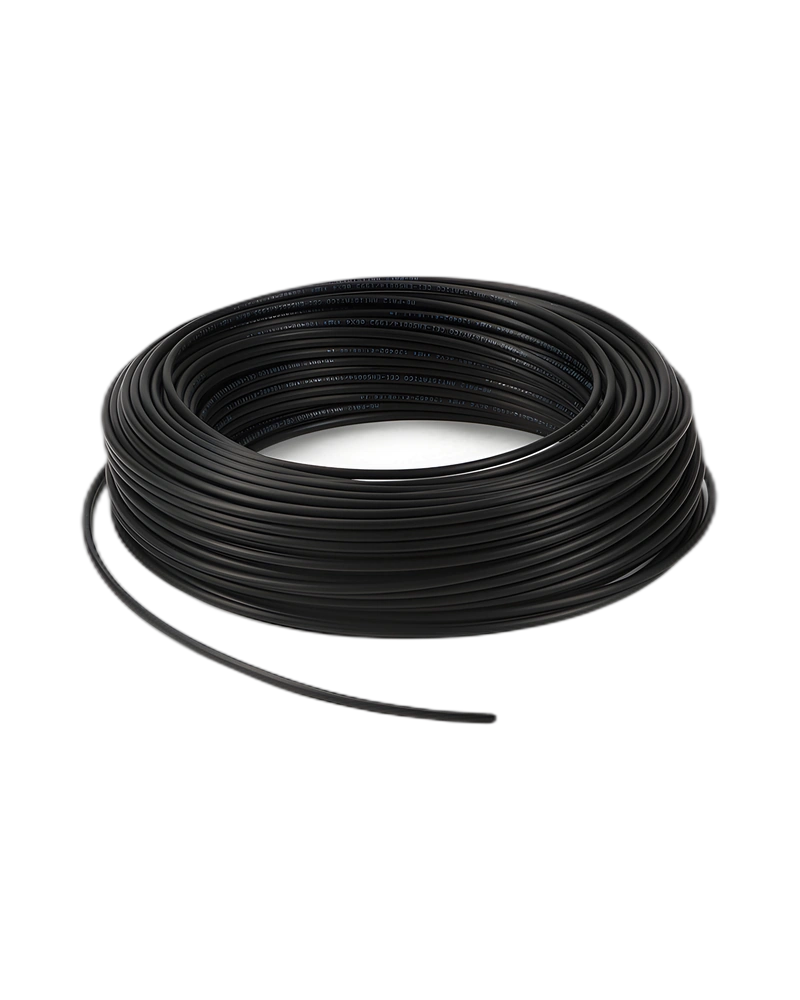

POLYAMIDE TUBING - PA 12 ANTISTATIC is a Mebra Tubes solution based on PA 12 PHL, selected for demanding tube-routing, pneumatic, fluid-transfer or specialist industrial requirements. The product profile combines the material, construction and application characteristics documented for this exact Mebra product family.
Flexible triple-layer low-pressure antistatic PA 12 tube. Inner and outer dissipative PA 12 PHL layers have surface electrical resistivity <10^6 Ohm according to ISO 8031:2009(E), with an intermediate PA 12 layer providing gas-barrier properties. Suitable for ATEX Group 2, categories 2/3 G&D, zones 1, 21, 2 and 22. Flexibility 8, lightness 8, chemical resistance 7.5, low-temperature resistance 6, high-temperature resistance 6.5. Standard lengths 25/50/100 m. Operating temperature -30°C to 80°C; safety factor 3:1. Example 12RA2.5X4: 2.5/4 mm, 0.75 mm wall, 20 mm bend radius, 24 BAR at 23°C; 12RA4X6: 21 BAR; 12RA8X10: 11 BAR.
The documented technical profile is intended to support correct selection by considering pressure, temperature, dimensional, flexibility, chemical, abrasion, electrical and environmental requirements as applicable to the product. Where the product page provides numerical ratings, those values are retained rather than replaced with generic estimates.
The Mebra product information includes exact dimensional variants, tubing geometry, wall thickness, bending requirements, working-pressure information and/or configuration data where applicable. These values should be selected according to the required tube size and application conditions.
Temperature and pressure limits are application-dependent and must be selected from the documented product range. The technical information above preserves the published operating ranges, safety factor information and size-specific values available for PA 12 ANTISTATIC.
POLYAMIDE TUBING - PA 12 ANTISTATIC is suited to the application areas documented for this product, including industrial automation, pneumatic equipment, vacuum systems, machine tools, robotics, fluid handling, automotive, food-contact, welding, cable-carrier or specialist environments where applicable to the selected construction.
Connection and installation should follow the product-specific fitting recommendations and dimensional requirements. Correct tube cutting, support, bending radius and fitting selection are important for maintaining sealing, pressure performance and service life.
Depending on the product, available options include color, diameter, length, packaging, marking/stamp, straight-cut pieces, preformed designs, tube-in-bar formats, multi-tube configurations and other documented customizations.
PA 12 ANTISTATIC provides a product-specific combination of material characteristics, dimensions, operating limits and application suitability. Use the exact size, configuration and operating conditions shown in the technical information for final selection.
| Specification | Technical value / content |
|---|---|
| Product family | PA 12 ANTISTATIC |
| Material | PA 12 PHL |
| Technical data | Flexible triple-layer low-pressure antistatic PA 12 tube. |
| Pressure / pressure rating | Inner and outer dissipative PA 12 PHL layers have surface electrical resistivity <10^6 Ohm according to ISO 8031:2009(E), with an intermediate PA 12 layer providing gas-barrier properties. |
| Technical data | Suitable for ATEX Group 2, categories 2/3 G&D, zones 1, 21, 2 and 22. |
| Operating temperature | Flexibility 8, lightness 8, chemical resistance 7.5, low-temperature resistance 6, high-temperature resistance 6.5. |
| Standard lengths | Standard lengths 25/50/100 m. |
| Operating temperature | Operating temperature -30°C to 80°C; safety factor 3:1. |
| Pressure / pressure rating | Example 12RA2.5X4: 2.5/4 mm, 0.75 mm wall, 20 mm bend radius, 24 BAR at 23°C; 12RA4X6: 21 BAR; 12RA8X10: 11 BAR. |
