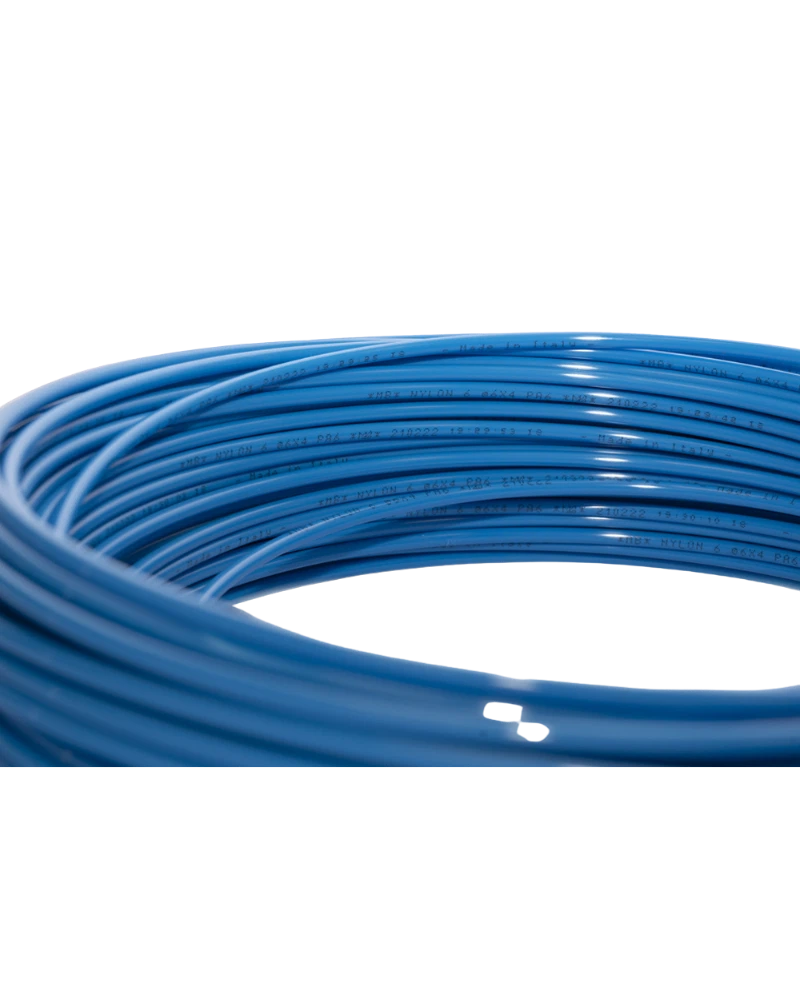

POLYAMIDE TUBING - NYLON PA 6 is a Mebra Tubes solution based on Nylon PA 6, selected for demanding tube-routing, pneumatic, fluid-transfer or specialist industrial requirements. The product profile combines the material, construction and application characteristics documented for this exact Mebra product family.
Rigid linear tube in non-plasticized PA 6. Flexibility 6, lightness 5, chemical resistance 6, low-temperature resistance 6, high-temperature resistance 6.5 and hardness 7.5. Moisture absorption can reach 10%, so controlled environments are recommended where dimensional stability is important. Standard lengths: 1000 m for 2 mm OD, 100 m for 3 mm OD and 25/50/100 m for 4–18 mm OD. Operating temperature -10°C to 80°C; safety factor 3:1. Example TN2.5X4: 2.5 mm ID, 4 mm OD, 0.75 mm wall, 25 mm minimum bend radius, 38 BAR at 23°C. Applications include industrial automation, vacuum and machine tools.
The documented technical profile is intended to support correct selection by considering pressure, temperature, dimensional, flexibility, chemical, abrasion, electrical and environmental requirements as applicable to the product. Where the product page provides numerical ratings, those values are retained rather than replaced with generic estimates.
The Mebra product information includes exact dimensional variants, tubing geometry, wall thickness, bending requirements, working-pressure information and/or configuration data where applicable. These values should be selected according to the required tube size and application conditions.
Temperature and pressure limits are application-dependent and must be selected from the documented product range. The technical information above preserves the published operating ranges, safety factor information and size-specific values available for NYLON PA 6.
POLYAMIDE TUBING - NYLON PA 6 is suited to the application areas documented for this product, including industrial automation, pneumatic equipment, vacuum systems, machine tools, robotics, fluid handling, automotive, food-contact, welding, cable-carrier or specialist environments where applicable to the selected construction.
Connection and installation should follow the product-specific fitting recommendations and dimensional requirements. Correct tube cutting, support, bending radius and fitting selection are important for maintaining sealing, pressure performance and service life.
Depending on the product, available options include color, diameter, length, packaging, marking/stamp, straight-cut pieces, preformed designs, tube-in-bar formats, multi-tube configurations and other documented customizations.
NYLON PA 6 provides a product-specific combination of material characteristics, dimensions, operating limits and application suitability. Use the exact size, configuration and operating conditions shown in the technical information for final selection.
| Specification | Technical value / content |
|---|---|
| Product family | NYLON PA 6 |
| Material | Nylon PA 6 |
| Technical data | Rigid linear tube in non-plasticized PA 6. |
| Operating temperature | Flexibility 6, lightness 5, chemical resistance 6, low-temperature resistance 6, high-temperature resistance 6.5 and hardness 7.5. |
| Applications / recommendations | Moisture absorption can reach 10%, so controlled environments are recommended where dimensional stability is important. |
| Standard lengths | Standard lengths: 1000 m for 2 mm OD, 100 m for 3 mm OD and 25/50/100 m for 4–18 mm OD. |
| Operating temperature | Operating temperature -10°C to 80°C; safety factor 3:1. |
| Pressure / pressure rating | Example TN2.5X4: 2.5 mm ID, 4 mm OD, 0.75 mm wall, 25 mm minimum bend radius, 38 BAR at 23°C. |
| Applications / recommendations | Applications include industrial automation, vacuum and machine tools. |
