The Nylon Tube is a high-performance, flexible tubing solution designed for demanding industrial applications where pressure resistance, thermal stability, and long-term durability are essential. It is specifically engineered to handle high-pressure environments while maintaining structural integrity under dynamic conditions, making it ideal for use in systems involving air, water, or heat medium oil flow.
Constructed from high-grade nylon material, the tube offers excellent flex fatigue resistance and superior pressure resistance. The construction ensures stable performance over extended periods of operation, even when subjected to repeated bending or vibration. The material is inherently resistant to abrasion and chemical degradation, supporting reliable service in a variety of fluid environments.
The tube features standard connection interfaces suitable for integration into piping systems. It is available in a range of sizes measured in inches, allowing compatibility with common industrial fittings and system designs. Custom lengths can be ordered as make-to-order items to match specific installation requirements.
The nylon tube operates reliably under a maximum pressure of 2.0 MPa at 20°C and 65% relative humidity. It is also rated for a maximum vacuum of -100 kPa. For thermal applications, the operating temperature range extends from -15°C to 90°C for water and heat medium oil, while air applications can operate between -20°C and 100°C without freezing risk.

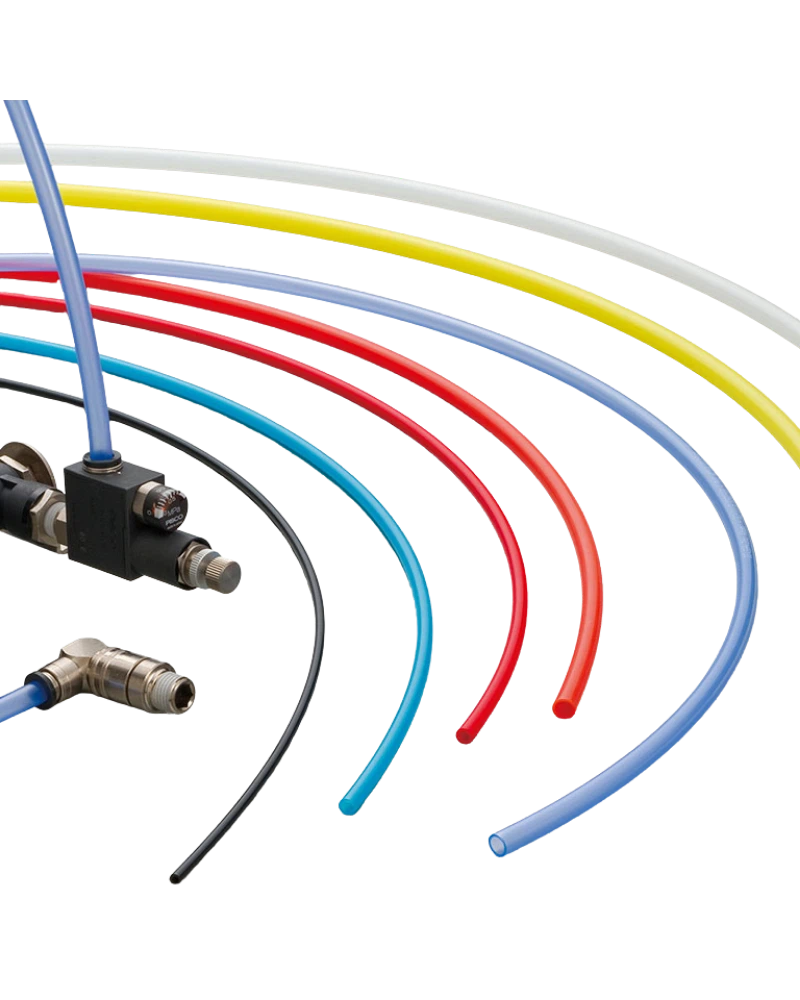

Available in 11 standard sizes (in inch dimensions), the tube offers a wide selection of configurations. A total of nine colors are available, enabling effective color coding for system identification or process differentiation. Custom lengths can be provided upon request, though additional cutting charges apply for such orders.
The nylon tube is designed to integrate directly into existing piping systems requiring high-pressure, high-temperature fluid transport. It supports seamless integration with standard fittings and is suitable for applications such as mold cooling water piping, chiller circuits, and hot-water distribution lines where consistent performance under pressure and temperature variation is critical.
| Specification | Details |
|---|---|
| Fluid medium | Air, Water (Conditional *1), Thermal oil (Conditional *1) |
| Max. operation pressure (65%RH at 20º) | 2.0MPa *2 |
| Max. vacuum | -100kPa |
| Operating temperature range | Air: -20 to 100ºC (No freezing)/ Water, thermal oil: -15 to 90ºC (No freezing) |
| Available options | Excellent pressure resistance for high pressure applications. Compatible with air, water, and heat medium oil. Available in 9 colors and 11 sizes. (Inch sizes available) | Available in a wide range of colors. Color coding is possible with a total of 9 colors |
