Explore performance details, construction highlights, applications, and technical information in one clear overview.

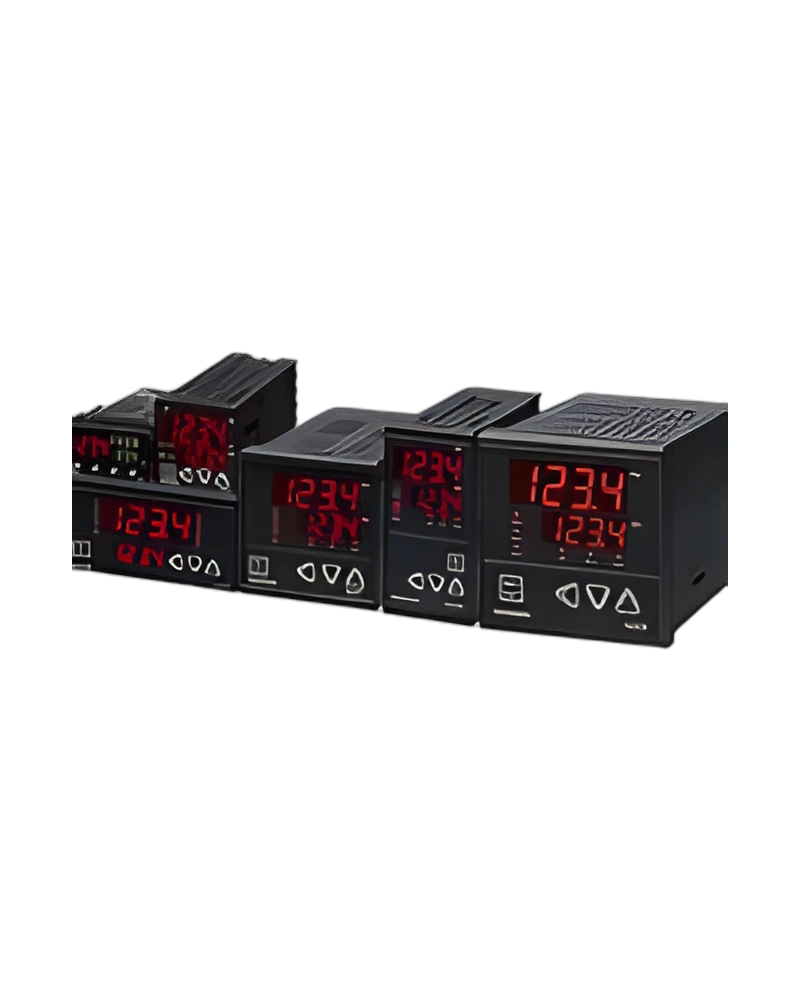

NX series is a Hanyoung NUX temperature controller for monitoring and regulating process temperature. The available configuration is built around the listed sensor inputs, control method and output arrangement, with model information of NX series. Input type: Thermocouple : K, J, E, T, R, B, S, L, N, U, W, PL2 (refer to input signal and measurement range) RTD : Pt 100 Ω , KPt 100 Ω DC voltage input : 1-5 V d.c., -10-20 ㎷, 0-100 ㎷ d.c., 4-20 ㎃ d.c.(250 Ω with external resistor); Allowable signal source resistance: Thermocouple : max. 250 Ω , DC voltage : max. 2 kΩ; Allowable input voltage: Within ±10 V (thermocouple, RTD, DC voltage : ㎷ d.c.) Within ±20 V (DC voltage: V d.c.); Input signal: Selec tion num ber | Input type | Range (℃) | Accuracy | Remarks.
For panel and process selection, the important characteristics are the input sensor type, control response, power requirements and display or communication options. Input display resolution: Basically, below the decimal point of the range; Ambient temperature influence: Thermocouple, voltage input : ± 1 μV / ℃ or ± 0.01 % / ℃ of max. range RTD input : max. ± 0.05 Ω / ℃ Analog output : max. ± 0.05 % / ℃ of max. range (continuous output); Insulation resistance: 1st terminal - 2nd terminal : min. 500 V d.c. 20 MΩ 1st terminal - ground : min. 500 V d.c. 20 MΩ 2nd terminal - ground : min. 500 V d.c. 20 MΩ; Dielectric strength: 1st terminal - 2nd terminal : 2,300 V a.c. 50/60 Hz for 1 min. 1st terminal - ground : 2,300 V a.c. 50/60 Hz for 1 min. 2nd terminal - F•G : 1,500 V a.c. 50/60 Hz for 1 min..
Key strengths of the NX series come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.
Input type: Thermocouple : K, J, E, T, R, B, S, L, N, U, W, PL2 (refer to input signal and measurement range) RTD : Pt 100 Ω , KPt 100 Ω DC voltage input : 1-5 V d.c., -10-20 ㎷, 0-100 ㎷ d.c., 4-20 ㎃ d.c.(250 Ω with external resistor); Power voltage: 100-240 V a.c. (voltage fluctuation rate : ±10 %); Input sampling cycle: 250 ms; Input display resolution: Basically, below the decimal point of the range; Power consumption: Max. to 6.0 W, max. 10 VA, 8 VA (NX1).
The NX series is specified by its sensor input, control output, electrical supply, sampling behaviour and accuracy. These values determine how the controller measures temperature and applies its selected control response. Relay contact output: Contact capacity : 240 V a.c. 1 A, 30 V d.c. 1 A (resistive load). Contact configuration : 1a Output contacts : different according to model specifications (refer to wiring diagram); Current output: Current output range : 0-20 ㎃ d.c., 4-20 ㎃ d.c. Load resistance : max. 600 Ω Accuracy : ±0.5 % of max 0 ㎃ or 4-20 ㎃ range Resolution : approx. 3,000 Output ripple : max. 0.3 % (P-P) of the max. scale (150 Hz) Output update cycle : 250 ㎳; Contact capacity: 240 V a.c. 3 A, 30 V d.c. 3 A (resistive load); Output operation: time proportion, ON / OFF.
Additional technical characteristics include Output limit: high limit (OH) and low limit (OL) can be set in the range from 0.0 to 100.0%. Valid also for auto-tuning (AT).; Output operation: time proportional; Current output range: 4-20 ㎃ d.c..
The physical design of NX series should be considered together with the installation environment and the available mounting or display arrangement. Storage temperature: -25 ~ 70 ℃; Shock: Max. 1 min packaging; Continuous vibration (5 - 14 Hz): peak-to-peak max. 1.2 mm; Continuous vibration (4 - 150 Hz): max. 4.9 m/s².
Further construction and environmental details include Ambient temperature: 0 ~ 50 ℃; Ambient humidity: 35 ~ 85 % RH (without condensation).
Integration of NX series requires the correct sensor input, control output, supply voltage and configuration settings for the application. Output ripple: 0.3 % (P-P) or less of the maximum scale (150 Hz); Output update cycle: 250 ㎳; Output operation: continuous PID; Output limit: high limit (OH) and low limit (OL) can be set in the range from -5.0 to 105.0 %. Valid also for auto-tuning (AT)..
Additional operating and interface details include Contact capacity: 240 V a.c. 1 A, 30 V d.c. 1 A (resistive load).; Output contacts: different according to model specifications (refer to wiring diagram); Alarm output: set and use alarm output. These values provide a practical reference for wiring, setup and normal operation within the selected configuration.
Choose NX series by confirming the exact model or configuration against the required operating conditions. The available model information is NX series. Standard: Thermocouple / RTD (KS/IEC/DIN); Input sampling cycle: 250 ms; Measurement accuracy: ±0.5 % (FULL SCALE); Accuracy: ±0.5 % of max. scale (4-20 ㎃ range),.
Before installation, confirm Current measurement range: AC 1-50 A; Accuracy: ±0.5 % of max 0 ㎃ or 4-20 ㎃ range; Current output range: 0-20 ㎃ d.c., 4-20 ㎃ d.c.. Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
| Specification | Details |
|---|---|
| Input type | Thermocouple : K, J, E, T, R, B, S, L, N, U, W, PL2 (refer to input signal and measurement range) RTD : Pt 100 Ω , KPt 100 Ω DC voltage input : 1-5 V d.c., -10-20 ㎷, 0-100 ㎷ d.c., 4-20 ㎃ d.c.(250 Ω with external resistor) |
| Input sampling cycle | 250 ms |
| Input display resolution | Basically, below the decimal point of the range |
| Input impedance | Thermocouple and DC voltage input (㎷) : min. 1 MΩ, DC voltage input (V) : approx. 1 MΩ |
| Allowable signal source resistance | Thermocouple : max. 250 Ω , DC voltage : max. 2 kΩ |
| Allowable wiring resistance | RTD : max. 10 Ω /wire (conductor resistance among 3 wires should be the same) |
| Allowable input voltage | Within ±10 V (thermocouple, RTD, DC voltage : ㎷ d.c.) Within ±20 V (DC voltage: V d.c.) |
| Noise reduction rate | NMRR (normal mode) : min. 40 dB (50/60Hz ±1 %) CMRR (common mode) : min. 120 dB (50/60Hz ±1 %) |
| Standard | Thermocouple / RTD (KS/IEC/DIN) |
| RJC error | ±1.5 ℃ (15 ~ 35 ℃), ±2.0 ℃ (0 ~ 50 ℃) |
| Input break detection (BURN-OUT) | Thermocouple : OFF, UP/DOWN Scale selection RTD : UP Scale (detection current at thermocouple and RTD BURN-OUT : approx. 50 nA) |
| Measurement accuracy | ±0.5 % (FULL SCALE) |
| Input range | Refer to "Input Signal and Measurement Range" Thermocouple, RTD : can be changed within the range of input signal and measurement range table. DC voltage : min. and max. voltages can be changed within each range. Scaling possible within the range of the measurement range. |
| Relay contact output | Contact capacity : 240 V a.c. 3 A, 30 V d.c. 3 A (resistive load) Contact configuration: 1C Output operation : time proportion, ON / OFF Proportional period : 1 to 1000 s Output limit : high limit (OH) and low limit (OL) can be set in the range from 0.0 to 100.0%. Valid also for auto-tuning (AT). ON / OFF Hysteresis : 0 to 100 % (full scale) Time resolution : smaller between 0.1% or 10 ms |
| SSR output (voltage pulse output) | ON voltage : NX2, 3, 4, 7, 9 approx. min. 12 V d.c. (load resistance min. 600 Ω , limited to 30 ㎃ in short circuit) OFF voltage : max. 0.1 V d.c. Proportional period : 1 ~ 1000 s Output operation : time proportional Output limit : high limit (OH) and low limit (OL) can be set in the range from 0.0 to 100.0%. Valid also for auto-tuning (AT). Time resolution : smaller between 0.1 % or 10 ms |
| Current output (4 - 20 ㎃) | Current output range : 4-20 ㎃ d.c. Load resistance : max. 600 Ω Accuracy : ±0.5 % of max. scale (4-20 ㎃ range), Resolution : approx. 3,000 Output ripple : 0.3 % (P-P) or less of the maximum scale (150 Hz) Output update cycle : 250 ㎳ Output operation : continuous PID Output limit : high limit (OH) and low limit (OL) can be set in the range from -5.0 to 105.0 %. Valid also for auto-tuning (AT). |
| Relay contact output | Contact capacity : 240 V a.c. 1 A, 30 V d.c. 1 A (resistive load). Contact configuration : 1a Output contacts : different according to model specifications (refer to wiring diagram) |
| Heater break alarm | 1 EA (NX2, NX3, NX4, NX7, NX9) Current measurement range: AC 1-50 A (resolution: 0.5 A, ±5 % of maximum scale ± 1 digit). Alarm output: set and use alarm output Deadband: 0 ~ 100 % of max. range setting Others: available for ON / OFF control or time proportional output (but not for current output and cooling output). When output is ON, the break can not be detected in less than 0.2 sec. |
| Current output | Current output range : 0-20 ㎃ d.c., 4-20 ㎃ d.c. Load resistance : max. 600 Ω Accuracy : ±0.5 % of max 0 ㎃ or 4-20 ㎃ range Resolution : approx. 3,000 Output ripple : max. 0.3 % (P-P) of the max. scale (150 Hz) Output update cycle : 250 ㎳ |
| Installation environment | Continuous vibration (5 - 14 Hz) : peak-to-peak max. 1.2 mm Continuous vibration (4 - 150 Hz) : max. 4.9 m/s² Short-time vibration : 14.7 m/s², max. 15 seconds (3 directions each) Shock : 147 m/s², max. 11 ms (6 directions each 3 times) Panel cutout : refer to "panel cutout" |
| Normal operating conditions | Ambient temperature : 0 ~ 50 ℃ Ambient humidity : 35 ~ 85 % RH (without condensation) Magnetic field effect : max. 400 AT / m Warm-up time : min. 30 minutes |
| Ambient temperature influence | Thermocouple, voltage input : ± 1 μV / ℃ or ± 0.01 % / ℃ of max. range RTD input : max. ± 0.05 Ω / ℃ Analog output : max. ± 0.05 % / ℃ of max. range (continuous output) |
| Power voltage | 100-240 V a.c. (voltage fluctuation rate : ±10 %) |
| Power frequency | 50 / 60 Hz |
| Power consumption | Max. to 6.0 W, max. 10 VA, 8 VA (NX1) |
| Insulation resistance | 1st terminal - 2nd terminal : min. 500 V d.c. 20 MΩ 1st terminal - ground : min. 500 V d.c. 20 MΩ 2nd terminal - ground : min. 500 V d.c. 20 MΩ |
| Dielectric strength | 1st terminal - 2nd terminal : 2,300 V a.c. 50/60 Hz for 1 min. 1st terminal - ground : 2,300 V a.c. 50/60 Hz for 1 min. 2nd terminal - F•G : 1,500 V a.c. 50/60 Hz for 1 min. |
| Sensor power supply | 12 V d.c. (20 ㎃ d.c., cannot be used with retransmission output) |
| Storage temperature | -25 ~ 70 ℃ |
| Storage humidity | 5 ~ 95 % RH (without condensation) |
| Shock | Max. 1 min packaging |
| Input signal | Selec tion num ber | Input type | Range (℃) | Accuracy | Remarks |
| Thermo couple (TC) | 1 | K | *2 | -200 ~ 1370 | ±0.5 % of FS ± 1digit | • FS is from the minimum to the maximum value of each measurable range. • Digit is the minimum display value ※1 0 ~ 400 ℃ range: ± 10.0 % of FS ± 1 digit ※2 Below 0 ℃: ± 1.0% of FS ± 1 digit ※3 20 → KPt100 Ω (C1603) ※3 21, 22 → Pt100 Ω (IEC751) ※4 When current input is used, attach a 250Ω 0.1 % resistor to the input signal terminal. |
| 2 | K | *2 | -199.9 ~ 999.9 |
| 3 | J | *2 | -199.9 ~ 999.9 |
| 4 | E | *2 | -199.9 ~ 999.9 |
| 5 | T | *2 | -199.9 ~ 400.0 |
| 6 | R | 0 ~ 1700 |
| 7 | B | *1 | 0 ~ 1800 |
| 8 | S | 0 ~ 1700 |
| 9 | L | *2 | -199.9 ~ 900.0 |
| 10 | N | -200 ~ 1300 | ±1.0 % of FS ± 1 digit |
| 11 | U | *2 | -199.9 ~ 400.0 | ±0.5 % of FS ±1 digit |
| 12 | W | 0 ~ 2300 |
| 13 | Platinel II | 0 ~ 1390 |
| RTD (RTD) | 20 | KSPt 100 Ω | *3 | -199.9 ~ 500.0 | ±0.5 % of FS ±1 digit |
| 21 | Pt 100 Ω | *3 | -199.9 ~ 640.0 |
| 22 | Pt 100 Ω | *3 | -200~ 640 |
| DC voltage (V d.c./ ㎷ d.c.) | 30 | 1-5V d.c. | -1999 ~ 9999 (Using the scaling function (SL-H / SL-L)) | ±0.5 % of FS ±1 digit |
| 31 | 0-10 V d.c. |
| 32 | -10-20 ㎷ d.c. |
| 33 | 0-100 ㎷ d.c. |
| Direct current | 30 | 4-20 ㎃ d.c. | *4 |
| DC voltage input | 1-5 V d.c., -10-20 ㎷, 0-100 ㎷ d.c., 4-20 ㎃ d.c.(250 Ω with external resistor) |
| Thermocouple and DC voltage input (㎷) | min. 1 MΩ, |
| DC voltage input (V) | approx. 1 MΩ |
| DC voltage | max. 2 kΩ |
| Within ±10 V (thermocouple, RTD, DC voltage | ㎷ d.c.) |
| Within ±20 V (DC voltage | V d.c.) |
| DC voltage | min. and max. voltages can be changed within each range. |
| Contact capacity | 240 V a.c. 3 A, 30 V d.c. 3 A (resistive load) |
| Contact configuration | 1C |
| Output operation | time proportion, ON / OFF |
| Output limit | high limit (OH) and low limit (OL) can be set in the range from 0.0 to 100.0%. Valid also for auto-tuning (AT). |
| Time resolution | smaller between 0.1% or 10 ms |
| ON voltage | NX2, 3, 4, 7, 9 approx. min. 12 V d.c. (load resistance min. 600 Ω , limited to 30 ㎃ in short circuit) OFF |
| voltage | max. 0.1 V d.c. |
| Output operation | time proportional |
| Time resolution | smaller between 0.1 % or 10 ms |
| Current output range | 4-20 ㎃ d.c. |
| Load resistance | max. 600 Ω |
| Accuracy | ±0.5 % of max. scale (4-20 ㎃ range), |
| Resolution | approx. 3,000 |
| Output ripple | 0.3 % (P-P) or less of the maximum scale (150 Hz) |
| Output update cycle | 250 ㎳ |
| Output operation | continuous PID |
| Output limit | high limit (OH) and low limit (OL) can be set in the range from -5.0 to 105.0 %. Valid also for auto-tuning (AT). |
| Contact capacity | 240 V a.c. 1 A, 30 V d.c. 1 A (resistive load). |
| Contact configuration | 1a |
| Output contacts | different according to model specifications (refer to wiring diagram) |
| Current measurement range | AC 1-50 A |
| (resolution | 0.5 A, ±5 % of maximum scale ± 1 digit). |
| Alarm output | set and use alarm output |
| Current output range | 0-20 ㎃ d.c., 4-20 ㎃ d.c. |
| Accuracy | ±0.5 % of max 0 ㎃ or 4-20 ㎃ range |
| Output ripple | max. 0.3 % (P-P) of the max. scale (150 Hz) |
| Continuous vibration (5 - 14 Hz) | peak-to-peak max. 1.2 mm |
| Continuous vibration (4 - 150 Hz) | max. 4.9 m/s² |
| Ambient temperature | 0 ~ 50 ℃ |
| Ambient humidity | 35 ~ 85 % RH (without condensation) |
| Thermocouple, voltage input | ± 1 μV / ℃ or ± 0.01 % / ℃ of max. range |
| RTD input | max. ± 0.05 Ω / ℃ |
| Analog output | max. ± 0.05 % / ℃ of max. range (continuous output) |
| (voltage fluctuation rate | ±10 %) |
| 1st terminal - 2nd terminal | min. 500 V d.c. 20 MΩ |
| 1st terminal - ground | min. 500 V d.c. 20 MΩ |
| 2nd terminal - ground | min. 500 V d.c. 20 MΩ |
| 1st terminal - 2nd terminal | 2,300 V a.c. 50/60 Hz for 1 min. |
| 1st terminal - ground | 2,300 V a.c. 50/60 Hz for 1 min. |
| 2nd terminal - F•G | 1,500 V a.c. 50/60 Hz for 1 min. |
| 0 ~ 400 ℃ range | ± 10.0 % of FS ± 1 digit |
