MONO LAYER POLYURETHANE SELF-EXTINGUISHING Overview

MONO LAYER POLYURETHANE SELF-EXTINGUISHING is a Mebra Tubes solution based on Ether polyurethane, selected for demanding tube-routing, pneumatic, fluid-transfer or specialist industrial requirements. The product profile combines the material, construction and application characteristics documented for this exact Mebra product family.

Product Construction and Material

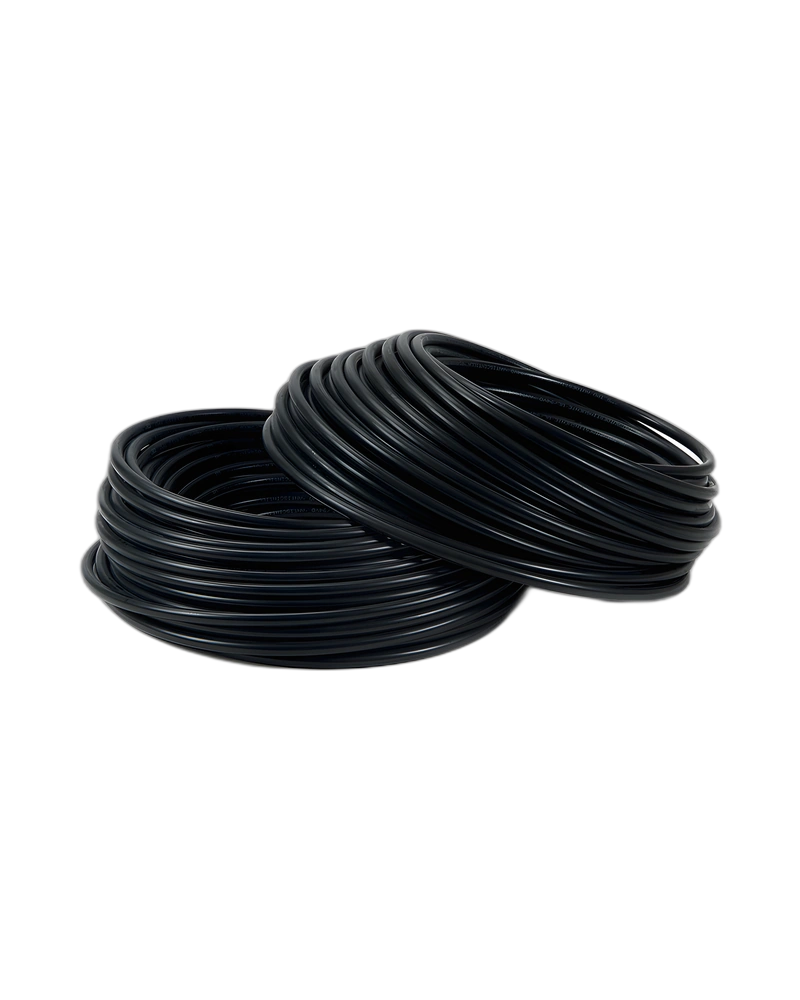

Flexible single-layer ether-based polyurethane tube with UL94 V2 self-extinguishing performance. High wall thickness provides protection against accidental or occasional contact with glowing sparks or welding slag. Flexibility 8, lightness 4.8, chemical resistance 5, low-temperature resistance 9, high-temperature resistance 4, hardness 7. Standard lengths 25/50/100 m. Applications include vacuum, machine tools, robotics and welding machines. Operating temperature -40°C to 60°C; safety factor 3:1. Example MS-TPU2.5X6: 2.5/6 mm, 1.75 mm wall, 10 mm bend radius, 27 BAR; MS-TPU8X12: 8/12 mm, 2 mm wall, 40 mm bend radius, 13 BAR. UL94 V2 reference.

Technical Performance

The documented technical profile is intended to support correct selection by considering pressure, temperature, dimensional, flexibility, chemical, abrasion, electrical and environmental requirements as applicable to the product. Where the product page provides numerical ratings, those values are retained rather than replaced with generic estimates.

Dimensions and Product Range

The Mebra product information includes exact dimensional variants, tubing geometry, wall thickness, bending requirements, working-pressure information and/or configuration data where applicable. These values should be selected according to the required tube size and application conditions.

Operating Conditions

Temperature and pressure limits are application-dependent and must be selected from the documented product range. The technical information above preserves the published operating ranges, safety factor information and size-specific values available for MONO LAYER POLYURETHANE SELF-EXTINGUISHING.

Applications

MONO LAYER POLYURETHANE SELF-EXTINGUISHING is suited to the application areas documented for this product, including industrial automation, pneumatic equipment, vacuum systems, machine tools, robotics, fluid handling, automotive, food-contact, welding, cable-carrier or specialist environments where applicable to the selected construction.

Installation and Compatibility

Connection and installation should follow the product-specific fitting recommendations and dimensional requirements. Correct tube cutting, support, bending radius and fitting selection are important for maintaining sealing, pressure performance and service life.

Customization and Supply Options

Depending on the product, available options include color, diameter, length, packaging, marking/stamp, straight-cut pieces, preformed designs, tube-in-bar formats, multi-tube configurations and other documented customizations.

Technical Selection Summary

MONO LAYER POLYURETHANE SELF-EXTINGUISHING provides a product-specific combination of material characteristics, dimensions, operating limits and application suitability. Use the exact size, configuration and operating conditions shown in the technical information for final selection.
