MC9

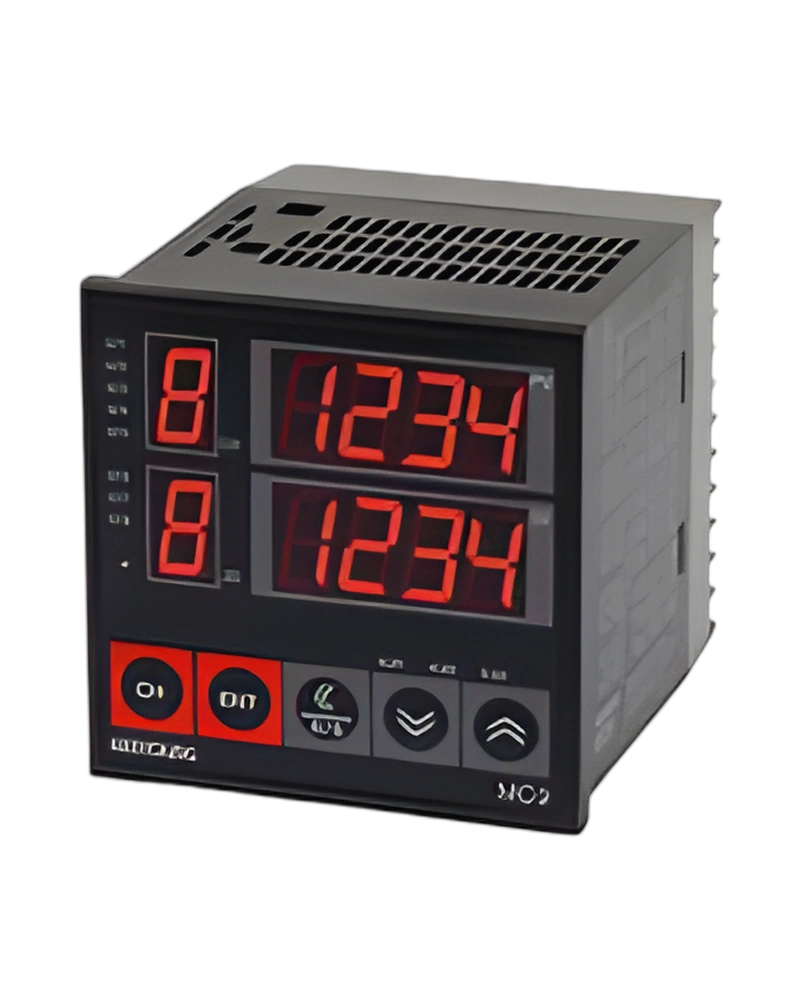

HANYOUNG NUX Electricals Temperature Controller

MC9

MC9 is a Hanyoung NUX temperature controllers for temperature measurement and control. Key specifications include Acceptable input voltage: Within 2–5 V (thermal band, thermoelectric resistor), within -5–12 V (d. c. voltage); Control output: Relay output | Contact capacities: 1a, 250Va.c., 3A. (resistance load) Proportional cycle: 1 to 1,000 seconds Time resolution: 0.1 % or 10 ms, whichever is smaller.
  • Brand HANYOUNG NUX
  • Category Electricals
  • Subcategory Temperature Controller
Interested in this product? MC9
Product insights

Everything you need to evaluate this product

Explore performance details, construction highlights, applications, and technical information in one clear overview.

Quality assured Technical details Industrial use Expert support

Product Overview

MC9 is a Hanyoung NUX temperature controller for monitoring and regulating process temperature. The available configuration is built around the listed sensor inputs, control method and output arrangement, with model information of MC9. Control output: Relay output | Contact capacities: 1a, 250Va.c., 3A. (resistance load) Proportional cycle: 1 to 1,000 seconds Time resolution: 0.1 % or 10 ms, whichever is smaller; Alarm output (Relay): Temperature alarm (AL1,2,3) | 1a, 250 V a.c., 1 A. 30 V d.c. 1 A (Resistance load) Output score : Up to 3 points (depending on the selection specification); Output score: Up to 3 points (depending on the selection specification); Sampling cycle: 1 second.

For panel and process selection, the important characteristics are the input sensor type, control response, power requirements and display or communication options. The degree of display level: Thermocouple : ±(0.3 % of F.S ±1Digit) or ±2 °C, whichever is greater RTD : (±0.3 % of F.S ±1Digit) or ±0.8 °C, whichever is greater DC voltage : ±0.3 % of F.S ±1Digit; Input display resolution: Basically, below the decimal point of the "measurement range index"; Communication method: 2-wire half-duplex, or 4-wire half-duplex; Communication order: No order.

Key Features

Key strengths of the MC9 come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.

Acceptable input voltage: Within 2–5 V (thermal band, thermoelectric resistor), within -5–12 V (d. c. voltage); Control output: Relay output | Contact capacities: 1a, 250Va.c., 3A. (resistance load) Proportional cycle: 1 to 1,000 seconds Time resolution: 0.1 % or 10 ms, whichever is smaller; Power supply voltage: 100 - 240 V a.c., 50 / 60 ㎐; Sampling cycle: 1 second; The degree of display level: Thermocouple : ±(0.3 % of F.S ±1Digit) or ±2 °C, whichever is greater RTD : (±0.3 % of F.S ±1Digit) or ±0.8 °C, whichever is greater DC voltage : ±0.3 % of F.S ±1Digit.

  • Acceptable input voltage: Within 2–5 V (thermal band, thermoelectric resistor), within -5–12 V (d. c. voltage)
  • Control output: Relay output | Contact capacities: 1a, 250Va.c., 3A. (resistance load) Proportional cycle: 1 to 1,000 seconds Time resolution: 0.1 % or 10 ms, whichever is smaller
  • Power supply voltage: 100 - 240 V a.c., 50 / 60 ㎐
  • Sampling cycle: 1 second
  • The degree of display level: Thermocouple : ±(0.3 % of F.S ±1Digit) or ±2 °C, whichever is greater RTD : (±0.3 % of F.S ±1Digit) or ±0.8 °C, whichever is greater DC voltage : ±0.3 % of F.S ±1Digit
  • Power consumption: 21 VA
  • Communication method: 2-wire half-duplex, or 4-wire half-duplex

Technical Characteristics

The MC9 is specified by its sensor input, control output, electrical supply, sampling behaviour and accuracy. These values determine how the controller measures temperature and applies its selected control response. Response delay time: Receipt processing time + (response time X 10); Acceptable input voltage: Within 2–5 V (thermal band, thermoelectric resistor), within -5–12 V (d. c. voltage); Power supply voltage: 100 - 240 V a.c., 50 / 60 ㎐; Voltage fluctuation rate: Power supply voltage ±10 %.

Additional technical characteristics include Power consumption: 21 VA; Communication distance: 1.2 ㎞ max; Communication speed: 1,200/2,400/4,800/9,600/19,200/38,400/ 57,600/76,800/115,200 bps (Change by parameter setting).

Design and Construction

The physical design of MC9 should be considered together with the installation environment and the available mounting or display arrangement. Weight: 700 g; Insulation resistance: 20 ㏁ or morte (500 V d.c.), Measurement terminal-Power terminal; Ambient temperature: 0 - 50 ℃; Ambient humidity: 35 - 85 % RH (Without condensation).

Further construction and environmental details include Storage temperature: -25 ~ 65 ℃; Vibration resistance: 10 - 55 ㎐, One-sided width 0.75 ㎜, Three axis, in each direction, 2h; Shock resistance: 300 m/s², Three axis, in each direction. Three times each.

Integration and Operation

Integration of MC9 requires the correct sensor input, control output, supply voltage and configuration settings for the application. Protocol: PC Link SUM none(0), PC Link SUM Have (1) Modbus ASCII(2), Modbus RTU(3); Acceptable input voltage: Within 2–5 V (thermal band, thermoelectric resistor), within -5–12 V (d. c. voltage); Control output: Relay output | Contact capacities: 1a, 250Va.c., 3A. (resistance load) Proportional cycle: 1 to 1,000 seconds Time resolution: 0.1 % or 10 ms, whichever is smaller; Power supply voltage: 100 - 240 V a.c., 50 / 60 ㎐.

Additional operating and interface details include Sampling cycle: 1 second; The degree of display level: Thermocouple : ±(0.3 % of F.S ±1Digit) or ±2 °C, whichever is greater RTD : (±0.3 % of F.S ±1Digit) or ±0.8 °C, whichever is greater DC voltage : ±0.3 % of F.S ±1Digit; Power consumption: 21 VA. These values provide a practical reference for wiring, setup and normal operation within the selected configuration.

Selection and Use

Choose MC9 by confirming the exact model or configuration against the required operating conditions. The available model information is MC9. Scaling: 0.0 % ~ 100.0 % of F.S; Acceptable input voltage: Within 2–5 V (thermal band, thermoelectric resistor), within -5–12 V (d. c. voltage); Control output: Relay output | Contact capacities: 1a, 250Va.c., 3A. (resistance load) Proportional cycle: 1 to 1,000 seconds Time resolution: 0.1 % or 10 ms, whichever is smaller; Power supply voltage: 100 - 240 V a.c., 50 / 60 ㎐.

Before installation, confirm Sampling cycle: 1 second; The degree of display level: Thermocouple : ±(0.3 % of F.S ±1Digit) or ±2 °C, whichever is greater RTD : (±0.3 % of F.S ±1Digit) or ±0.8 °C, whichever is greater DC voltage : ±0.3 % of F.S ±1Digit; Power consumption: 21 VA. Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.

SpecificationDetails
TitleDescription
Temperature inputThermocouple (T.C) : K, J, R, S, B, E, N, T, W, PL2, U, L RTD (R.T.D) : Pt100 Ω, KPt100 Ω Direct current voltage (DCV) : 0 ~ 5 V, 1 ~ 5 V, 0 ~ 10 V,4 ~ 20 ㎃ (250 Ω with external resistor)
The degree of display levelThermocouple : ±(0.3 % of F.S ±1Digit) or ±2 °C, whichever is greater RTD : (±0.3 % of F.S ±1Digit) or ±0.8 °C, whichever is greater DC voltage : ±0.3 % of F.S ±1Digit
Sampling cycle1 second
Input display resolutionBasically, below the decimal point of the "measurement range index"
Input impedance1 ㏁ or more. (Input thermocouple and DC voltage)
Effect of allowable input resistanceabout 0.2 ㎶/Ω
Acceptable input wire resistanceTemperature resistance (10 Ω or less. However, the resistance between the three lines will be the same)
Acceptable input voltageWithin 2–5 V (thermal band, thermoelectric resistor), within -5–12 V (d. c. voltage)
Scaling0.0 % ~ 100.0 % of F.S
Input correction±100 % of F.S
Reference point compensation error±1.5 ℃ (Between 0 and 50°C)
Input open circuit detectionUP SCALE (reverse acting), DOWN SCALE (reverse acrion)
Insulation resistance20 ㏁ or morte (500 V d.c.), Measurement terminal-Power terminal
Voltage resistance2,300 V a.c. 50/60 ㎐, For a minute. Measurement terminal-Power terminal.
Control outputRelay output | Contact capacities: 1a, 250Va.c., 3A. (resistance load) Proportional cycle: 1 to 1,000 seconds Time resolution: 0.1 % or 10 ms, whichever is smaller
S.S.R (voltage pulse)(voltage pulse) Voltage pulse : More than or equal to about 12 V d.c. (Load resistance of 600 or more) Proportional cycle: 1 to 1,000 seconds Time resolution: 0.1% or 10%, whichever is smaller
S.C.R (Current.)Current. : 4-20 ㎃ d.c., 0 ~ 20 ㎃ (Load resistance less than 600) Degree : ±1.0 % of F.S (4-20 ㎃ range)
Alarm output (Relay)Temperature alarm (AL1,2,3) | 1a, 250 V a.c., 1 A. 30 V d.c. 1 A (Resistance load) Output score : Up to 3 points (depending on the selection specification)
Short-loop warning (L.B.A)1a 1point, 250 V a.c., 1 A. 30 V d.c. 1A (Resistance load) Proportional period : 1 ~ 1,000 seconds
Power supply voltage100 - 240 V a.c., 50 / 60 ㎐
Voltage fluctuation ratePower supply voltage ±10 %
Power consumption21 VA
Ambient temperature0 - 50 ℃
Ambient humidity35 - 85 % RH (Without condensation)
Storage temperature-25 ~ 65 ℃
Vibration resistance10 - 55 ㎐, One-sided width 0.75 ㎜, Three axis, in each direction, 2h
Shock resistance300 m/s², Three axis, in each direction. Three times each
Weight700 g
Applied specificationEIA-RS485, RS422A
Maximum number of connection31 or 255 units
Communication method2-wire half-duplex, or 4-wire half-duplex
Synchronous WayAsynchronous
Communication orderNo order
Communication distance1.2 ㎞ max
Communication speed1,200/2,400/4,800/9,600/19,200/38,400/ 57,600/76,800/115,200 bps (Change by parameter setting)
Start bit1 Bit
Date bit7 or 8 Bit
Parity bitNone, Even number, Odd number
Stom bit1 or 2 Bit
ProtocolPC Link SUM none(0), PC Link SUM Have (1) Modbus ASCII(2), Modbus RTU(3)
Response delay timeReceipt processing time + (response time X 10)
NoType | Category | Title | File
1Manual > User Manual | Temperature Controllers | MC9 User manual
1CAD > 2D | Temperature Controllers | MC9 (2D)
1Software > Program | ALL | Communication Protocol Examples
2Software > Program | ALL | TCS Integrated Communication Program Installation file
3Software > Program | Temperature Controllers | MC9 EV1.4.0(EN)
4Software > Communication data | Temperature Controllers | MC9 Communication Map (old)
5Software > Communication data | Temperature Controllers | MC9 Communication Map(R2)
6Software > Communication data | Temperature Controllers | PLC Communication example
7Software > Communication data | ALL | TCS Integrated Communication Program Manual(EN)
NoMark | Category | Title | File
1Certification > CE | Temperature Controllers | MC9 EMC (CoC)
2Certification > CE | Temperature Controllers | MC9 LVD
Direct current voltage (DCV)0 ~ 5 V, 1 ~ 5 V, 0 ~ 10 V,4 ~ 20 ㎃
DC voltage±0.3 % of F.S ±1Digit
Contact capacities1a, 250Va.c., 3A. (resistance load)
Time resolution0.1 % or 10 ms, whichever is smaller
(voltage pulse) Voltage pulseMore than or equal to about 12 V d.c. (Load resistance of 600 or more)
Time resolution0.1% or 10%, whichever is smaller
Current.4-20 ㎃ d.c., 0 ~ 20 ㎃ (Load resistance less than 600)
Output scoreUp to 3 points (depending on the selection specification)
