Explore performance details, construction highlights, applications, and technical information in one clear overview.
LOW DENSITY POLYETHYLENE (PELD) is a Mebra Tubes solution based on LDPE, selected for demanding tube-routing, pneumatic, fluid-transfer or specialist industrial requirements. The product profile combines the material, construction and application characteristics documented for this exact Mebra product family.

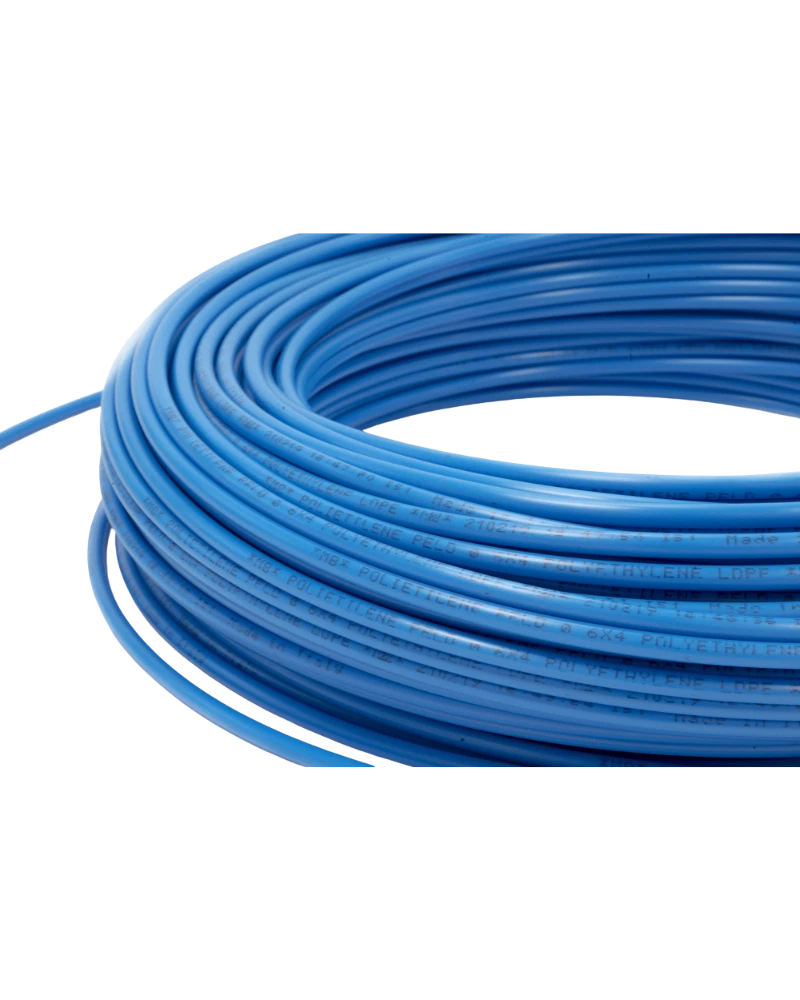

Flexible light-stabilized LDPE tube, positioned as a highly economical thermoplastic technical tube. Flexibility 8.5, lightness 10, chemical resistance 7, low-temperature resistance 6, high-temperature resistance 4, hardness 5. Standard lengths: 100 m for OD ≤3 mm, 25/50/100 m for 4–24 mm OD and 25/50 m for OD ≥25 mm. Operating temperature -10°C to 60°C; safety factor 3:1. Example TP1X2: 1/2 mm, 0.5 mm wall, 10 mm bend radius, 21 BAR; TP2.5X4: 2.5/4 mm, 0.75 mm wall, 25 mm, 14 BAR; TP10X12: 10/12 mm, 1 mm wall, 165 mm, 5 BAR. Industrial automation, vacuum and machine tools.
The documented technical profile is intended to support correct selection by considering pressure, temperature, dimensional, flexibility, chemical, abrasion, electrical and environmental requirements as applicable to the product. Where the product page provides numerical ratings, those values are retained rather than replaced with generic estimates.
The Mebra product information includes exact dimensional variants, tubing geometry, wall thickness, bending requirements, working-pressure information and/or configuration data where applicable. These values should be selected according to the required tube size and application conditions.
Temperature and pressure limits are application-dependent and must be selected from the documented product range. The technical information above preserves the published operating ranges, safety factor information and size-specific values available for LOW DENSITY POLYETHYLENE (PELD).
LOW DENSITY POLYETHYLENE (PELD) is suited to the application areas documented for this product, including industrial automation, pneumatic equipment, vacuum systems, machine tools, robotics, fluid handling, automotive, food-contact, welding, cable-carrier or specialist environments where applicable to the selected construction.
Connection and installation should follow the product-specific fitting recommendations and dimensional requirements. Correct tube cutting, support, bending radius and fitting selection are important for maintaining sealing, pressure performance and service life.
Depending on the product, available options include color, diameter, length, packaging, marking/stamp, straight-cut pieces, preformed designs, tube-in-bar formats, multi-tube configurations and other documented customizations.
LOW DENSITY POLYETHYLENE (PELD) provides a product-specific combination of material characteristics, dimensions, operating limits and application suitability. Use the exact size, configuration and operating conditions shown in the technical information for final selection.
| Specification | Technical value / content |
|---|---|
| Product family | LOW DENSITY POLYETHYLENE (PELD) |
| Material | LDPE |
| Technical data | Flexible light-stabilized LDPE tube, positioned as a highly economical thermoplastic technical tube. |
| Operating temperature | Flexibility 8.5, lightness 10, chemical resistance 7, low-temperature resistance 6, high-temperature resistance 4, hardness 5. |
| Standard lengths | Standard lengths: 100 m for OD ≤3 mm, 25/50/100 m for 4–24 mm OD and 25/50 m for OD ≥25 mm. |
| Operating temperature | Operating temperature -10°C to 60°C; safety factor 3:1. |
| Pressure / pressure rating | Example TP1X2: 1/2 mm, 0.5 mm wall, 10 mm bend radius, 21 BAR; TP2.5X4: 2.5/4 mm, 0.75 mm wall, 25 mm, 14 BAR; TP10X12: 10/12 mm, 1 mm wall, 165 mm, 5 BAR. |
| Technical data | Industrial automation, vacuum and machine tools. |
