HIGH DENSITY POLYETHYLENE (PEHD) is a Mebra Tubes solution based on HDPE, selected for demanding tube-routing, pneumatic, fluid-transfer or specialist industrial requirements. The product profile combines the material, construction and application characteristics documented for this exact Mebra product family.

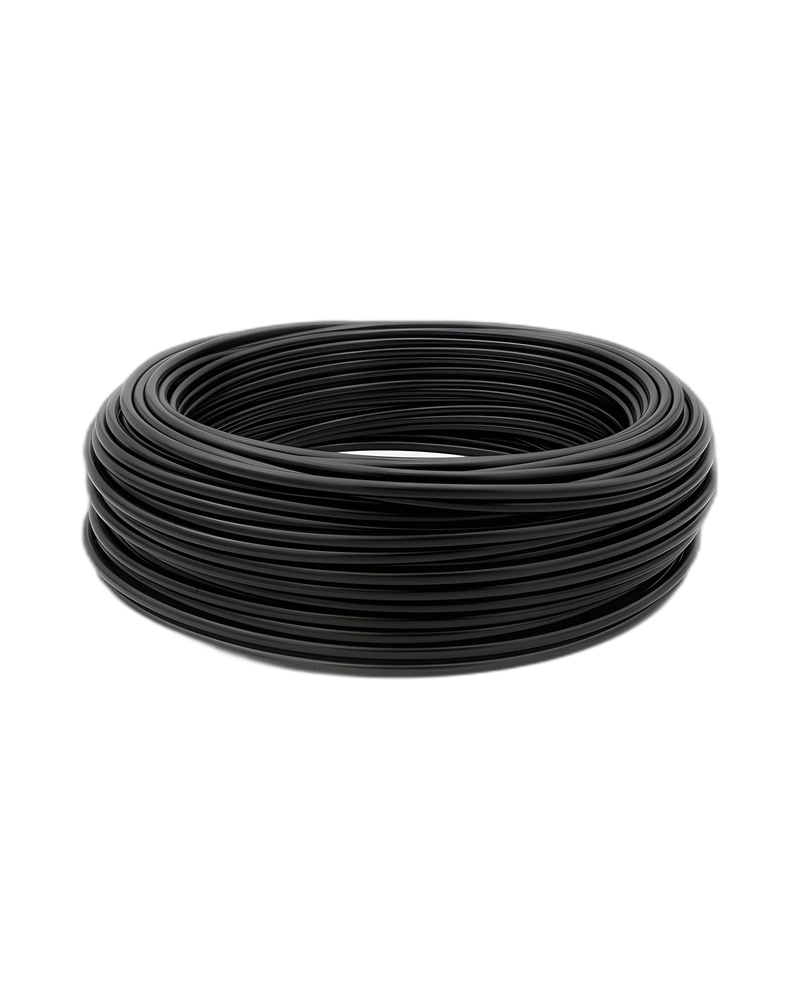

Rigid light-stabilized HDPE linear tube with better physical and chemical properties than LDPE and good acid/alkali resistance. Flexibility 5, lightness 9, chemical resistance 8, low-temperature resistance 6, high-temperature resistance 7, hardness 9, dimensional stability 10. Standard lengths 25/50/100 m. Operating temperature -20°C to 70°C; safety factor 3:1. Example TPHD2.5X4: 2.5/4 mm, 0.75 mm wall, 20 mm bend radius, 38 BAR; TPHD4X6: 4/6 mm, 1 mm, 30 mm, 33 BAR; TPHD10X12: 10/12 mm, 1 mm, 115 mm, 15 BAR. Industrial automation, vacuum, machine tools, chemical and hydrolysis-resistance applications.
The documented technical profile is intended to support correct selection by considering pressure, temperature, dimensional, flexibility, chemical, abrasion, electrical and environmental requirements as applicable to the product. Where the product page provides numerical ratings, those values are retained rather than replaced with generic estimates.
The Mebra product information includes exact dimensional variants, tubing geometry, wall thickness, bending requirements, working-pressure information and/or configuration data where applicable. These values should be selected according to the required tube size and application conditions.
Temperature and pressure limits are application-dependent and must be selected from the documented product range. The technical information above preserves the published operating ranges, safety factor information and size-specific values available for HIGH DENSITY POLYETHYLENE (PEHD).
HIGH DENSITY POLYETHYLENE (PEHD) is suited to the application areas documented for this product, including industrial automation, pneumatic equipment, vacuum systems, machine tools, robotics, fluid handling, automotive, food-contact, welding, cable-carrier or specialist environments where applicable to the selected construction.
Connection and installation should follow the product-specific fitting recommendations and dimensional requirements. Correct tube cutting, support, bending radius and fitting selection are important for maintaining sealing, pressure performance and service life.
Depending on the product, available options include color, diameter, length, packaging, marking/stamp, straight-cut pieces, preformed designs, tube-in-bar formats, multi-tube configurations and other documented customizations.
HIGH DENSITY POLYETHYLENE (PEHD) provides a product-specific combination of material characteristics, dimensions, operating limits and application suitability. Use the exact size, configuration and operating conditions shown in the technical information for final selection.
| Specification | Technical value / content |
|---|---|
| Product family | HIGH DENSITY POLYETHYLENE (PEHD) |
| Material | HDPE |
| Technical data | Rigid light-stabilized HDPE linear tube with better physical and chemical properties than LDPE and good acid/alkali resistance. |
| Operating temperature | Flexibility 5, lightness 9, chemical resistance 8, low-temperature resistance 6, high-temperature resistance 7, hardness 9, dimensional stability 10. |
| Standard lengths | Standard lengths 25/50/100 m. |
| Operating temperature | Operating temperature -20°C to 70°C; safety factor 3:1. |
| Pressure / pressure rating | Example TPHD2.5X4: 2.5/4 mm, 0.75 mm wall, 20 mm bend radius, 38 BAR; TPHD4X6: 4/6 mm, 1 mm, 30 mm, 33 BAR; TPHD10X12: 10/12 mm, 1 mm, 115 mm, 15 BAR. |
| Applications / recommendations | Industrial automation, vacuum, machine tools, chemical and hydrolysis-resistance applications. |
