Explore performance details, construction highlights, applications, and technical information in one clear overview.
FLUOROPOLYMER - KYNAR® PVDF HD 4000 is a Mebra Tubes solution based on PVDF, selected for demanding tube-routing, pneumatic, fluid-transfer or specialist industrial requirements. The product profile combines the material, construction and application characteristics documented for this exact Mebra product family.

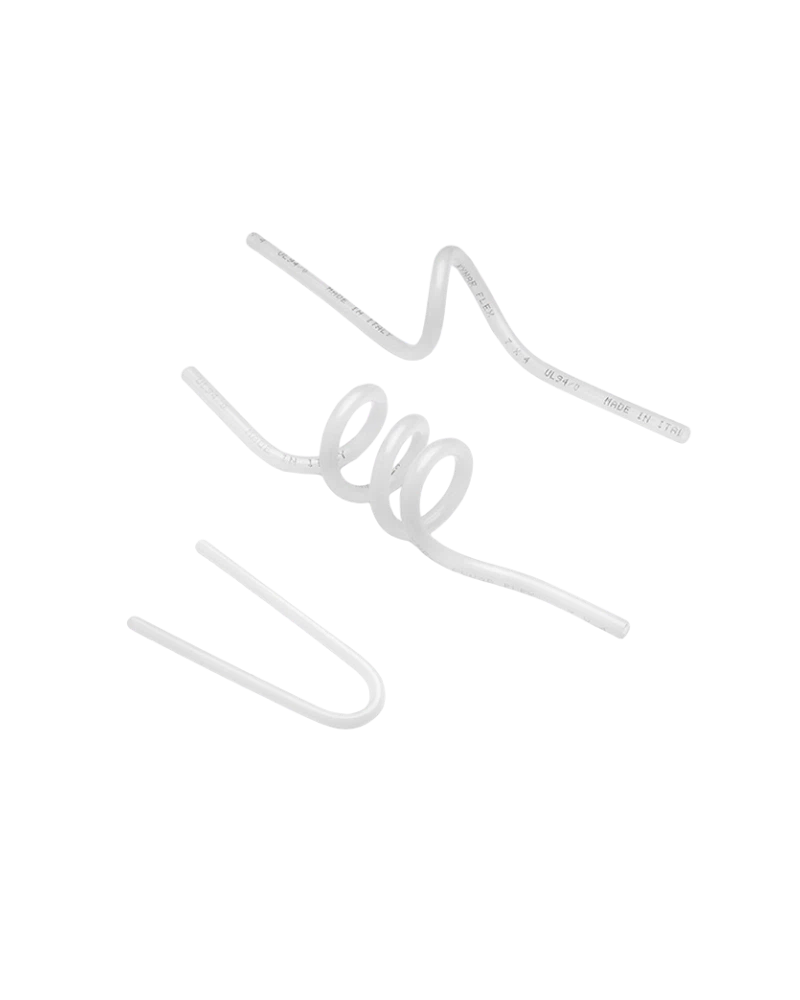

Rigid KYNAR® HD 4000 PVDF tube, highlighted for abrasion resistance, temperature resistance and mechanical resistance with chemicals and solvents. Flexibility 3, lightness 5, chemical resistance 9, low-temperature resistance 5, high-temperature resistance 8, hardness 10, dimensional stability 10. Intrinsically resistant to light, heat and ageing and UL94 V0 self-extinguishing; one of Mebra's food grades. Standard lengths 25/50/100 m. Operating temperature -40°C to 100°C; safety factor 3:1. Example PVDF2X4: 2/4 mm, 1 mm wall, 20 mm bend radius, 77 BAR; PVDF4X6: 4/6 mm, 1 mm, 45 mm, 46 BAR; PVDF10X12: 10/12 mm, 1 mm, 200 mm, 21 BAR.
The documented technical profile is intended to support correct selection by considering pressure, temperature, dimensional, flexibility, chemical, abrasion, electrical and environmental requirements as applicable to the product. Where the product page provides numerical ratings, those values are retained rather than replaced with generic estimates.
The Mebra product information includes exact dimensional variants, tubing geometry, wall thickness, bending requirements, working-pressure information and/or configuration data where applicable. These values should be selected according to the required tube size and application conditions.
Temperature and pressure limits are application-dependent and must be selected from the documented product range. The technical information above preserves the published operating ranges, safety factor information and size-specific values available for KYNAR® PVDF HD 4000.
FLUOROPOLYMER - KYNAR® PVDF HD 4000 is suited to the application areas documented for this product, including industrial automation, pneumatic equipment, vacuum systems, machine tools, robotics, fluid handling, automotive, food-contact, welding, cable-carrier or specialist environments where applicable to the selected construction.
Connection and installation should follow the product-specific fitting recommendations and dimensional requirements. Correct tube cutting, support, bending radius and fitting selection are important for maintaining sealing, pressure performance and service life.
Depending on the product, available options include color, diameter, length, packaging, marking/stamp, straight-cut pieces, preformed designs, tube-in-bar formats, multi-tube configurations and other documented customizations.
KYNAR® PVDF HD 4000 provides a product-specific combination of material characteristics, dimensions, operating limits and application suitability. Use the exact size, configuration and operating conditions shown in the technical information for final selection.
| Specification | Technical value / content |
|---|---|
| Product family | KYNAR® PVDF HD 4000 |
| Material | PVDF |
| Operating temperature | Rigid KYNAR® HD 4000 PVDF tube, highlighted for abrasion resistance, temperature resistance and mechanical resistance with chemicals and solvents. |
| Operating temperature | Flexibility 3, lightness 5, chemical resistance 9, low-temperature resistance 5, high-temperature resistance 8, hardness 10, dimensional stability 10. |
| Technical data | Intrinsically resistant to light, heat and ageing and UL94 V0 self-extinguishing; one of Mebra's food grades. |
| Standard lengths | Standard lengths 25/50/100 m. |
| Operating temperature | Operating temperature -40°C to 100°C; safety factor 3:1. |
| Pressure / pressure rating | Example PVDF2X4: 2/4 mm, 1 mm wall, 20 mm bend radius, 77 BAR; PVDF4X6: 4/6 mm, 1 mm, 45 mm, 46 BAR; PVDF10X12: 10/12 mm, 1 mm, 200 mm, 21 BAR. |
