Product Overview

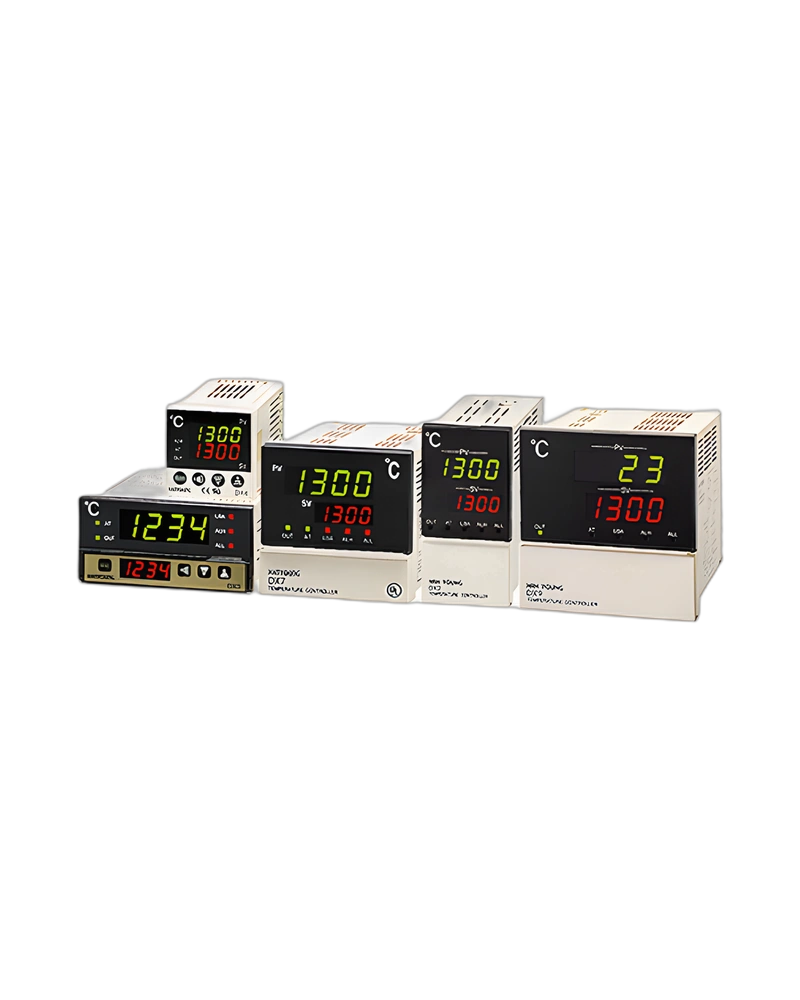

DX series is a Hanyoung NUX temperature controller for monitoring and regulating process temperature. The available configuration is built around the listed sensor inputs, control method and output arrangement, with model information of DX2 | DX3 | DX4 | DX7 | DX9. Control output: Relay | NO : 5 A 250 V a.c. (resistive load) NC : 3 A 250 V a.c. (resistive load) Switching Life : 100 thousand times (without load); Voltage output: ON voltage : 12 V d.c. min OFF voltage : 0.1 V d.c. max Load resistance 600Ω min; Retransmission output: range : 3.2 ~ 20.8 mA Accuracy: ± 0.2 mA Load resistance 600Ω max; Alarm output: NO : 5 A 250 V a.c. (resistive load) , NC : 3 A 250 V a.c. (resistive load) Switching Life: 100 thousand times (without load).

For panel and process selection, the important characteristics are the input sensor type, control response, power requirements and display or communication options. Indication accuracy: ± 0.5 % (refer to input type table); Weight: 260g | 260g | 135g | 230g | 320g; Insulation resistance: 20 MΩ min (primary terminal – secondary terminal); Dielectric strength: 3,000 V a.c., for 1 minute (primary terminal – secondary terminal).

Key Features

Key strengths of the DX series come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.

Input: Type | Refer to input table; Control output: Relay | NO : 5 A 250 V a.c. (resistive load) NC : 3 A 250 V a.c. (resistive load) Switching Life : 100 thousand times (without load); Sampling cycle: 250 ms; Indication accuracy: ± 0.5 % (refer to input type table); AC power type power consumption: 11VA.

• Input: Type | Refer to input table
• Control output: Relay | NO : 5 A 250 V a.c. (resistive load) NC : 3 A 250 V a.c. (resistive load) Switching Life : 100 thousand times (without load)
• Sampling cycle: 250 ms
• Indication accuracy: ± 0.5 % (refer to input type table)
• AC power type power consumption: 11VA
• Voltage output: ON voltage : 12 V d.c. min OFF voltage : 0.1 V d.c. max Load resistance 600Ω min
• Retransmission output: range : 3.2 ~ 20.8 mA Accuracy: ± 0.2 mA Load resistance 600Ω max
• Alarm output: NO : 5 A 250 V a.c. (resistive load) , NC : 3 A 250 V a.c. (resistive load) Switching Life: 100 thousand times (without load)
• Output operation: Reverse operation, Direct operation
• Reference junction compensation accuracy: ±3.5℃ (0 ~ 50℃)

Technical Characteristics

The DX series is specified by its sensor input, control output, electrical supply, sampling behaviour and accuracy. These values determine how the controller measures temperature and applies its selected control response. Output operation: Reverse operation, Direct operation; Sampling cycle: 250 ms; Reference junction compensation accuracy: ±3.5℃ (0 ~ 50℃); Accuracy: ± 0.2 mA.

Additional technical characteristics include Power supply: 100 – 240 V a.c. (±10 %), 50/60 Hz, 24 V d.c. (±10 %); AC power type power consumption: 11VA; DC power type power consumption: 4.5W.

Design and Construction

The physical design of DX series should be considered together with the installation environment and the available mounting or display arrangement. Input: Type | Refer to input table; Control output: Relay | NO : 5 A 250 V a.c. (resistive load) NC : 3 A 250 V a.c. (resistive load) Switching Life : 100 thousand times (without load); Sampling cycle: 250 ms; Indication accuracy: ± 0.5 % (refer to input type table).

Further construction and environmental details include AC power type power consumption: 11VA; Voltage output: ON voltage : 12 V d.c. min OFF voltage : 0.1 V d.c. max Load resistance 600Ω min; Retransmission output: range : 3.2 ~ 20.8 mA Accuracy: ± 0.2 mA Load resistance 600Ω max.

Integration and Operation

Integration of DX series requires the correct sensor input, control output, supply voltage and configuration settings for the application. Input: Type | Refer to input table; Control output: Relay | NO : 5 A 250 V a.c. (resistive load) NC : 3 A 250 V a.c. (resistive load) Switching Life : 100 thousand times (without load); Sampling cycle: 250 ms; Indication accuracy: ± 0.5 % (refer to input type table).

Additional operating and interface details include AC power type power consumption: 11VA; Voltage output: ON voltage : 12 V d.c. min OFF voltage : 0.1 V d.c. max Load resistance 600Ω min; Retransmission output: range : 3.2 ~ 20.8 mA Accuracy: ± 0.2 mA Load resistance 600Ω max. These values provide a practical reference for wiring, setup and normal operation within the selected configuration.

Selection and Use

Choose DX series by confirming the exact model or configuration against the required operating conditions. The available model information is DX2 | DX3 | DX4 | DX7 | DX9. Model: DX2 | DX3 | DX4 | DX7 | DX9; Input: Type | Refer to input table; Control output: Relay | NO : 5 A 250 V a.c. (resistive load) NC : 3 A 250 V a.c. (resistive load) Switching Life : 100 thousand times (without load); Sampling cycle: 250 ms.

Before installation, confirm Indication accuracy: ± 0.5 % (refer to input type table); AC power type power consumption: 11VA; Voltage output: ON voltage : 12 V d.c. min OFF voltage : 0.1 V d.c. max Load resistance 600Ω min. Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
