Explore performance details, construction highlights, applications, and technical information in one clear overview.

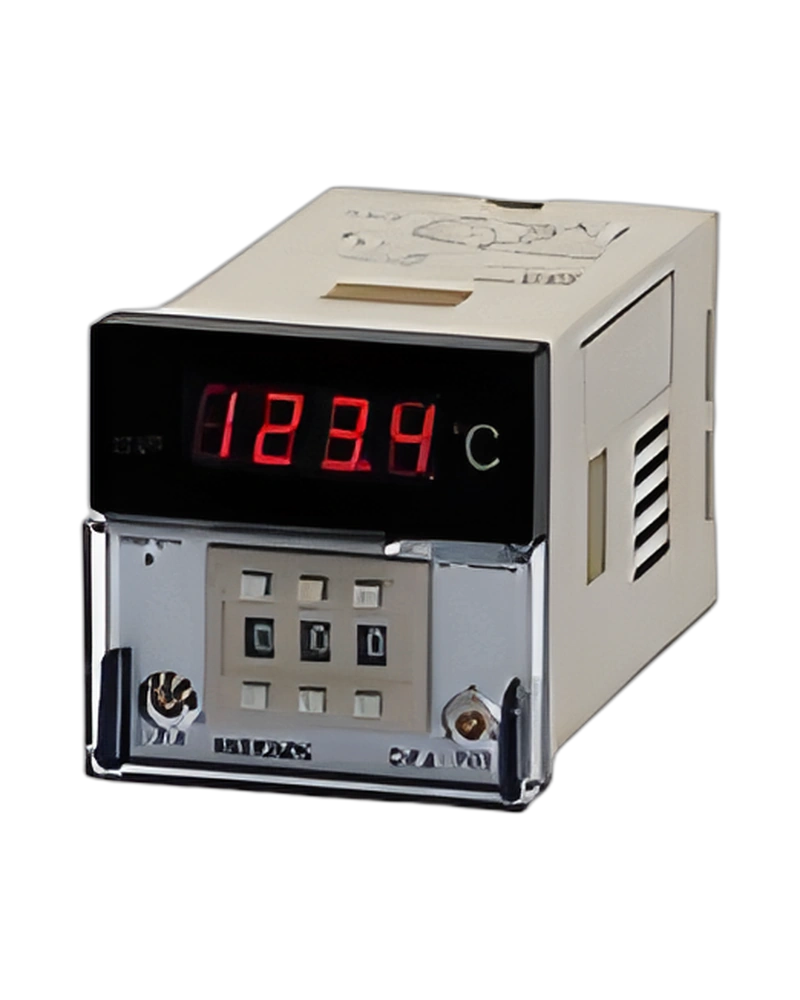

DF4 Digital temperature controller is a Hanyoung NUX temperature controller for monitoring and regulating process temperature. The available configuration is built around the listed sensor inputs, control method and output arrangement, with model information of DF4 Digital temperature controller. Allowable signal source resistance: Thermocouple max. 100 Ω; Control functions and output: Control type | Proportional control; Control output: Contact capacity : 1 C, 250 V a.c. 3 A (resisitive load); Contact capacity: 1 C, 250 V a.c. 3 A (resisitive load).
For panel and process selection, the important characteristics are the input sensor type, control response, power requirements and display or communication options. Input display resolution: 1 ℃; Weight (g): 200; Ambient temperature & humidity: 0 ~ 50 ℃, 35 - 85 % RH (without condensation); Storage temperature: -25 ~ 65 ℃.
Key strengths of the DF4 Digital temperature controller come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.
Input sampling cycle: 500 ms; Control output: Contact capacity : 1 C, 250 V a.c. 3 A (resisitive load); Power voltage: 110 V a.c., 220 V a.c. 50/60 ㎐; Input display resolution: 1 ℃; Power consumption: Max. 3 VA.
The DF4 Digital temperature controller is specified by its sensor input, control output, electrical supply, sampling behaviour and accuracy. These values determine how the controller measures temperature and applies its selected control response. Input sampling cycle: 500 ms; Power voltage: 110 V a.c., 220 V a.c. 50/60 ㎐; Voltage fluctuation rate: ± 10 % of power voltage; Power consumption: Max. 3 VA.
Additional technical characteristics include .
The physical design of DF4 Digital temperature controller should be considered together with the installation environment and the available mounting or display arrangement. Input sampling cycle: 500 ms; Control output: Contact capacity : 1 C, 250 V a.c. 3 A (resisitive load); Power voltage: 110 V a.c., 220 V a.c. 50/60 ㎐; Input display resolution: 1 ℃.
Further construction and environmental details include Power consumption: Max. 3 VA; Allowable signal source resistance: Thermocouple max. 100 Ω; Control functions and output: Control type | Proportional control.
Integration of DF4 Digital temperature controller requires the correct sensor input, control output, supply voltage and configuration settings for the application. Input sampling cycle: 500 ms; Control output: Contact capacity : 1 C, 250 V a.c. 3 A (resisitive load); Power voltage: 110 V a.c., 220 V a.c. 50/60 ㎐; Input display resolution: 1 ℃.
Additional operating and interface details include Power consumption: Max. 3 VA; Allowable signal source resistance: Thermocouple max. 100 Ω; Control functions and output: Control type | Proportional control. These values provide a practical reference for wiring, setup and normal operation within the selected configuration.
Choose DF4 Digital temperature controller by confirming the exact model or configuration against the required operating conditions. The available model information is DF4 Digital temperature controller. Input sampling cycle: 500 ms; Control output: Contact capacity : 1 C, 250 V a.c. 3 A (resisitive load); Power voltage: 110 V a.c., 220 V a.c. 50/60 ㎐; Input display resolution: 1 ℃.
Before installation, confirm Power consumption: Max. 3 VA; Allowable signal source resistance: Thermocouple max. 100 Ω; Control functions and output: Control type | Proportional control. Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
| Specification | Details |
|---|---|
| Input | Thermocouple input | K |
| RTD input | Pt 100 Ω |
| Input sampling cycle | 500 ms |
| Input display resolution | 1 ℃ |
| Allowable signal source resistance | Thermocouple max. 100 Ω |
| Lead wire allowable resistance | RTD (max. 10 Ω. but the resistance among 3 lines should be same) |
| Performance | Display accuracy | ± 1 % of FS ± 1 Digit |
| Control functions and output | Control type | Proportional control |
| Control operation | Reverse action |
| Setting range | Same as range and input code |
| Proportional band | 1 ~ 10 % of FS |
| Manual reset (MR) | -50 ~ +50 % (Output amount) |
| Proportional period | Approx. 20 sec (relay output) |
| Input disconnection detection | The output is OFF when the range is over 10 ℃ |
| Control output | Contact capacity : 1 C, 250 V a.c. 3 A (resisitive load) |
| Power voltage | 110 V a.c., 220 V a.c. 50/60 ㎐ |
| Voltage fluctuation rate | ± 10 % of power voltage |
| Power consumption | Max. 3 VA |
| Ambient temperature & humidity | 0 ~ 50 ℃, 35 - 85 % RH (without condensation) |
| Storage temperature | -25 ~ 65 ℃ |
| Weight (g) | 200 |
| No | Type | Category | Title | File |
| 1 | Manual > Instruction Manual | Temperature Controllers | DF4 Manual |
| Contact capacity | 1 C, 250 V a.c. 3 A (resisitive load) |
