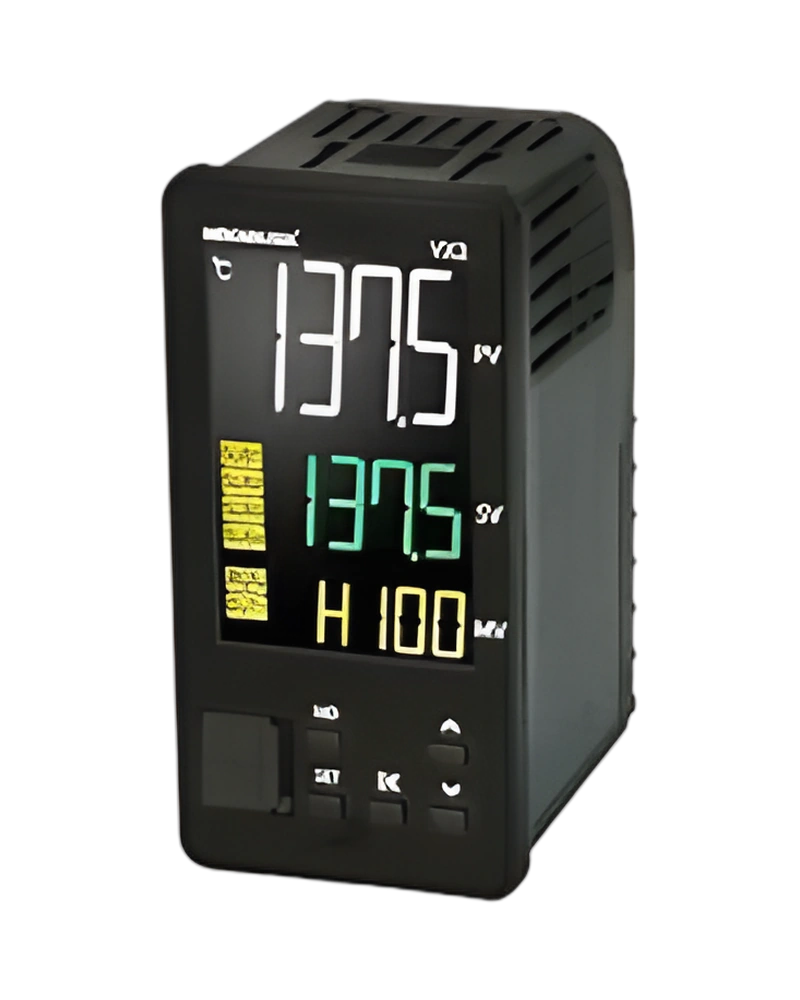

DF2 Digital temperature controller is a Hanyoung NUX temperature controller for monitoring and regulating process temperature. The available configuration is built around the listed sensor inputs, control method and output arrangement, with model information of DF2 Digital temperature controller. Hysteresis: 2 ℃; Control output: Output type | Relay : 1C, 250 V a.c. 5 A; Output acting: Reverse acting (heating); Reference junction compensation accuracy: ±1.5℃ (within -10 ~ 50 ℃).
For panel and process selection, the important characteristics are the input sensor type, control response, power requirements and display or communication options. Display accuracy: ± 1 % of FS ± 1 Digit; Weight (g): 156 g; Insulation Resistance: Min. 20 MΩ, 500 V d.c.; Dielectric strength: 3,000 V a.c., 50/60 Hz for 1 minute (between 1st and 2nd terminal).
Key strengths of the DF2 Digital temperature controller come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.
Input sampling cycle: 500 ms; Control output: Output type | Relay : 1C, 250 V a.c. 5 A; Display accuracy: ± 1 % of FS ± 1 Digit; Power consumption: 2.4 VA; Hysteresis: 2 ℃.
The DF2 Digital temperature controller is specified by its sensor input, control output, electrical supply, sampling behaviour and accuracy. These values determine how the controller measures temperature and applies its selected control response. Input sampling cycle: 500 ms; Power supply: Power supply voltage | 100 - 240V a.c. 50 - 60 Hz; Voltage fluctuation rate: ± 10 % of power supply voltage; Power consumption: 2.4 VA.
Additional technical characteristics include .
The physical design of DF2 Digital temperature controller should be considered together with the installation environment and the available mounting or display arrangement. Ambient temperature & humidity: 0 ~ 50 ℃, 35 ~ 85% RH (without condensation); Storage temperature: -25 ~ 65 ℃; Input sampling cycle: 500 ms; Control output: Output type | Relay : 1C, 250 V a.c. 5 A.
Further construction and environmental details include Display accuracy: ± 1 % of FS ± 1 Digit; Power consumption: 2.4 VA; Hysteresis: 2 ℃.
Integration of DF2 Digital temperature controller requires the correct sensor input, control output, supply voltage and configuration settings for the application. Input sampling cycle: 500 ms; Control output: Output type | Relay : 1C, 250 V a.c. 5 A; Display accuracy: ± 1 % of FS ± 1 Digit; Power consumption: 2.4 VA.
Additional operating and interface details include Hysteresis: 2 ℃; Output acting: Reverse acting (heating); Reference junction compensation accuracy: ±1.5℃ (within -10 ~ 50 ℃). These values provide a practical reference for wiring, setup and normal operation within the selected configuration.
Choose DF2 Digital temperature controller by confirming the exact model or configuration against the required operating conditions. The available model information is DF2 Digital temperature controller. Input sampling cycle: 500 ms; Control output: Output type | Relay : 1C, 250 V a.c. 5 A; Display accuracy: ± 1 % of FS ± 1 Digit; Power consumption: 2.4 VA.
Before installation, confirm Hysteresis: 2 ℃; Output acting: Reverse acting (heating); Reference junction compensation accuracy: ±1.5℃ (within -10 ~ 50 ℃). Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
| Specification | Details |
|---|---|
| Input | Thermocouple input | TC-K |
| Reference junction compensation accuracy | ±1.5℃ (within -10 ~ 50 ℃) |
| RTD input | Pt 100 Ω |
| Allowable wiring resistance | 10 Ω or less, but the resistance between 3 wires should be the same |
| Input sampling cycle | 500 ms |
| Control output | Output type | Relay : 1C, 250 V a.c. 5 A |
| Control type | ON/OFF control, Proportional control (Selective by Internal DIP switch) |
| Proportional band | 1 ~ 10 ℃ |
| Manual reset (MR) | 0 ~ 100 % |
| Control cycle | 20 sec |
| Hysteresis | 2 ℃ |
| Output acting | Reverse acting (heating) |
| Power supply | Power supply voltage | 100 - 240V a.c. 50 - 60 Hz |
| Voltage fluctuation rate | ± 10 % of power supply voltage |
| Insulation Resistance | Min. 20 MΩ, 500 V d.c. |
| Dielectric strength | 3,000 V a.c., 50/60 Hz for 1 minute (between 1st and 2nd terminal) |
| Power consumption | 2.4 VA |
| Display accuracy | ± 1 % of FS ± 1 Digit |
| Ambient temperature & humidity | 0 ~ 50 ℃, 35 ~ 85% RH (without condensation) |
| Storage temperature | -25 ~ 65 ℃ |
| Weight (g) | 156 g |
| No | Type | Category | Title | File |
| 1 | Manual > Instruction Manual | Temperature Controllers | DF2 Instruction manual |
| 1 | CAD > 3D | Temperature Controllers | DF2 (3D) |
| Relay | 1C, 250 V a.c. 5 A |
