This dedicated polyurethane tube is specifically engineered for air applications, offering a reliable and cost-effective solution for pneumatic systems. Designed exclusively for use with compressed air, it provides consistent performance in environments where durability, flexibility, and resistance to environmental factors are essential.
The tube is constructed from ester-based polyurethane, a material known for its excellent mechanical strength and oil resistance. This construction ensures long-term reliability under dynamic pressure conditions while maintaining structural integrity during routine operation.
Standard connection interfaces are not specified in the product data. The tubing features cut marks printed at approximately 500 mm intervals to serve as a guide when cutting; however, these markings are intended solely for reference and do not guarantee precise accuracy.
The tube is rated for maximum operating pressure of 1.0MPa (at 65% RH and 20°C) and can handle a maximum vacuum of -100kPa. It operates effectively within a temperature range of -20 to 70ºC, ensuring performance in both cold and warm environments without risk of freezing.

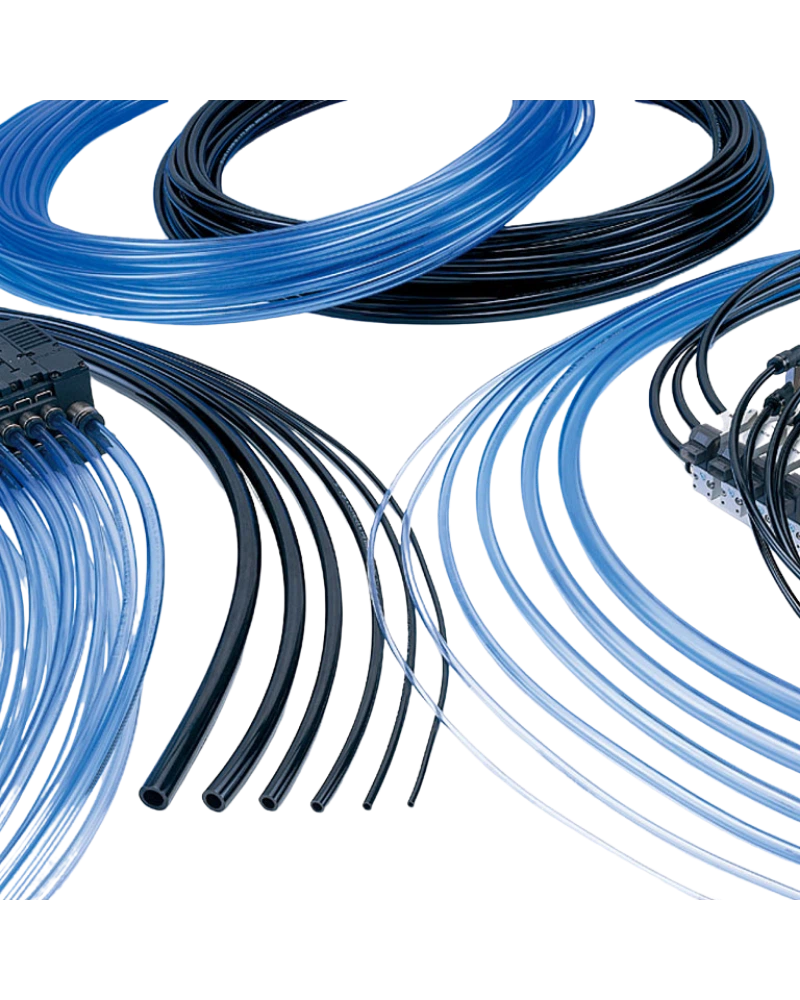

Available in two standard colors: Black and Clear Blue. The color options allow for easy identification during system installation or maintenance. No other size variants or finishes are specified in the product data.
The tubing is designed to be cut using the printed marks at approximately 500 mm intervals as a guide. While this provides a reference point, it is important to note that cutting accuracy is not guaranteed and should be verified during installation.
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Max. operating pressure (65%RH at 20ºC) | 1.0MPa* |
| Max. vacuum | -100kPa |
| Operating temperature range | -20 to 70ºC (No freezing) |
| Material | Made of ester-based polyurethane with excellent mechanical strength and oil resistance |
