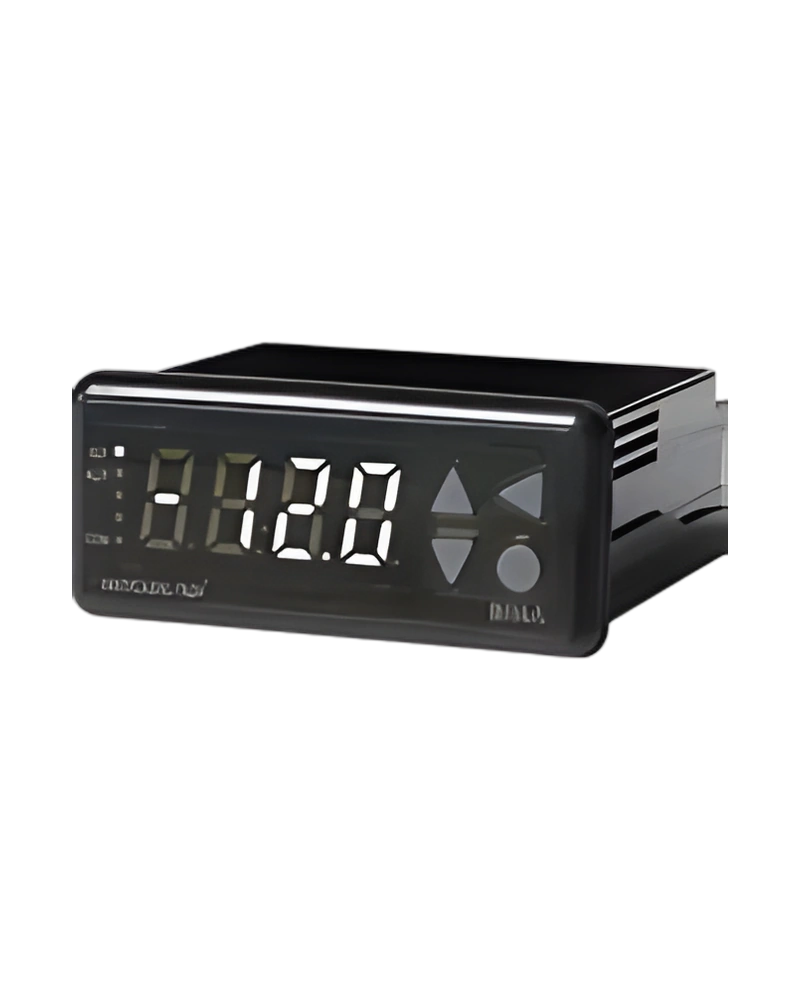

BR6A is a Hanyoung NUX temperature controller for monitoring and regulating process temperature. The available configuration is built around the listed sensor inputs, control method and output arrangement, with model information of Code | Description. Input sensor: Company exclusive sensor (TH - 570N) ※Thermistor; Control output (Main output): Relay output | Contact composition : 1 c, 250 V a.c., 5 A(Resisitive load); Control of output: M | Relay connect output; Power consumption: 7 VA Max (220 V a.c. 60 Hz).
For panel and process selection, the important characteristics are the input sensor type, control response, power requirements and display or communication options. Display accuracy: ± 1 % of FS ± 1 Digit; Setting method: Digital setting with operation buttons; Communication: RS - 485; Protocol: MODBUS ASCII/RTU.
Key strengths of the BR6A come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.
Input sensor: Company exclusive sensor (TH - 570N) ※Thermistor; Control output (Main output): Relay output | Contact composition : 1 c, 250 V a.c., 5 A(Resisitive load); Power supply voltage: P4 | 100 - 240 V a.c. 50/60 Hz; Display accuracy: ± 1 % of FS ± 1 Digit; Power consumption: 7 VA Max (220 V a.c. 60 Hz).
The BR6A is specified by its sensor input, control output, electrical supply, sampling behaviour and accuracy. These values determine how the controller measures temperature and applies its selected control response. Power supply voltage: P4 | 100 - 240 V a.c. 50/60 Hz; Input sensor: Company exclusive sensor (TH - 570N) ※Thermistor; Control output (Main output): Relay output | Contact composition : 1 c, 250 V a.c., 5 A(Resisitive load); Display accuracy: ± 1 % of FS ± 1 Digit.
Additional technical characteristics include Power consumption: 7 VA Max (220 V a.c. 60 Hz); Communication: RS - 485; Control of output: M | Relay connect output.
The physical design of BR6A should be considered together with the installation environment and the available mounting or display arrangement. Weight: 120 g; Ambient temperature: 0 ~ 50 ℃; Ambient humidity: 35~85 % RH(with no condensation); Input sensor: Company exclusive sensor (TH - 570N) ※Thermistor.
Further construction and environmental details include Control output (Main output): Relay output | Contact composition : 1 c, 250 V a.c., 5 A(Resisitive load); Power supply voltage: P4 | 100 - 240 V a.c. 50/60 Hz; Display accuracy: ± 1 % of FS ± 1 Digit.
Integration of BR6A requires the correct sensor input, control output, supply voltage and configuration settings for the application. Input sensor: Company exclusive sensor (TH - 570N) ※Thermistor; Control output (Main output): Relay output | Contact composition : 1 c, 250 V a.c., 5 A(Resisitive load); Power supply voltage: P4 | 100 - 240 V a.c. 50/60 Hz; Display accuracy: ± 1 % of FS ± 1 Digit.
Additional operating and interface details include Power consumption: 7 VA Max (220 V a.c. 60 Hz); Communication: RS - 485; Control of output: M | Relay connect output. These values provide a practical reference for wiring, setup and normal operation within the selected configuration.
Choose BR6A by confirming the exact model or configuration against the required operating conditions. The available model information is Code | Description. Model: Code | Description; Option: 0 | None; Input sensor: Company exclusive sensor (TH - 570N) ※Thermistor; Control output (Main output): Relay output | Contact composition : 1 c, 250 V a.c., 5 A(Resisitive load).
Before installation, confirm Power supply voltage: P4 | 100 - 240 V a.c. 50/60 Hz; Display accuracy: ± 1 % of FS ± 1 Digit; Power consumption: 7 VA Max (220 V a.c. 60 Hz). Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
| Specification | Details |
|---|---|
| Power consumption | 7 VA Max (220 V a.c. 60 Hz) |
| Input sensor | Company exclusive sensor (TH - 570N) ※Thermistor |
| Display accuracy | ± 1 % of FS ± 1 Digit |
| Control output (Main output) | Relay output | Contact composition : 1 c, 250 V a.c., 5 A(Resisitive load) |
| SSR | 10 - 15 V d.c. More than (resistive load 500 Ω min) |
| Alarm/Defrost | Relay | Contact composition : 1 c, 250 Va.c., 5 A(Resistive load) |
| Control action | Proportional control (P control), ON/OFF control |
| Setting method | Digital setting with operation buttons |
| Other function | Deforsting timer, alarm function, heating/cooling control |
| Communication | RS - 485 |
| Protocol | MODBUS ASCII/RTU |
| speed | 4800, 9600, 19200 bps |
| Ambient temperature | 0 ~ 50 ℃ |
| Resistance between wires | Below 10 Ω for each wire |
| Ambient humidity | 35~85 % RH(with no condensation) |
| Weight | 120 g |
| Model | Code | Description |
| BR6A- | - | Digital temperature controller selective controller type in parameter (proportional or ON/OFF controller) |
| Input | N | Company exclusive sensor(TH－570N) ※Thermistor |
| Control of output | M | Relay connect output |
| S | Voltage pulse output (voltage pulse output for SSR driving) |
| Option | 0 | None |
| 1 | Communication (RS - 485, MODBUS ASCII/RTU) |
| Power supply voltage | P4 | 100 - 240 V a.c. 50/60 Hz |
| LED color | W | White LED display |
| R | Red LED display |
| Name | Sensory type | Range(℃) | Accuracy | Remark |
| TH 570N | Thermistor | -50.0~150.0 | ±1.5℃ | Max ± 3.5℃ temperature deviation may happen (± 1.5℃ sensor deviation & ± 2℃ controller deviation) |
| No | Type | Category | Title | File |
| 1 | Manual > Instruction Manual | Temperature Controllers | BR6A Instruction manual |
| 1 | CAD > 2D | Temperature Controllers | BR6A (2D) |
| 2 | CAD > 3D | Temperature Controllers | BR6A (3D) |
| 1 | Software > Program | ALL | Communication Protocol Examples |
| 2 | Software > Program | ALL | TCS Integrated Communication Program Installation file |
| 3 | Software > Communication data | ALL | TCS Integrated Communication Program Manual(EN) |
| Contact composition | 1 c, 250 V a.c., 5 A(Resisitive load) |
| Contact composition | 1 c, 250 Va.c., 5 A(Resistive load) |
