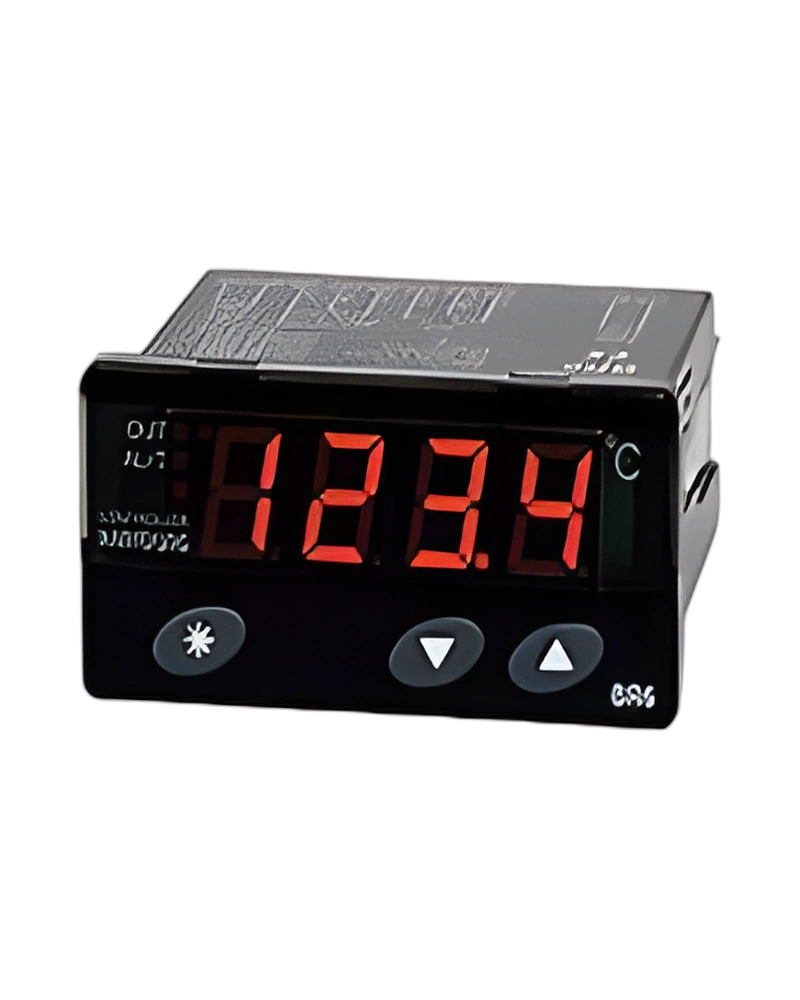

BR6 is a Hanyoung NUX temperature controller for monitoring and regulating process temperature. The available configuration is built around the listed sensor inputs, control method and output arrangement, with model information of BR6. Input sensor: Company exclusive sensor (TH-540N) ※ Thermistor (NTC); Control output: Relay output | ▪Contact composition : 1 c ▪250 V a.c. ▪5 A (Resistance load); Voltage Pulse Output: 10 - 15 V d.c. (load resistance 500 Ω or more); Electric current Output: 4-20 mA d.c. (load resistance 500 Ω or less).
For panel and process selection, the important characteristics are the input sensor type, control response, power requirements and display or communication options. Display accuracy: ± 1 % of FS ± 1 Digit; Setting method: Digital method by setting, increasing and decreasing keys; Weight: 110 g; Ambient temperature: 0 ~ 50 ℃.
Key strengths of the BR6 come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.
Input sensor: Company exclusive sensor (TH-540N) ※ Thermistor (NTC); Control output: Relay output | ▪Contact composition : 1 c ▪250 V a.c. ▪5 A (Resistance load); AC power supply voltage: 100 - 240 V ~ 50/60 Hz; Display accuracy: ± 1 % of FS ± 1 Digit; AC power consumption: 10.0 VA or less.
The BR6 is specified by its sensor input, control output, electrical supply, sampling behaviour and accuracy. These values determine how the controller measures temperature and applies its selected control response. AC power supply voltage: 100 - 240 V ~ 50/60 Hz; DC power supply voltage: 10 - 24V d.c. , Class2; AC power consumption: 10.0 VA or less; DC power consumption: 2.0 VA or less.
Additional technical characteristics include .
The physical design of BR6 should be considered together with the installation environment and the available mounting or display arrangement. Ambient humidity: 35 ~ 85 % RH (with no condenssation); Input sensor: Company exclusive sensor (TH-540N) ※ Thermistor (NTC); Control output: Relay output | ▪Contact composition : 1 c ▪250 V a.c. ▪5 A (Resistance load); AC power supply voltage: 100 - 240 V ~ 50/60 Hz.
Further construction and environmental details include Display accuracy: ± 1 % of FS ± 1 Digit; AC power consumption: 10.0 VA or less; Voltage Pulse Output: 10 - 15 V d.c. (load resistance 500 Ω or more).
Integration of BR6 requires the correct sensor input, control output, supply voltage and configuration settings for the application. Input sensor: Company exclusive sensor (TH-540N) ※ Thermistor (NTC); Control output: Relay output | ▪Contact composition : 1 c ▪250 V a.c. ▪5 A (Resistance load); AC power supply voltage: 100 - 240 V ~ 50/60 Hz; Display accuracy: ± 1 % of FS ± 1 Digit.
Additional operating and interface details include AC power consumption: 10.0 VA or less; Voltage Pulse Output: 10 - 15 V d.c. (load resistance 500 Ω or more); Electric current Output: 4-20 mA d.c. (load resistance 500 Ω or less). These values provide a practical reference for wiring, setup and normal operation within the selected configuration.
Choose BR6 by confirming the exact model or configuration against the required operating conditions. The available model information is BR6. Input sensor: Company exclusive sensor (TH-540N) ※ Thermistor (NTC); Control output: Relay output | ▪Contact composition : 1 c ▪250 V a.c. ▪5 A (Resistance load); AC power supply voltage: 100 - 240 V ~ 50/60 Hz; Display accuracy: ± 1 % of FS ± 1 Digit.
Before installation, confirm AC power consumption: 10.0 VA or less; Voltage Pulse Output: 10 - 15 V d.c. (load resistance 500 Ω or more); Electric current Output: 4-20 mA d.c. (load resistance 500 Ω or less). Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
| Specification | Details |
|---|---|
| Input sensor | Company exclusive sensor (TH-540N) ※ Thermistor (NTC) |
| Input range | -40.0 ~ 90.0 ℃ |
| Display accuracy | ± 1 % of FS ± 1 Digit |
| Control output | Relay output | â–ªContact composition : 1 c â–ª250 V a.c. â–ª5 A (Resistance load) |
| Voltage Pulse Output | 10 - 15 V d.c. (load resistance 500 Ω or more) |
| Electric current Output | 4-20 mA d.c. (load resistance 500 Ω or less) |
| Auxiliary/ Defrost | Relay | â–ªContact composition : 1 c â–ª250 V a.c. â–ª5 A (Resistive load) |
| Control operation | Selection of reverse action (heating)/ direct action (cooling) with parameters |
| Setting method | Digital method by setting, increasing and decreasing keys |
| Other function | Deforsting timer, Alarm function |
| Ambient temperature | 0 ~ 50 ℃ |
| Resistance between wires | Below 10 Ω for each wire |
| Ambient humidity | 35 ~ 85 % RH (with no condenssation) |
| Weight | 110 g |
| AC power supply voltage | 100 - 240 V ~ 50/60 Hz |
| DC power supply voltage | 10 - 24V d.c. , Class2 |
| voltage change rate | ± 10 % of supply voltage |
| AC power consumption | 10.0 VA or less |
| DC power consumption | 2.0 VA or less |
| No | Type | Category | Title | File |
| 1 | Manual > Instruction Manual | Temperature Controllers | BR6 Instruction Manual |
| 1 | CAD > 2D | Temperature Controllers | BR6,ED6,HD6 (2D) |
| 2 | CAD > 3D | Temperature Controllers | BR6 (3D) |
| No | Mark | Category | Title | File |
| 1 | Certification > CE | Temperature Controllers | BR6 (LVD) |
| 2 | Certification > CE | Temperature Controllers | ED6, BR6 (EMC) |
| â–ªContact composition | 1 c â–ª250 V a.c. â–ª5 A (Resistance load) |
| â–ªContact composition | 1 c â–ª250 V a.c. â–ª5 A (Resistive load) |
